Shunt trip 230-415V AC 110-130V DC MZ203
EAN
3250614562037
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules1
Main electrical features
-
Rated operational voltage Ue230 / 415 V
-
Type of supply voltageAC/DC
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage4000 V
-
DC control voltage110 / 130 V
-
Command voltage AC230 / 415 V
-
Rated operational voltage in DC110 / 130 V
Electric current
-
Imin = f (U = 230 V AC)14 mA
-
Imin=f(U=415V AC) for power circuit32 mA
Dimensions
-
Depth of installed product68 mm
-
Height of installed product83 mm
-
Width of installed product18 mm
Power
-
Inrush power absorbed15 VA
-
Total power loss under IN25.3 W
Tripping
-
Time of response when opening200 ms
Installation, mounting
-
Tightening torque1,2Nm
Connection
-
Connection cross-sect. flexible conductor6mm²
-
Connection cross-sect. rigid cable10mm²
Equipment
-
Quantity of NC contacts0
-
Quantity of NO contacts0
-
Quantity of INV contacts0
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-25…60 °C
-
Air humidity protection95%
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-
User brochure
Onekonekt_Brochure
PDF2 MB
Safe and Simple for All Applications
PDF6 MB -

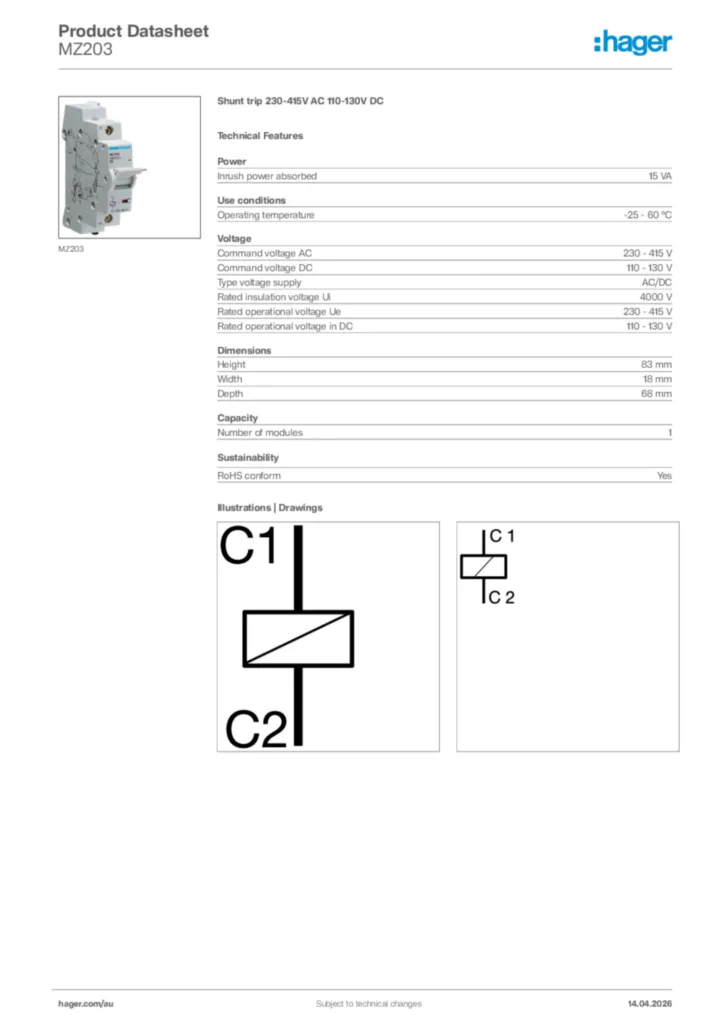

Product data sheet
