ACB HW1 42kA 1000A 3P Drawout TU sentinel LSI, VCVC HE1N310DCEVAAAAAAA
EAN
3250610075920
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Rating plug 3 products available -
Motor operator 1 products available -
Shunt release 3 products available -
Closing coil 4 products available -
Under voltage coil 2 products available -
Auxiliaries contact block 3 products available
Complete your system
-
HWY218HMechanical interlock 1, 5m cable set
-
HWY225HPlate for mechanical interlock HW1 DO Safety (Type 2S) - 1 Plate/ACB (MI)
-
HWY228HMechanical interlock 3m cable set
-
HWY238HRacking interlock door open HW1 (RI)
-
HWY269HOFF locking with padlock HW1 (OLP)
-
HWY270HChassis locking Ronis type HW1 (CL)
-
HWY360HDummy for No OFF lock button HW1
Technical properties
Electric current
-
Rated current1000 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-242 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-242 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-242 kA
Endurance
-
Electric endurance in number of cycles6000
-
Number of mechanical operations25000
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
-
Type voltage supplyAC
Resistance
-
Internal resistance50 µΩ
Architecture
-
Number of poles3
-
Number of protected poles3
-
Device construction typeDrawout
-
Type of pole3P3D
Tripping
-
Time of response when closing45 ms
Power
-
Total power loss under IN110,20 W
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

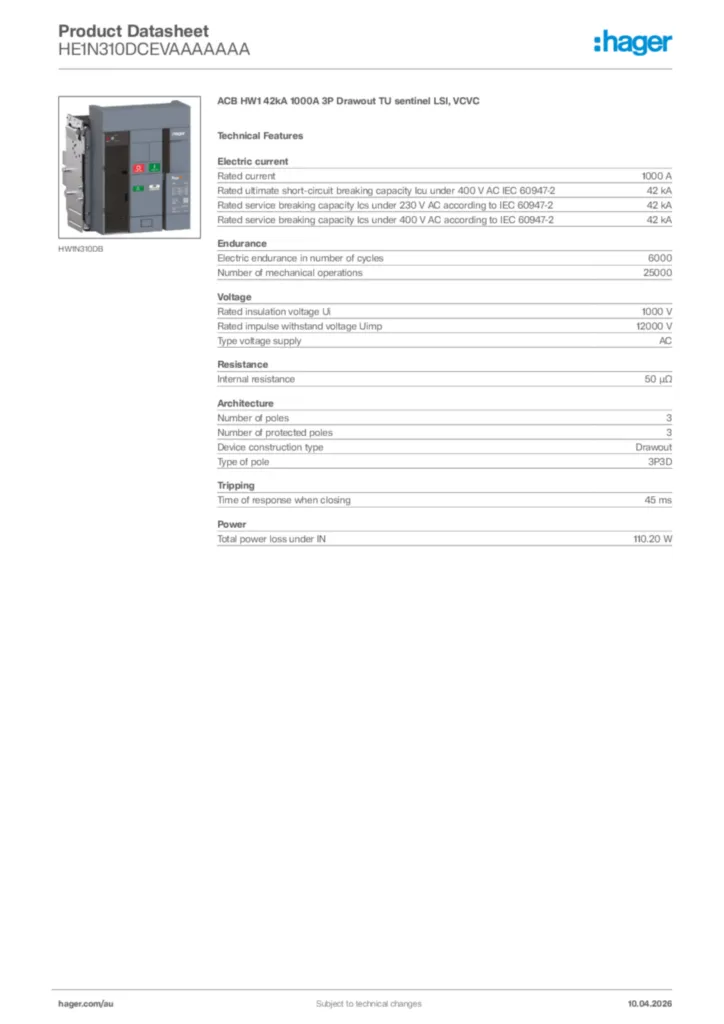

Hager Product data sheet HE1N310DCEVAAAAAAA
