Hager The Hager SH shunt trip coil 200-250 V AC/DC enables remote tripping of compatible circuit breakers for emergency-off and automation control. Dual-voltage operation, 200 VA inrush with only 5 VA running, and IP4X robustness suit demanding panels. Rated Ui 480 V and 6 kV impulse withstand enhance safety. Wide -25 to 70 °C range ensures reliable service in residential, commercial, and industrial installations.
EAN
3250613232672
Packaging
1 Piece
Shunt trip coil 200-250V AC/DC (SH) Ui 480V Uimp 6kV IP4X HWX023H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 40 products available
Suitable with
-
HE1M308FCDVAAAAAAAACB HW1 55kA 800A 3P Fixed TU sentinel LSI, VCVC
-
HE1M310DCEVAAAAAAAACB HW1 55kA 1000A 3P Drawout TU sentinel LSI, VCVC
-
HE1M312DCFVAAAAAAAACB HW1 55kA 1250A 3P Drawout TU sentinel LSI, VCVC
-
HE1M312FCFVAAAAAAAACB HW1 55kA 1250A 3P Fixed TU sentinel LSI, VCVC
-
HE1M316DCGVAAAAAAAACB HW1 55kA 1600A 3P Drawout TU sentinel LSI, VCVC
-
HE1M316FCGVAAAAAAAACB HW1 55kA 1600A 3P Fixed TU sentinel LSI, VCVC
-
HE1N306DCCVAAAAAAAACB HW1 42kA 630A 3P Drawout TU sentinel LSI, VCVC
-
HE1N306FCCVAAAAAAAACB HW1 42kA 630A 3P Fixed TU sentinel LSI, VCVC
-
HE1N308DCDVAAAAAAAACB HW1 42kA 800A 3P Drawout TU sentinel LSI, VCVC
-
HE1N308FCDVAAAAAAAACB HW1 42kA 800A 3P Fixed TU sentinel LSI, VCVC
-
HE1N310DCEVAAAAAAAACB HW1 42kA 1000A 3P Drawout TU sentinel LSI, VCVC
-
HE1N310FCEVAAAAAAAACB HW1 42kA 1000A 3P Fixed TU sentinel LSI, VCVC
-
HE1N408DCDVAAAAAAAACB HW1 42kA 800A 4P Drawout TU sentinel LSI, VCVC
-
HE1N408FCDVAAAAAAAACB HW1 42kA 800A 4P Fixed TU sentinel LSI, VCVC
-
HE2E316FEGVAAAAAAAACB HW2 66kA 1600A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2E320DCHVAAAAAAAACB HW2 66kA 2000A 3P Drawout TU sentinel LSI, VCVC
-
HE2E320FCHVAAAAAAAACB HW2 66kA 2000A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325DCIVAAAAAAAACB HW2 66kA 2500A 3P Drawout TU sentinel LSI, VCVC
-
HE2E325FCIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325FEIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel Energy LSI, VCVC
Technical properties
Power
-
Inrush power absorbed200 VA
-
Operating consumption5 VA
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Voltage
-
Command voltage AC200 - 250 V
-
Command voltage DC200 - 250 V
-
Rated insulation voltage Ui480 V
-
Rated impulse withstand voltage Uimp6000 V
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

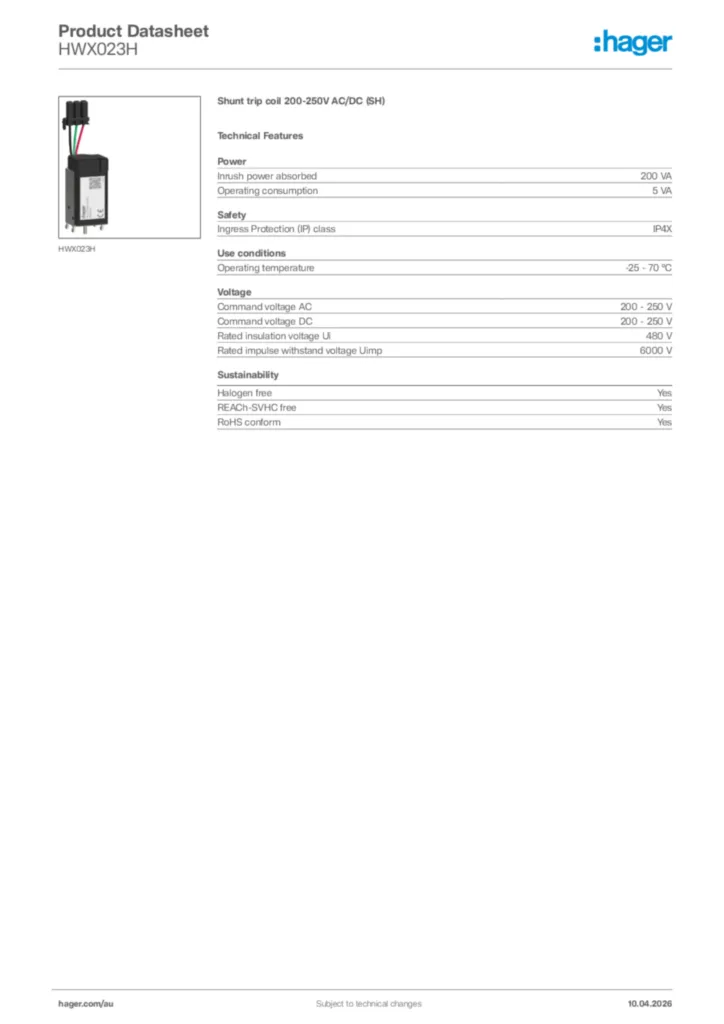

Hager Product data sheet HWX023H
Shunt trip coil 200-250V AC/DC (SH)
PDF -
Installation manual
Installation manual
hw+ Air circuit breakers HW1
PDF56,16 MB
Installation manual
hw+ Air circuit breakers HW2 / HW4 / HW6
PDF57,62 MB
Installation manual International 2025-06-13
PDF2,57 MB
Installation manual International 2025-06-13
PDF25,18 MB
Safety instructions
-
PDF159,14 kB -
Manual
Technical catalogue
hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6
PDF57,96 MB -
