Hager The Hager Closing Coil 48-60 V AC/DC enables remote closing of compatible circuit breakers for automation and load management. Fast actuation with 250 VA inrush and low 5 VA holding consumption. Robust and safe: Ui 480 V, Uimp 6 kV, overvoltage category II, IP4X, and -25 to +70°C operating range. Ideal for centralized control in residential and commercial panels.
EAN
3250613232702
Packaging
1 Piece
Closing coil (CC) 48-60V AC/DC, IP4X, Ui 480V, Uimp 6kV HWX026H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Power
-
Inrush power absorbed250 VA
-
Operating consumption5 VA
-
Total power loss under IN5 W
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Voltage
-
Command voltage AC48 - 60 V
-
Command voltage DC48 - 60 V
-
Rated insulation voltage Ui480 V
-
Rated impulse withstand voltage Uimp6000 V
-
Overvoltage category according to IEC 60947-12
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

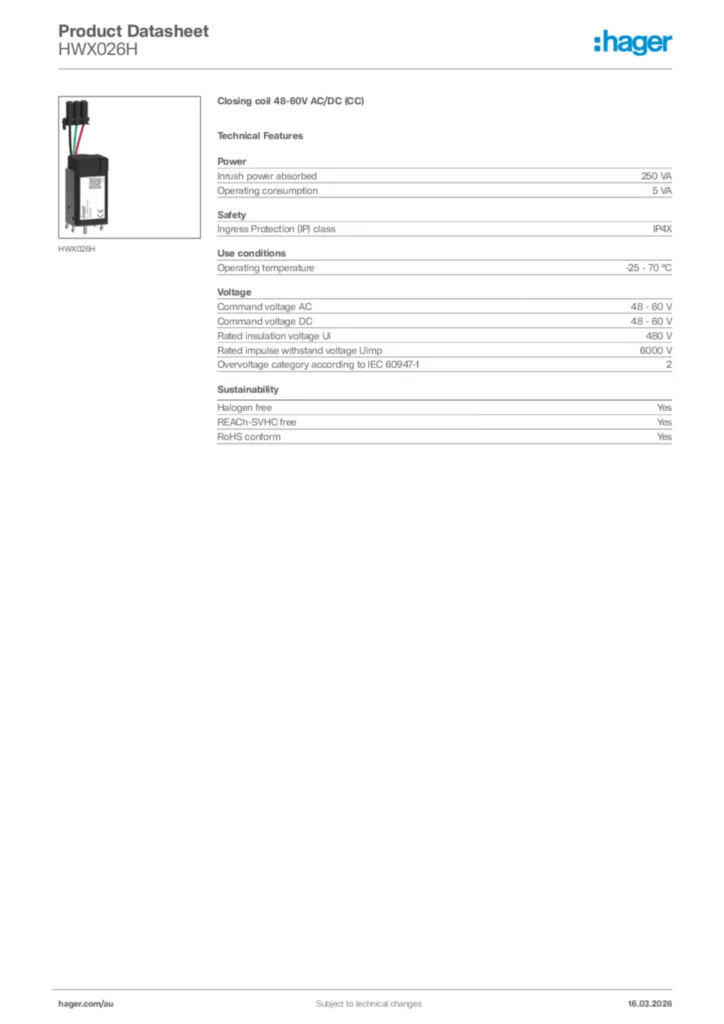

Hager Product data sheet HWX026H
Closing coil 48-60V AC/DC (CC)
PDF -
Installation manual
Installation manual
hw+ Air circuit breakers HW1
PDF56,16 MB
Installation manual
hw+ Air circuit breakers HW2 / HW4 / HW6
PDF57,62 MB
Installation manual International 2025-06-13
PDF2,57 MB
Installation manual International 2025-06-13
PDF25,18 MB
