Hager The Hager Spring Charging Motor 48-60 V DC HW1 (MO) provides automatic charging of breaker operating springs for rapid, remote-ready closing. Powered by 48-60 V DC, it draws 4.8 A and offers high robustness with 450 V insulation voltage and 6 kV impulse withstand. Its -25 to 70 °C operating range suits demanding switchboard environments, enhancing reliability and uptime.
EAN
3250613235437
Packaging
1 Piece
Spring charging motor 48-60 V DC 4.8 A HW1 HWX702H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current4,80 A
Voltage
-
Type voltage supplyDC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage DC48 - 60 V
Use conditions
-
Operating temperature-25 - 70 °C
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

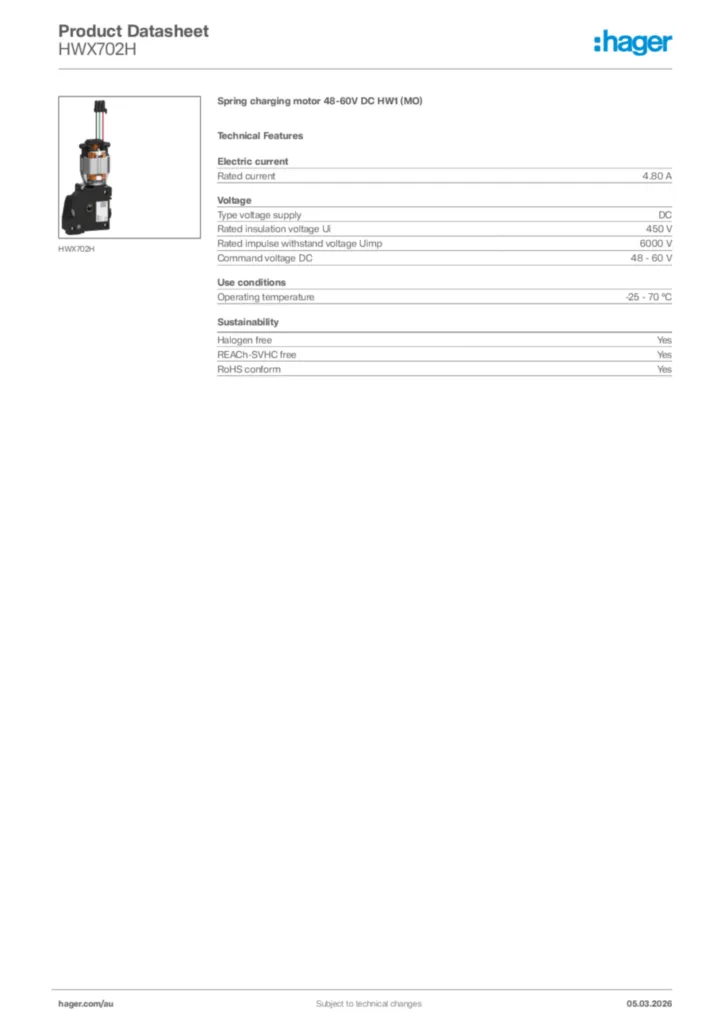

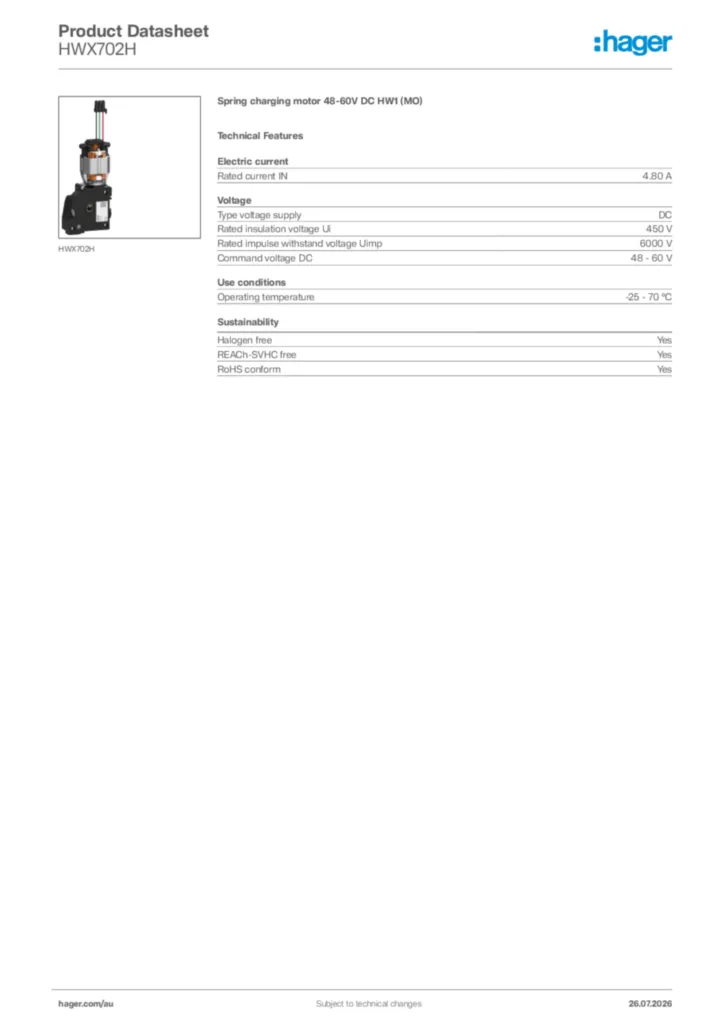

Hager Product data sheet HWX702H
Spring charging motor 48-60V DC HW1 (MO)
