Hager The Hager SH shunt trip coil 100-130 V AC/DC enables remote tripping of compatible circuit breakers for emergency-off and safety interlocking. Wide dual-voltage control, 200 VA inrush with low 5 VA holding, and Ui 480 V with 6 kV Uimp ensure reliable operation. IP4X and -25 to 70 °C suit harsh panels. Ideal for residential, commercial, and industrial switchboards.
EAN
3250613232665
Packaging
1 Piece
Shunt trip coil 100-130V AC/DC IP4X 200VA inrush Ui 480V Uimp 6kV HWX022H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 40 products available
Suitable with
-
HE1M308FCDVAAAAAAAACB HW1 55kA 800A 3P Fixed TU sentinel LSI, VCVC
-
HE1M310DCEVAAAAAAAACB HW1 55kA 1000A 3P Drawout TU sentinel LSI, VCVC
-
HE1M312DCFVAAAAAAAACB HW1 55kA 1250A 3P Drawout TU sentinel LSI, VCVC
-
HE1M312FCFVAAAAAAAACB HW1 55kA 1250A 3P Fixed TU sentinel LSI, VCVC
-
HE1M316DCGVAAAAAAAACB HW1 55kA 1600A 3P Drawout TU sentinel LSI, VCVC
-
HE1M316FCGVAAAAAAAACB HW1 55kA 1600A 3P Fixed TU sentinel LSI, VCVC
-
HE1N306DCCVAAAAAAAACB HW1 42kA 630A 3P Drawout TU sentinel LSI, VCVC
-
HE1N306FCCVAAAAAAAACB HW1 42kA 630A 3P Fixed TU sentinel LSI, VCVC
-
HE1N308DCDVAAAAAAAACB HW1 42kA 800A 3P Drawout TU sentinel LSI, VCVC
-
HE1N308FCDVAAAAAAAACB HW1 42kA 800A 3P Fixed TU sentinel LSI, VCVC
-
HE1N310DCEVAAAAAAAACB HW1 42kA 1000A 3P Drawout TU sentinel LSI, VCVC
-
HE1N310FCEVAAAAAAAACB HW1 42kA 1000A 3P Fixed TU sentinel LSI, VCVC
-
HE1N408DCDVAAAAAAAACB HW1 42kA 800A 4P Drawout TU sentinel LSI, VCVC
-
HE1N408FCDVAAAAAAAACB HW1 42kA 800A 4P Fixed TU sentinel LSI, VCVC
-
HE2E316FEGVAAAAAAAACB HW2 66kA 1600A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2E320DCHVAAAAAAAACB HW2 66kA 2000A 3P Drawout TU sentinel LSI, VCVC
-
HE2E320FCHVAAAAAAAACB HW2 66kA 2000A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325DCIVAAAAAAAACB HW2 66kA 2500A 3P Drawout TU sentinel LSI, VCVC
-
HE2E325FCIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325FEIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel Energy LSI, VCVC
Technical properties
Power
-
Inrush power absorbed200 VA
-
Operating consumption5 VA
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Voltage
-
Command voltage AC100 - 130 V
-
Command voltage DC100 - 130 V
-
Rated insulation voltage Ui480 V
-
Rated impulse withstand voltage Uimp6000 V
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

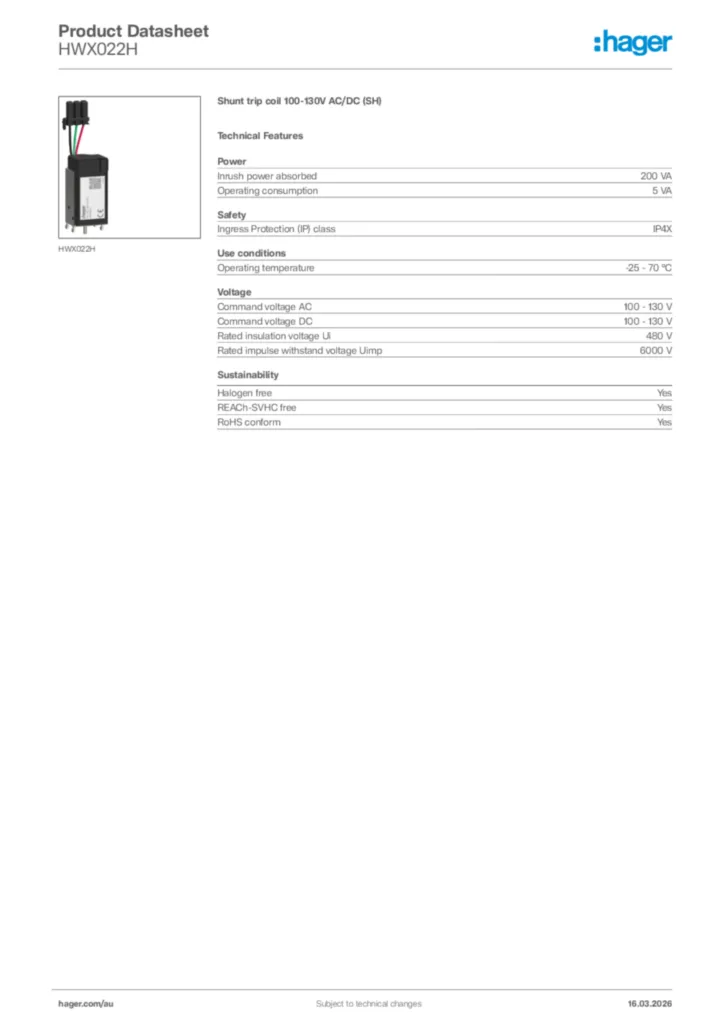

Hager Product data sheet HWX022H
