    Hager The Hager HW1 draw-out 3-pole front terminal connection (top/bottom) supports up to 1600 A for heavy-duty three-phase distribution. Front access with top or bottom entry simplifies wiring and upgrades, while the withdrawable design speeds maintenance and limits downtime. Copper cable interfaces deliver low-resistance, durable connections—ideal for industrial and large commercial switchboards and panels.
    EAN
    3250613235482
    Packaging
    1 Piece
    • HW+ Accessories

    Front Terminal Connection Top/Bottom HW1 Draw-out 3P 1600A Copper HWY044H

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Front Terminal Connection Top/Bottom HW1 Draw-out 3P 1600A Copper

    HWY044H

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Suitable with 6 products available

    Suitable with

    • HE1M310DCEVAAAAAAA

      ACB HW1 55kA 1000A 3P Drawout TU sentinel LSI, VCVC
      EUR 0.00  / *
    • HE1M312DCFVAAAAAAA

      ACB HW1 55kA 1250A 3P Drawout TU sentinel LSI, VCVC
      EUR 0.00  / *
    • HE1M316DCGVAAAAAAA

      ACB HW1 55kA 1600A 3P Drawout TU sentinel LSI, VCVC
      EUR 0.00  / *
    • HE1N306DCCVAAAAAAA

      ACB HW1 42kA 630A 3P Drawout TU sentinel LSI, VCVC
      EUR 0.00  / *
    • HE1N308DCDVAAAAAAA

      ACB HW1 42kA 800A 3P Drawout TU sentinel LSI, VCVC
      EUR 0.00  / *
    • HE1N310DCEVAAAAAAA

      ACB HW1 42kA 1000A 3P Drawout TU sentinel LSI, VCVC
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      1600 A
    Archi­tec­ture
    • Number of poles
      3
    • Type of pole
      3P
    Cable
    • Cable material
      Copper

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP document en-GB 2025-04-04
    PDF
    17,48 MB
    REACH declaration HWY044H
    PDF
    Hager RoHS report HWY044H
    PDF

    Downloads

    • Product image

      Image HWY044H | Hager Australia

      Product Image HWY044H

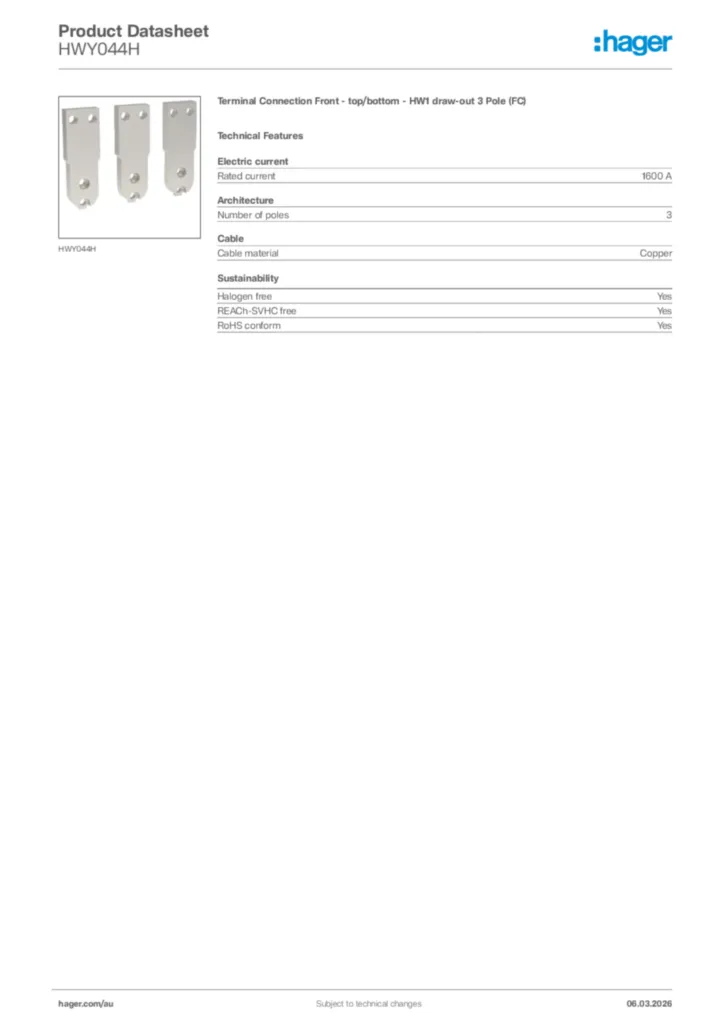

    • Product datasheet

      Image Hager Product data sheet HWY044H | Hager Australia

      Hager Product data sheet HWY044H

      Terminal Connection Front - top/bottom - HW1 draw-out 3 Pole (FC)

      PDF

    • Installation manual

      Image Installation manual | Hager Australia

      Installation manual

      hw+ Air circuit breakers HW1

      PDF
      56,16 MB
      Image Installation manual International 2021-06-04 | Hager Australia

      Installation manual International 2021-06-04

      PDF
      3,59 MB
      Image Safety instructions | Hager Australia

      Safety instructions

      -

      PDF
      159,14 kB

    • Manual

      Image Technical catalogue | Hager Australia

      Technical catalogue

      hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6

      PDF
      57,96 MB

    • Declaration of conformity

      Image EU Declaration of Conformity​ | Hager Australia

      EU Declaration of Conformity​

      Declaration of conformity en-GB 2025-11-04

      PDF
      413,59 kB
      Image UKCA Declaration of Conformity​ | Hager Australia

      UKCA Declaration of Conformity​

      Declaration of conformity en-GB 2025-11-04

      PDF
      418,76 kB
