Hager The Hager HW1 (AX) auxiliary switch provides reliable status signalling and control for modular devices. It features 1 changeover contact rated 4 A at 230 V AC-15, Ui 690 V, Uimp 1.5 kV, for AC/DC, 50-60 Hz. Quick click mounting speeds installation. Durable with 15,000 mechanical and 3,025 electrical cycles. Operates -25 to 70 °C, IP4X. Zero power loss at In for efficient, safe panel integration.
EAN
3250613232801
Packaging
1 Piece
Auxiliary switch 1 changeover AC-15 4A 230V AC/DC click mounting IP4X HWX040H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 14 products available
Suitable with
-
HE1M308FCDVAAAAAAAACB HW1 55kA 800A 3P Fixed TU sentinel LSI, VCVC
-
HE1M310DCEVAAAAAAAACB HW1 55kA 1000A 3P Drawout TU sentinel LSI, VCVC
-
HE1M312DCFVAAAAAAAACB HW1 55kA 1250A 3P Drawout TU sentinel LSI, VCVC
-
HE1M312FCFVAAAAAAAACB HW1 55kA 1250A 3P Fixed TU sentinel LSI, VCVC
-
HE1M316DCGVAAAAAAAACB HW1 55kA 1600A 3P Drawout TU sentinel LSI, VCVC
-
HE1M316FCGVAAAAAAAACB HW1 55kA 1600A 3P Fixed TU sentinel LSI, VCVC
-
HE1N306DCCVAAAAAAAACB HW1 42kA 630A 3P Drawout TU sentinel LSI, VCVC
-
HE1N306FCCVAAAAAAAACB HW1 42kA 630A 3P Fixed TU sentinel LSI, VCVC
-
HE1N308DCDVAAAAAAAACB HW1 42kA 800A 3P Drawout TU sentinel LSI, VCVC
-
HE1N308FCDVAAAAAAAACB HW1 42kA 800A 3P Fixed TU sentinel LSI, VCVC
-
HE1N310DCEVAAAAAAAACB HW1 42kA 1000A 3P Drawout TU sentinel LSI, VCVC
-
HE1N310FCEVAAAAAAAACB HW1 42kA 1000A 3P Fixed TU sentinel LSI, VCVC
-
HE1N408DCDVAAAAAAAACB HW1 42kA 800A 4P Drawout TU sentinel LSI, VCVC
-
HE1N408FCDVAAAAAAAACB HW1 42kA 800A 4P Fixed TU sentinel LSI, VCVC
Technical properties
Electric current
-
Rated current 230 V AC154 A
Connectivity
-
Mounting typeClick mounting
Connection
-
Type of contacts1x changeover
Voltage
-
Rated insulation voltage Ui690 V
-
Rated impulse withstand voltage Uimp1500 V
-
Type voltage supplyAC/DC
Frequency
-
Frequency50 - 60 Hz
Endurance
-
Number of mechanical operations15000
-
Electric endurance in number of cycles3025
Use conditions
-
Operating temperature-25 - 70 °C
-
Storage/transport temperature-40 - 70 °C
Power
-
Total power loss under IN0
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

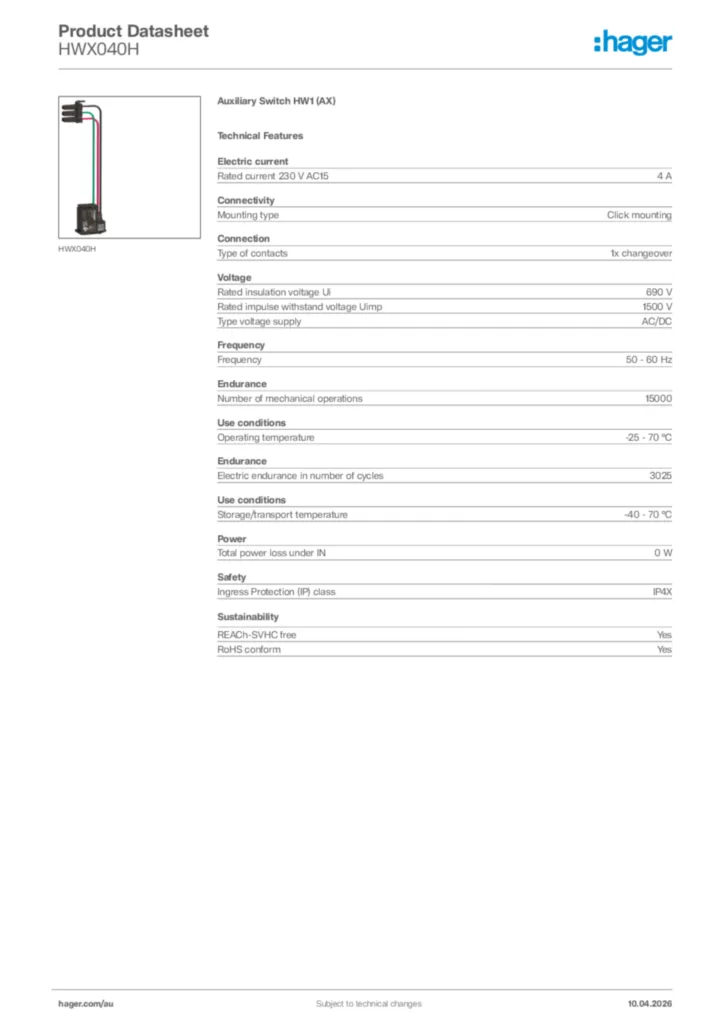

Hager Product data sheet HWX040H
Auxiliary Switch HW1 (AX)
PDF -
Installation manual
6LE007407Aa_AX_Auxiliary_switch_web.pdf
Installation manual International 2022-11-09
PDF8,32 MB
Installation manual
hw+ Air circuit breakers HW1
PDF56,16 MB
Safety instructions
-
PDF159,14 kB -
Manual
Technical catalogue
hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6
PDF57,96 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
