Hager The Hager HW1 Spring Charging Motor (MO) 100-130 V DC automates recharging of operating springs in switchgear/circuit breakers for fast, reliable remote operations. It draws 2 A and accepts 100-130 V DC control. With 450 V insulation and 6 kV impulse withstand, it resists surges. Operating from -25 to 70 °C, it’s ideal for robust panel installations in residential, commercial, and industrial settings.
EAN
3250613235444
Packaging
1 Piece
Spring charging motor 100-130V DC 2A Ui 450V Uimp 6kV HWX703H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current2 A
Voltage
-
Type voltage supplyDC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage DC100 - 130 V
Use conditions
-
Operating temperature-25 - 70 °C
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

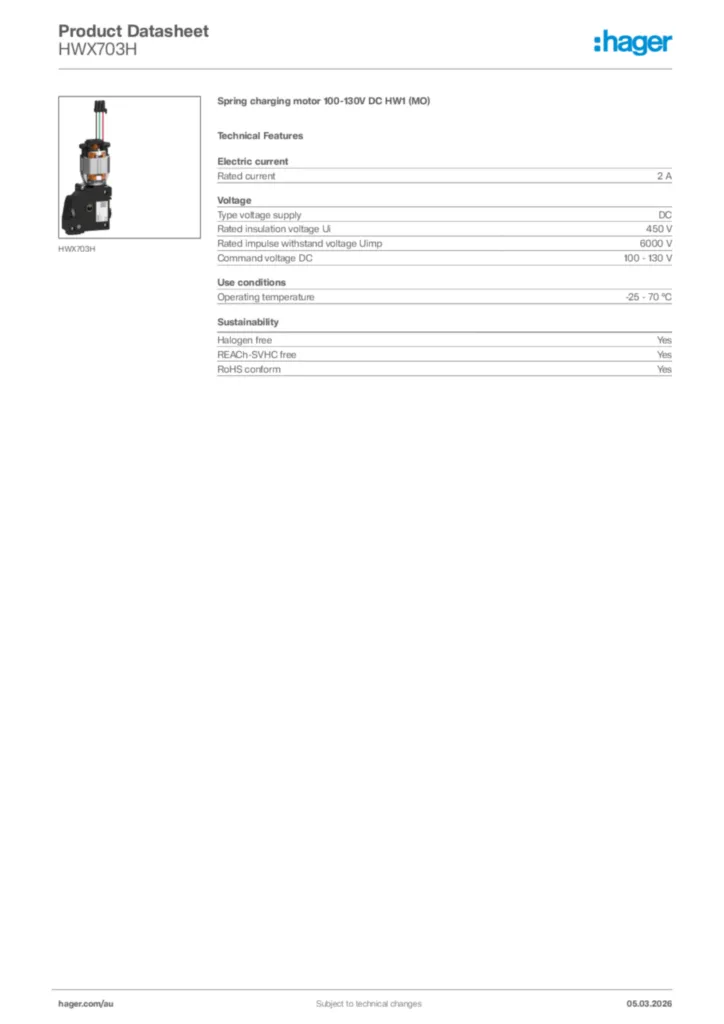

Hager Product data sheet HWX703H
Spring charging motor 100-130V DC HW1 (MO)
PDF -
Installation manual
Installation manual
hw+ Air circuit breakers HW1
PDF56,16 MB
Installation manual International 2025-06-16
PDF21,70 MB
Safety instructions
-
PDF159,14 kB -
Manual
Technical catalogue
hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6
PDF57,96 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
