Hager The Hager Terminal Connection Front-bottom, short for HW1 draw-out 3-pole (FC) enables reliable front-access cable connection for high-power switchgear. Rated at 1600 A, it supports robust copper conductors, ensuring low-resistance, high-performance links. Designed for draw-out devices, it speeds maintenance and simplifies installation while saving panel space—ideal for main distribution boards and heavy-duty applications.
EAN
3250613235505
Packaging
1 Piece
Terminal Connection Front-Bottom Short HW1 Draw-out 3P 1600A Copper (FC) HWY046H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current1600 A
Architecture
-
Number of poles3
-
Type of pole3P
Cable
-
Cable materialCopper
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

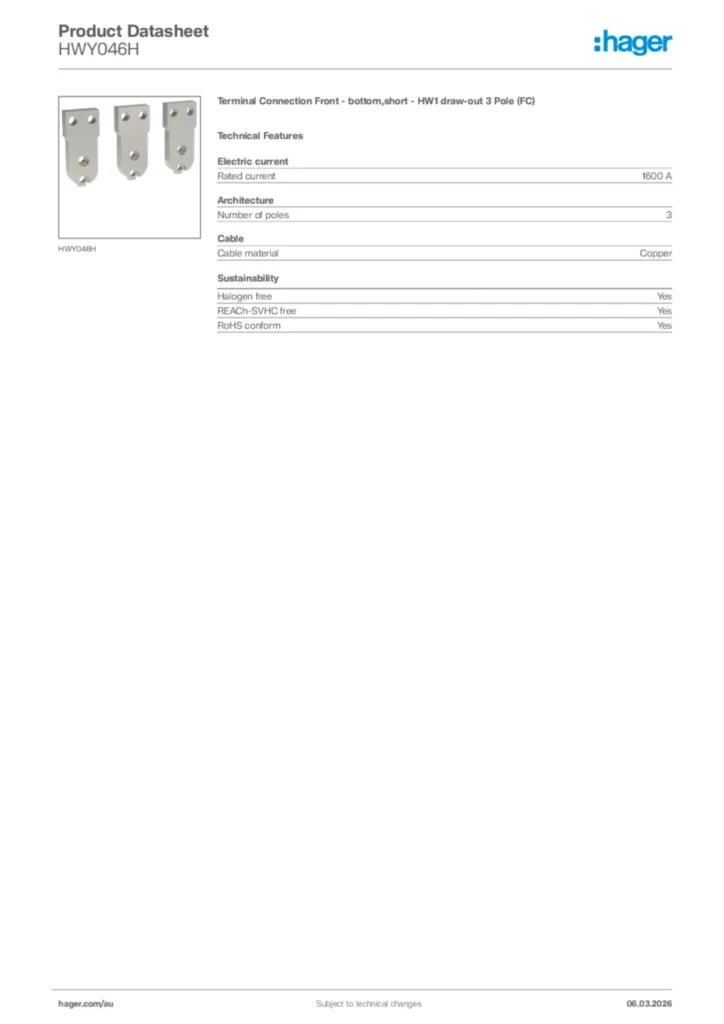

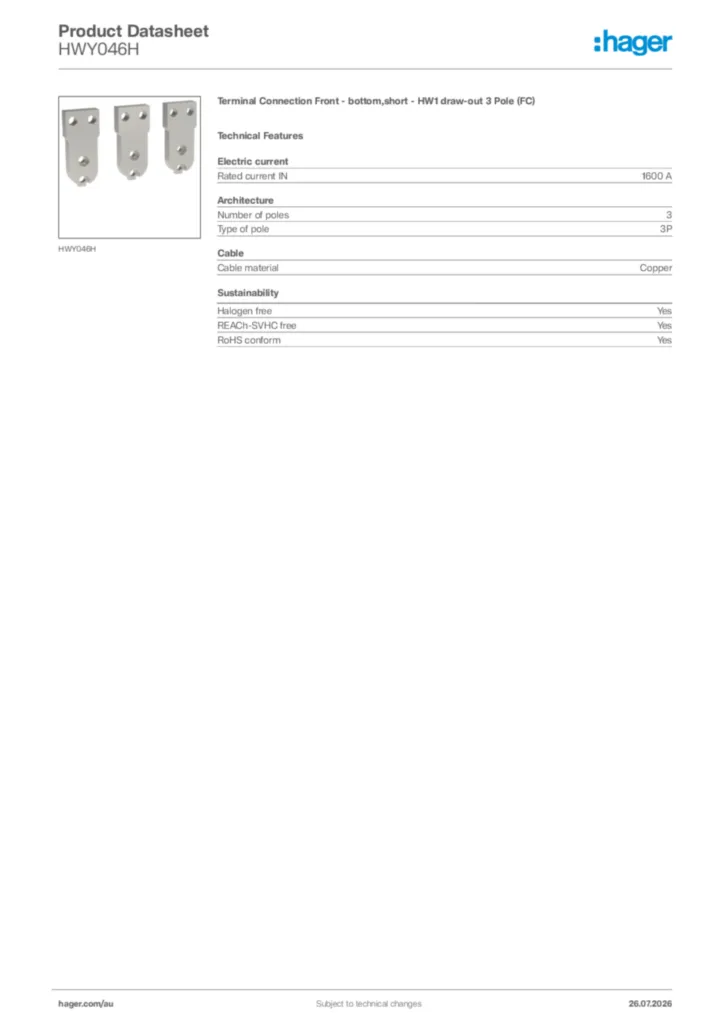

Hager Product data sheet HWY046H
Terminal Connection Front - bottom,short - HW1 draw-out 3 Pole (FC)
PDF -
Installation manual
Installation manual
hw+ Air circuit breakers HW1
PDF56,16 MB
Installation manual International 2021-06-04
PDF3,59 MB
Safety instructions
-
PDF159,14 kB -
Manual
Technical catalogue
hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6
PDF57,96 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
