Hager The Hager HW1 spring charging motor (MO) 100-130 V AC 50/60 Hz automates charging of spring‑operated mechanisms in switchgear and circuit breakers, ensuring quick, reliable closing readiness. Rated current 9.6 A, Ui 450 V, Uimp 6 kV. Wide 100-130 V control voltage, -25 to 70 °C operating range. Ideal for panels requiring remote or frequent operations and enhanced availability.
EAN
3250613235383
Packaging
1 Piece
Spring charging motor 100-130V AC 50/60Hz 9.6A Ui 450V Uimp 6kV HW1 (MO) HWX003H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current9,60 A
Voltage
-
Type voltage supplyAC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage AC100 - 130 V
Use conditions
-
Operating temperature-25 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

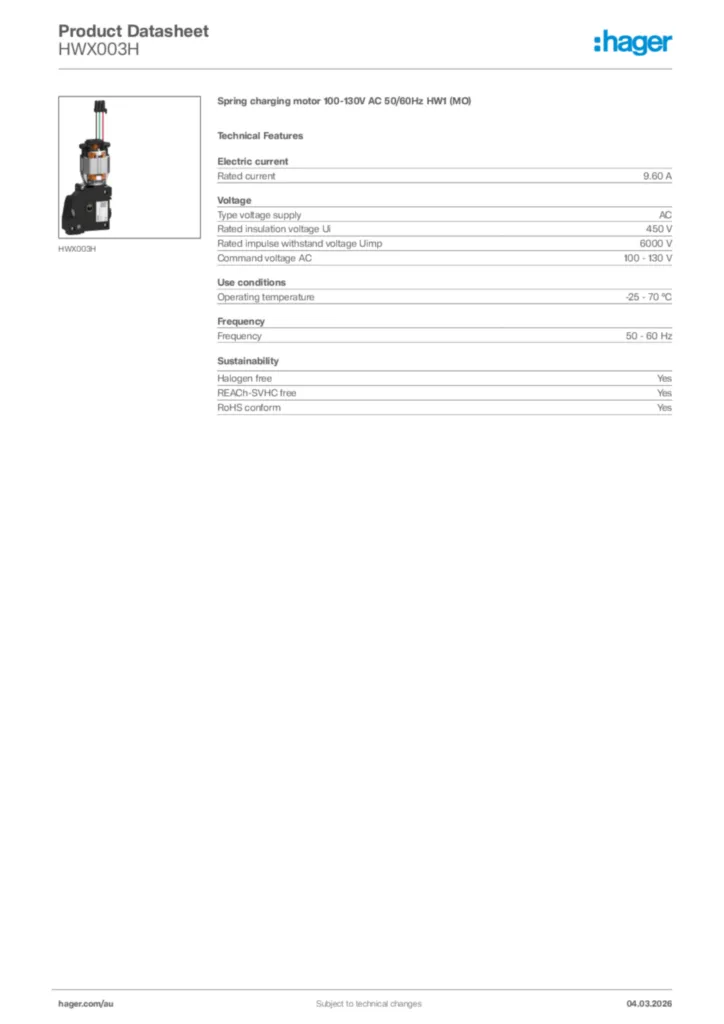

Hager Product data sheet HWX003H
