Hager The Hager Spring charging motor 48-60V AC 50/60Hz HW1 (MO) provides automatic spring charging for HW1 mechanisms, enabling fast, reliable remote operation of power breakers. Rated 9.6 A with 48-60 V AC control, 50/60 Hz, Ui 450 V and 6 kV impulse withstand for robustness. Operates from −25 to 70°C, ideal for industrial and commercial switchgear needing consistent closing readiness.
EAN
3250613235376
Packaging
1 Piece
Spring charging motor AC 48-60 V 50/60 Hz 9.6 A HW1 HWX002H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current9,60 A
Voltage
-
Type voltage supplyAC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage AC48 - 60 V
Use conditions
-
Operating temperature-25 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

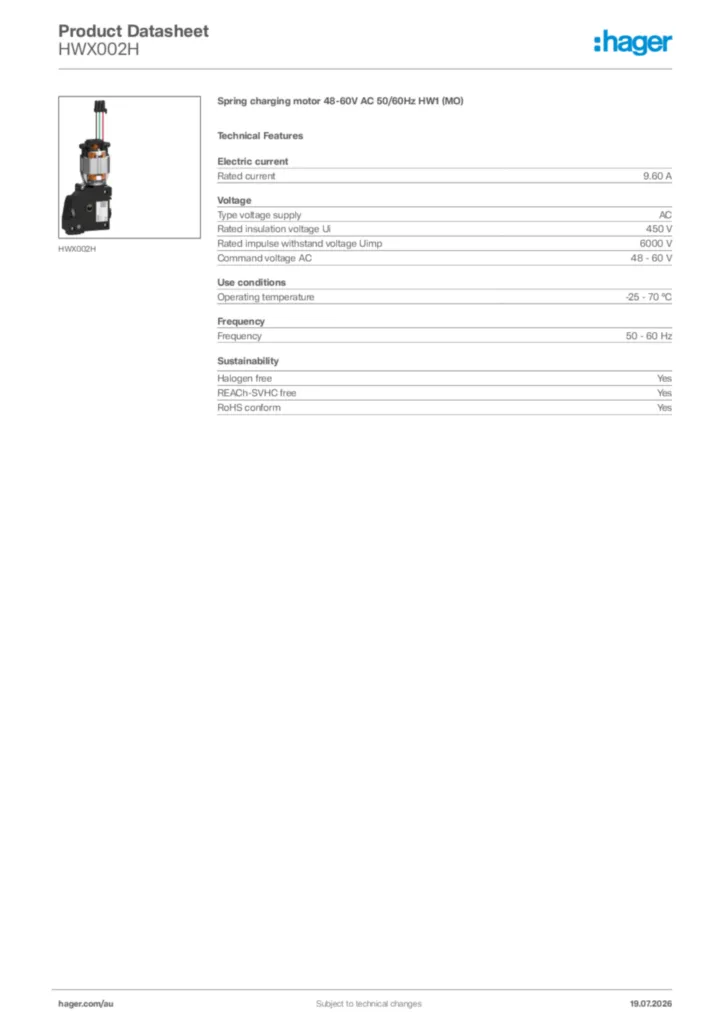

Product datasheet
Hager Product data sheet HWX002H
Spring charging motor 48-60V AC 50/60Hz HW1 (MO)
PDF -
Installation manual
Installation manual
hw+ Air circuit breakers HW1
PDF56,16 MB
Installation manual International 2025-06-16
PDF21,70 MB
Safety instructions
-
PDF159,14 kB -
Manual
Technical catalogue
hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6
PDF57,96 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
More documentation
