Design 10, 18 way 100A SW SPD VML118SPD
EAN-Nr.
5015652605362
Packaging
1 piece
Price
£239.81
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Gland plate for enclosure 1 products available -
Locking interlocking functions 1 products available -
Lock system 1 products available -
Common Accessories 1 products available -
Busbar terminal 4 products available -
See more 29 other products available
Complete your system
-
VM02CE
Cable entry plate,Design Range,insulated,5 pieces
£18.92 / piece*
-
MZN175
Padlockable locking kit for MCB, RCCB and RCBO
£9.58 / piece*
-
VMHBL
HSE Padlock Bracket,Design Range
£27.87 / piece*
-
VAP00
Label Pack
£7.39 / piece*
-
VAB08
8 Module Busbar
£10.91 / piece* -
VAB1212 Module Busbar
£12.13 / piece* -
VAB16
16 Module Busbar
£14.44 / piece* -
VAB21
21 Module Busbar
£17.27 / piece*
-
JK01BSingle Pole Busbar Blank
£1.88 / piece*
-
VAK0DDual Tariff Link Kit
£36.78 / piece* -
VAK0S
Split Load Link Kit
£45.58 / piece* -
VAK0TTriple Tariff Link Kit
£52.08 / piece* -
VAN00Neutral Link
£14.29 / piece* -
VMGROM
Grommet,Design Range,10 open hole,38mm for VM-VML-VMLF
£13.16 / piece*
-
VAT00Terminal Bar Support Clips (5 Pack)
£13.40 / piece* -
VAT02Terminal Bar 2 Way
£6.96 / piece* -
VAT03
Terminal Bar 3 Way
£7.12 / piece* -
VAT04
Terminal Bar 4 Way
£7.46 / piece* -
VAT05
Terminal Bar 5 Way
£7.66 / piece* -
VAT06
Terminal Bar 6 Way
£8.01 / piece* -
VAT07
Terminal Bar 7 Way
£8.20 / piece* -
VAT08
Terminal Bar 8 Way
£8.56 / piece* -
VAT09Terminal Bar 9 Way
£8.90 / piece* -
VAT10
Terminal Bar 10 Way
£9.00 / piece* -
VAT11
Terminal Bar 11 Way
£9.26 / piece* -
VAT12
Terminal Bar 12 Way
£9.61 / piece* -
VAT13
Terminal Bar 13 Way
£10.89 / piece* -
VAT14
Terminal Bar 14 Way
£11.56 / piece* -
VAT15
Terminal Bar 15 Way
£12.11 / piece* -
VAT16
Terminal Bar 16 Way
£12.25 / piece* -
VAT17
Terminal Bar 17 Way
£12.25 / piece* -
VAT18
Terminal Bar 18 Way
£12.46 / piece* -
VAT19
Terminal Bar 19 Way
£12.65 / piece* -
VAT20
Terminal Bar 20 Way
£12.81 / piece*
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Architecture
-
Number of poles2
Functions
-
Has protection main switchYes
-
Overvoltage protectionNo
Capacity
-
Number of modules38
Electric current
-
Rated current100 A
Dimensions
-
Depth100 mm
-
Height246 mm
-
Width478 mm
-
Thickness of sidewall1 mm
Cover, door
-
InterlockableNo
-
Door/cover is transparentNo
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of RCCB in enclosure2
Equipment
-
Number of rows1
-
Number of rails1
-
Extension possibleNo
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Instruction manual
Instruction manual en-GB 2022-12-06
PDF10,23 MB -
Product attachment
Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units
PDF3,38 MB -
Safety data sheet
AFDD Consumer Unit Guidance Notes
Safety data sheet en-GB 2022-11-22
PDF3,45 MB -

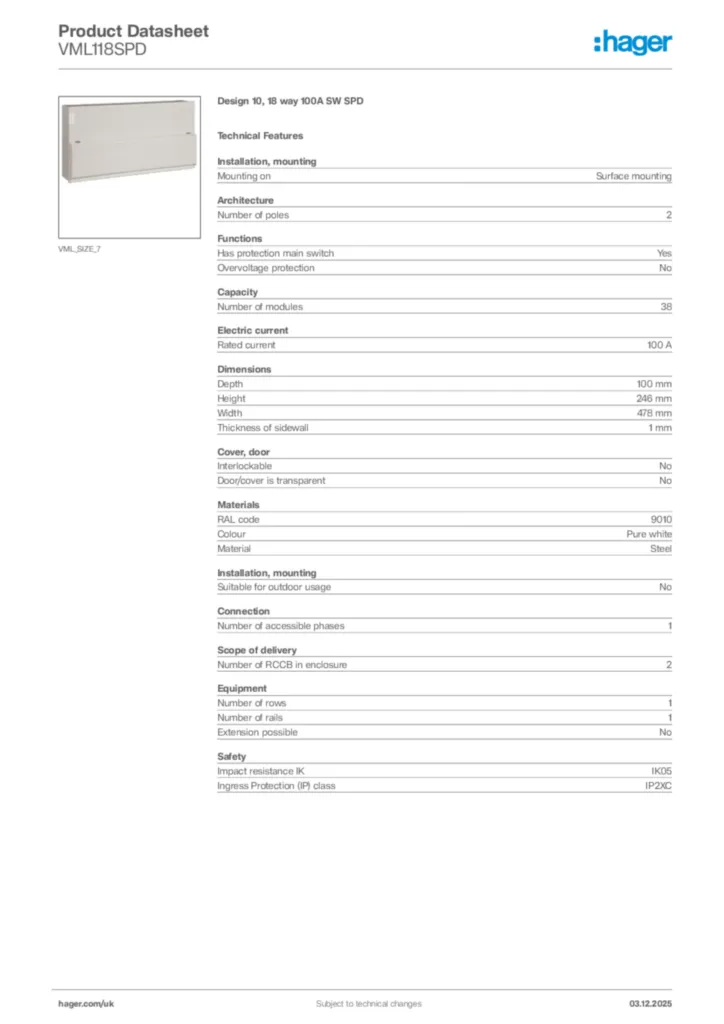

Product data sheet
Product data sheet en-GB 2019-03-12
PDF708,63 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-25
PDF394,06 kB
Declaration
Declaration of conformity International 2022-10-26
PDF403,64 kB
Declaration
Declaration of conformity International 2023-02-28
PDF377,30 kB
Declaration
Declaration of conformity International 2023-02-28
PDF192,00 kB
Declaration
Declaration of conformity International 2022-10-07
PDF195,58 kB
Declaration
Declaration of conformity International 2022-10-07
PDF240,85 kB
Declaration of conformity International 2023-12-20
PDF375,42 kB
Declaration of conformity International 2023-12-20
PDF381,49 kB
