Cartridge L-N/PEN Uc 350V Iimp 25kA Up 1.5kV for SPA80X SPA081
EAN-Nr.
3250615514820
Packaging
1 piece
Price
£332.82
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Referenced by
Technical characteristics
Electric current
-
Max. discharge (Imax) L-N(PEN)/ N-PE50 kA
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE25 kA
Network configuration
-
Network typeTN, TT
Connectivity
-
Type of connectionPlug-in connection
Equipment
-
With remote signalling contactYes
Capacity
-
Number of modules2
Voltage
-
Voltage protection level Up according to IEC 61643-11.50 kV
-
Continuous operating voltage Uc according to IEC 61643-1350 V
-
Rated operational voltage Ue240 - 240 V
-
Voltage level Up L-N/PEN IEC 61643-111.5 kV
Architecture
-
Number of poles1
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height44.8 mm
-
Width35.50 mm
-
Depth56.1 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1, T2
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

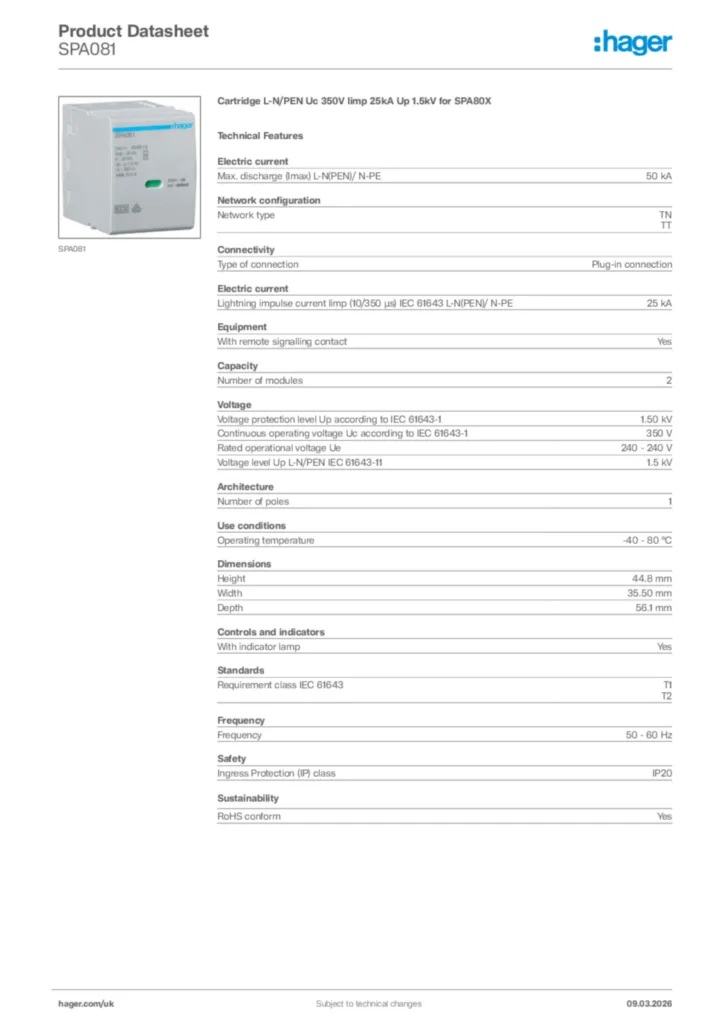

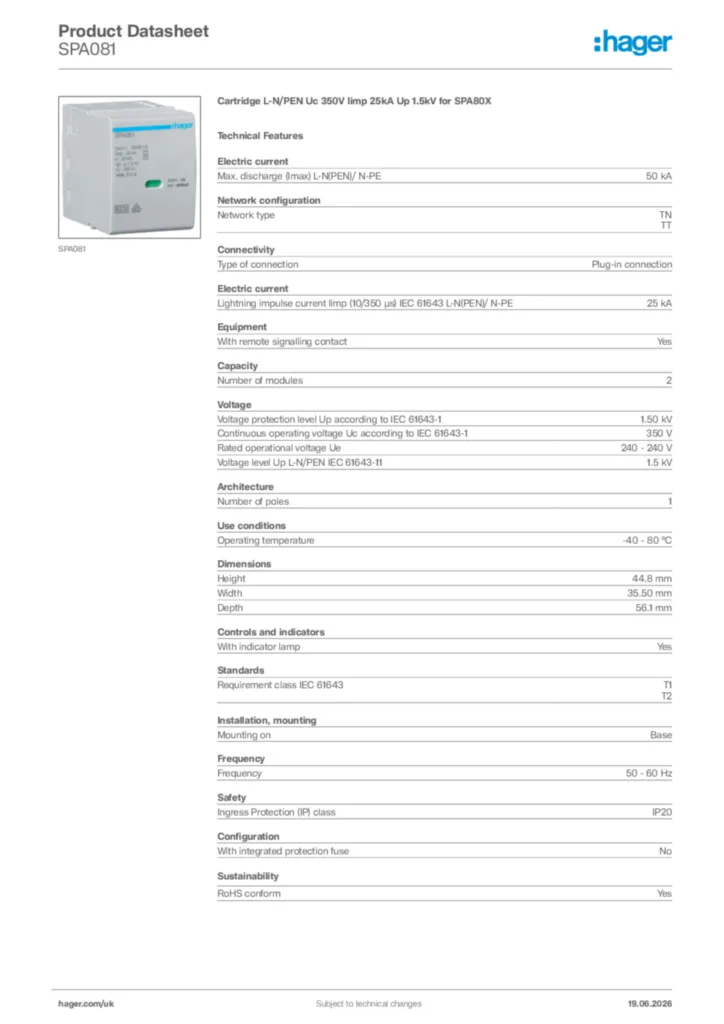

Hager Product data sheet SPA081
Cartridge L-N/PEN Uc 350V Iimp 25kA Up 1.5kV for SPA80X
PDF
