MCB 1P 10kA/15kA C-4A 1M NCN104A
EAN-Nr.
3250614615481
Packaging
12 PCEs
Price
£24.94
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionwithout neutral
-
Number of poles1 P
-
Type of pole1 P
-
CurveC
Main electrical features
-
Rated operational voltage Ue230 / 400 V
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage500 V
-
Rated impulse withstand voltage6000 V
Electric current
-
Rated service breaking capacity Ics AC according IEC 60898-17.5 kA
-
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-110 kA
Electric current / temperature
-
Rating current 30°C4 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product83 mm
-
Width of installed product17.5 mm
Power
-
Total power loss under IN2.62 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Installation, mounting
-
Tightening torque2,8Nm
Equipment
-
Can be accessorizedYes
Standards
-
Standard textEN 60898-1 ; IEC 60947-2
Use conditions
-
Operating temperature-25…70 °C
Downloads
-
Product image
-
Catalogue
Commercial Distribution Catalogue
PDF14 MB -

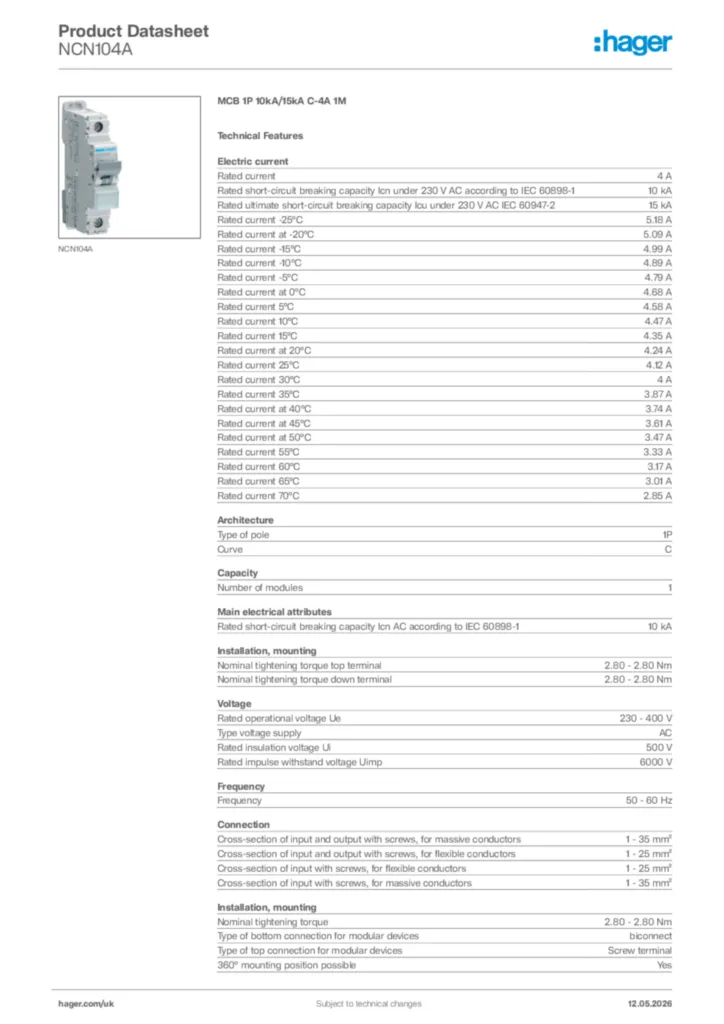

Product data sheet
