MCB 1P 10kA/15kA C-2A 1M NCN102A
EAN-Nr.
3250614615467
Packaging
12 PCEs
Price
£24.94
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionwithout neutral
-
Number of poles1 P
-
Type of pole1 P
-
CurveC
Main electrical features
-
Rated operational voltage Ue230 / 400 V
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage500 V
-
Rated impulse withstand voltage6000 V
Electric current
-
Rated service breaking capacity Ics AC according IEC 60898-17.5 kA
-
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-110 kA
Electric current / temperature
-
Rating current 30°C2 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product83 mm
-
Width of installed product17.5 mm
Power
-
Total power loss under IN1.89 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Installation, mounting
-
Tightening torque2,8Nm
Equipment
-
Can be accessorizedYes
Standards
-
Standard textEN 60898-1 ; IEC 60947-2
Use conditions
-
Operating temperature-25…70 °C
Downloads
-
Product image
-
Catalogue
Commercial Distribution Catalogue
PDF14 MB -

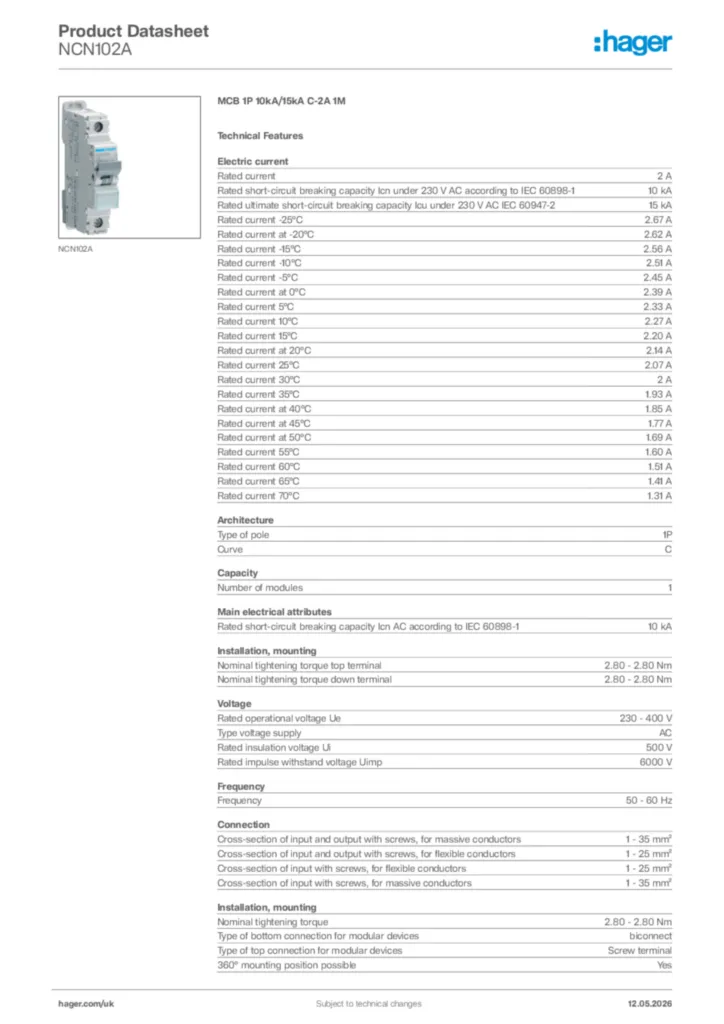

Product data sheet
Product data sheets for NCN102A
UK_PD_TDS_TransformerMotorprotection.pdf
PDF204 KB -
Product licence
Product licence for NCN102A
Licence for UNITED_KINGDOM
PDF243 KB
Product licence for NCN102A
Licence for ITALY
PDF525 KB -
Declaration of conformity
EU Declaration of conformity for NCN102A
Declaration
PDF710 KB
EU Declaration of conformity for NCN102A
EU Declaration of Conformity
PDF650 KB
EU Declaration of conformity for NCN102A
UKCA Declaration of Conformity
PDF653 KB
EU Declaration of conformity for NCN102A
Declaration
PDF689 KB
EU Declaration of conformity for NCN102A
Declaration
PDF786 KB
EU Declaration of conformity for NCN102A
Declaration
PDF716 KB -
PEP document
Product environmental profile for NCN102A
PDF432 KB -
RoHS report
Pollutant guidelines for NCN102A
REACH declaration NCN102A (english)
PDF103 KB
More documentation
