MCB 1P 10kA/15kA B-10A 1M NBN110A
EAN-Nr.
3250614618024
Packaging
12 Pieces
Price
£23.35
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Locking interlocking functions 2 products available
Complete your system
-
LZ060
Heat dissipation insert
£9.96 / piece*
-
MZ201
Auxiliary contact 1C+1O 6A 240V AC
£68.07 / piece* -
MZ202Alarm contact 1C+1O 6A 240V AC
£92.10 / piece*
-
MZ203
Shunt trip 230-415V AC 110-130V DC
£68.72 / piece* -
MZ204Shunt trip 24-48V AC 12-48V DC
£68.07 / piece*
-
MZ206
Under voltage release 230V AC
£68.72 / piece*
-
MZN175
Padlockable locking kit for MCB, RCCB and RCBO
£9.58 / piece* -
MZN176Locking wire for modular product
£9.24 / piece*
Technical characteristics
Electric current
-
Rated current10 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-27.50 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-215 kA
-
Rated current -25°C12.86 A
-
Rated current at -20°C12.63 A
-
Rated current -15°C12.39 A
-
Rated current -10°C12.15 A
-
Rated current -5°C11.90 A
-
Rated current at 0°C11.65 A
-
Rated current 5°C11.39 A
-
Rated current 10°C11.13 A
-
Rated current 15°C10.86 A
-
Rated current at 20°C10.58 A
-
Rated current 25°C10.29 A
-
Rated current 30°C10 A
-
Rated current 35°C9.70 A
-
Rated current at 40°C9.39 A
-
Rated current at 45°C9.06 A
-
Rated current at 50°C8.73 A
-
Rated current 55°C8.38 A
-
Rated current 60°C8.02 A
-
Rated current 65°C7.64 A
-
Rated current 70°C7.24 A
Architecture
-
Type of pole1P
-
CurveB
Capacity
-
Number of modules1
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6,000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN1.87 W
Endurance
-
Electric endurance in number of cycles4,000
-
Number of mechanical operations20,000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width17.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

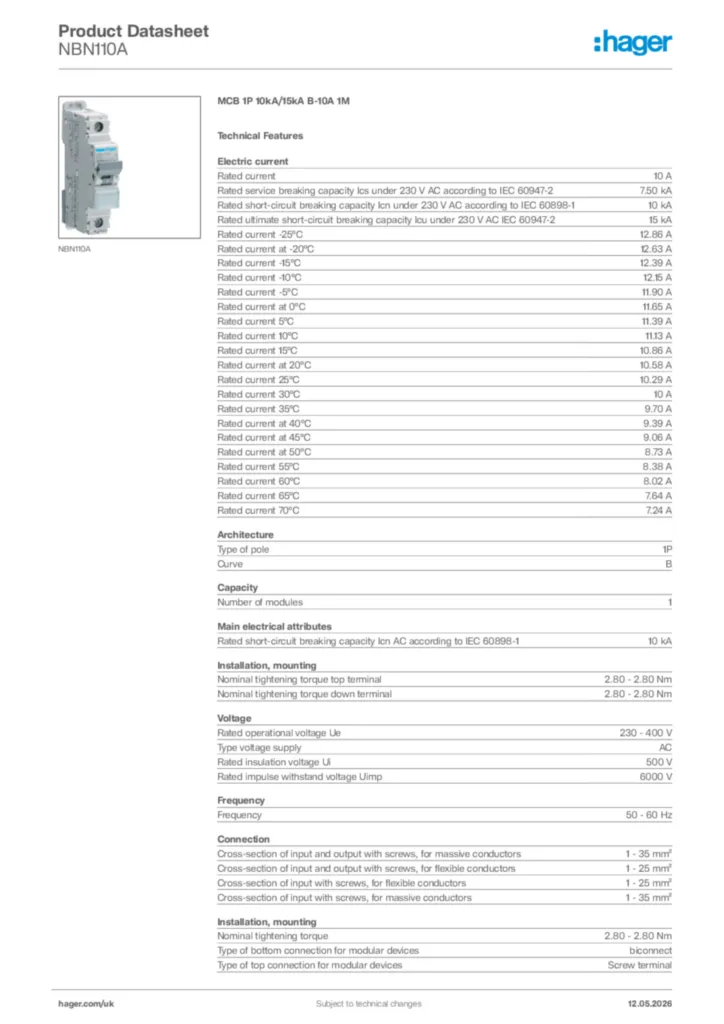

Product data sheet
