MCB 1P+N 6kA C-6A 1M MLN706A
EAN-Nr.
3250614320965
Packaging
12 Pieces
Price
£58.03
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Locking interlocking functions 2 products available -
See more 2 other products available
Complete your system
-
LZ060
Heat dissipation insert
£9.96 / piece*
-
MZ201
Auxiliary contact 1C+1O 6A 240V AC
£68.07 / piece* -
MZ202Alarm contact 1C+1O 6A 240V AC
£92.10 / piece*
-
MZ203
Shunt trip 230-415V AC 110-130V DC
£68.72 / piece* -
MZ204Shunt trip 24-48V AC 12-48V DC
£68.07 / piece*
-
MZ206
Under voltage release 230V AC
£68.72 / piece*
-
MZN175
Padlockable locking kit for MCB, RCCB and RCBO
£9.58 / piece* -
MZN176Locking wire for modular product
£9.24 / piece*
-
KB163NInsulated busbar 1P 63A prong 10mm² blue 13M
£10.26 / piece* -
KB163P

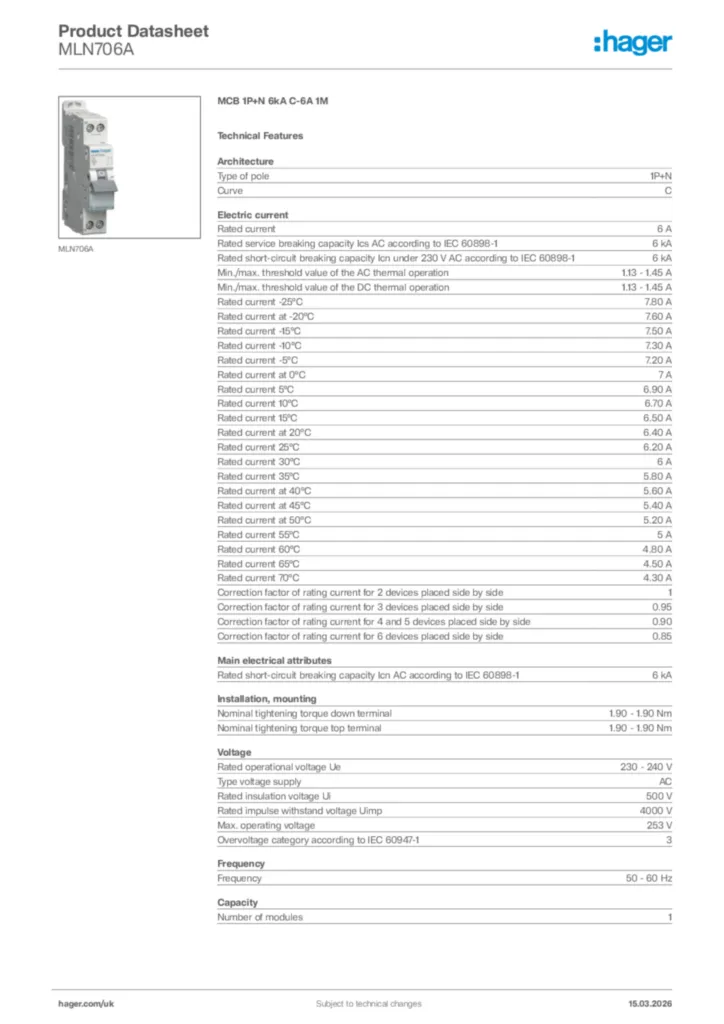

Technical characteristics
Architecture
-
Type of pole1P+N
-
CurveC
Electric current
-
Rated current6 A
-
Rated service breaking capacity Ics AC according to IEC 60898-16 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-16 kA
-
Min./max. threshold value of the AC thermal operation1.13 - 1.45 A
-
Min./max. threshold value of the DC thermal operation1.13 - 1.45 A
-
Rated current -25°C7.80 A
-
Rated current at -20°C7.60 A
-
Rated current -15°C7.50 A
-
Rated current -10°C7.30 A
-
Rated current -5°C7.20 A
-
Rated current at 0°C7 A
-
Rated current 5°C6.90 A
-
Rated current 10°C6.70 A
-
Rated current 15°C6.50 A
-
Rated current at 20°C6.40 A
-
Rated current 25°C6.20 A
-
Rated current 30°C6 A
-
Rated current 35°C5.80 A
-
Rated current at 40°C5.60 A
-
Rated current at 45°C5.40 A
-
Rated current at 50°C5.20 A
-
Rated current 55°C5 A
-
Rated current 60°C4.80 A
-
Rated current 65°C4.50 A
-
Rated current 70°C4.30 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Correction factor of rating current for 3 devices placed side by side0.95
-
Correction factor of rating current for 4 and 5 devices placed side by side0.90
-
Correction factor of rating current for 6 devices placed side by side0.85
Installation, mounting
-
Nominal tightening torque down terminal1.90 - 1.90 Nm
-
Nominal tightening torque top terminal1.90 - 1.90 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
-
Nominal tightening torque1.90 - 1.90 Nm
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated operational voltage Ue230 - 240 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Max. operating voltage253 V
-
Overvoltage category according to IEC 60947-13
Frequency
-
Frequency50 - 60 Hz
Capacity
-
Number of modules1
Power
-
Total power loss under IN1.30 W
Use conditions
-
Operating temperature-25 - 70 °C
-
Max. Altitude2,000 m
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations20,000
Safety
-
Ingress Protection (IP) classIP20
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesShifted terminal
-
Down connection alignment for modular devicesShifted terminal
Connection
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
Dimensions
-
Height84.70 mm
-
Width17.50 mm
-
Depth70 mm
