JN Multifunction Meter Pack 250A Pulsed and Modbus MID JN201MID
EAN-Nr.
5015652607472
Packaging
1 piece
Price
£976.63
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Type of pole3P+N
Electric current
-
Rated current250 A
-
Maximum measuring circuit current6,000 A
Capacity
-
Number of modules4
Dimensions
-
Height118.50 mm
-
Width70 mm
-
Depth66 mm
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentDigital
-
Current measurement range5 - 6,000 A
-
Frequency measuring range50 - 50 Hz
Power supply
-
Number of phases for power supply3
Functions
-
Accuracy class1
-
Tariff typeMulti-tariff
-
Is calibratedYes
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 75 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Instruction manual
Instruction manual en-GB 2016-06-13
Instruction manual en-GB 2023-03-16
PDF25,01 MB -

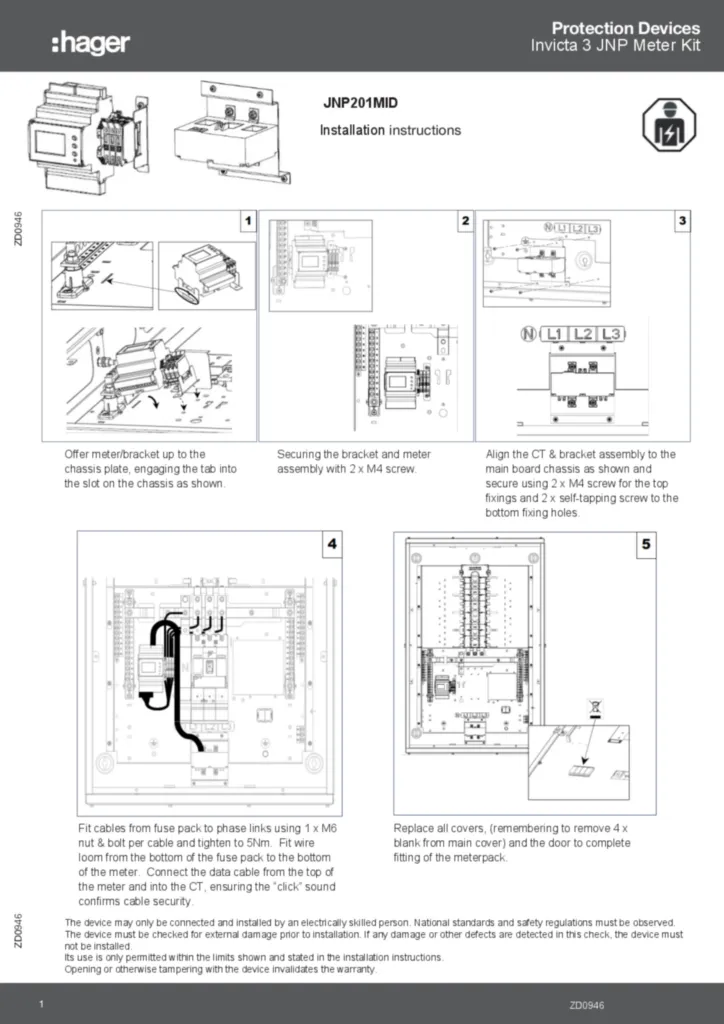

Installation manual
Installation manual en-GB 2016-03-07
PDF621,53 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF149,13 kB
Declaration
Declaration of conformity International 2022-08-24
PDF155,96 kB
Declaration
Declaration of conformity International 2022-08-23
PDF143,04 kB
Declaration
Declaration of conformity International 2022-07-06
PDF149,72 kB
