1 Phase kWhmeter direct 40A 1M ECN140D
EAN-Nr.
3250612231355
Packaging
1 piece
Price
£147.04
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Type of pole1P+N
Electric current
-
Rated current40 A
-
Maximum measuring circuit current40 A
Capacity
-
Number of modules1
Connectivity
-
Type of connectionDirect connection
Dimensions
-
Height92 mm
-
Width18 mm
-
Depth58 mm
Equipment
-
Type of pulse generatorOptical
Compatibility
-
Suitable forPurchase
Connection
-
Cross-section of metering input16 - 16 mm²
-
Cross-section of metering output16 - 16 mm²
Installation, mounting
-
Nominal tightening torque1 - 1 Nm
-
Mounting onDIN rail
Measurement
-
Measuring systemDirect measurement
-
Type of measuring instrumentElectronic
-
Current measurement range0.25 - 40.0 A
-
Measurement range voltage Ph-N184 - 276 V
-
Frequency measuring range45 - 65 Hz
Power supply
-
Number of phases for power supply1
Functions
-
Accuracy classB
-
Tariff typeOne-tariff
-
Is calibratedYes
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Power
-
Power consumption VA2 VA
-
Total power loss under IN1 W
Frequency
-
Frequency50 - 50 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

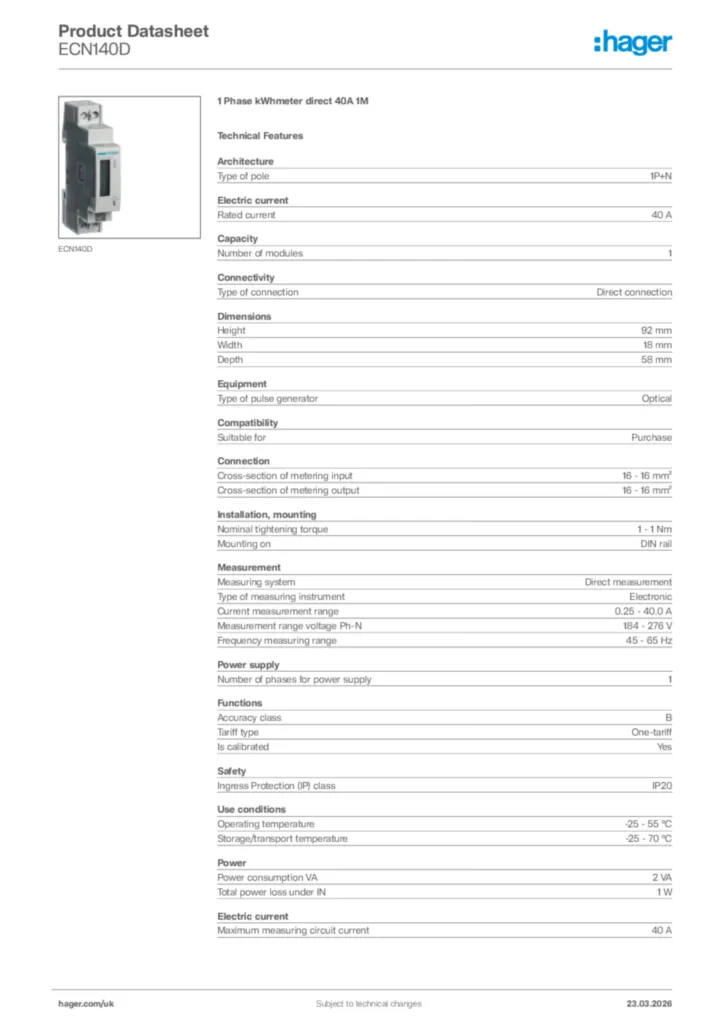

Product datasheet
Hager Product data sheet ECN140D
1 Phase kWhmeter direct 40A 1M
PDF -
Installation manual
Installation manual International 2019-04-25
PDF283,47 kB -
Manual
Installer Leaflet ECN140D
Manual de-DE, en-GB 2024-01-11
PDF917,64 kB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2024-04-15
PDF436,75 kB
