125A 6 Way TPN Board with 3 pole Switch Disconector JK106BGSD
EAN-Nr.
5015652607731
Packaging
1 piece
Price
£467.91
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Power phase busbar 2 products available -
Insert for lock system 1 products available -
Accessories/spare parts for low-voltage switch technology 4 products available -
Gland plate for enclosure 2 products available -
Accessories/spare parts for low-voltage switch technology 2 products available
Complete your system
-
JK250BSP
250A Single Phasing Kit
£56.57 / piece* -
JK1SPKITJK1 Single Phase Kit
£65.85 / piece*
-
JK222PK
JK1/JK2 Door Lock Kit
£24.66 / piece*
-
JK102SPD
125A Surge Protection Kit Type II
£457.38 / piece* -
JK101SPD125A Surge Protection Kit Type I/II
£711.48 / piece* -
JK100TAPJK 100A Top Tap Off Kit
£78.90 / piece* -
JK01BSingle Pole Busbar Blank
£1.88 / piece*
-
JK2PLATEM
Spare Gland Plate 1.2mm
£59.65 / piece* -
JK1PLATEMJK1 Spare Gland Plate 1.2mm
£42.12 / piece*
-
JK1/INCOMSHROUD
JK1 Main Incomer Shroud
£36.71 / piece* -
JK1/NEUTRALSHROUDJK Neutral Clear Shroud
£7.35 / piece*
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Architecture
-
Number of poles3
Functions
-
Has protection main switchYes
-
Overvoltage protectionNo
Capacity
-
Number of modules18
Electric current
-
Rated current125 A
Dimensions
-
Depth132.50 mm
-
Height550 mm
-
Width465 mm
-
Thickness of sidewall1.20 mm
Cover, door
-
InterlockableNo
-
Door/cover is transparentYes
Materials
-
RAL code7035
-
ColourLight grey
-
MaterialSteel
Connection
-
Number of accessible phases3
Equipment
-
Extension possibleYes
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

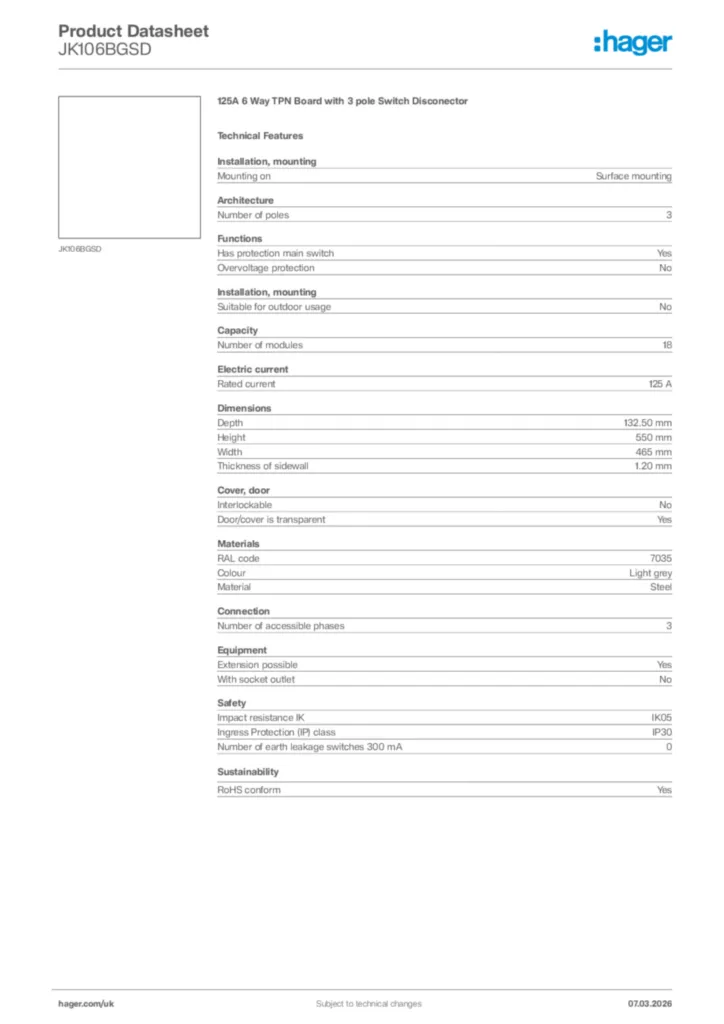

Hager Product data sheet JK106BGSD
