800A 8 Way 4*250A + 4*125A Plain JF80404B
EAN-Nr.
5015652264033
Packaging
1 piece
Price
£1,889.80
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Distributor assembly for device surface mounting 1 products available -
Blanking plate for enclosure 1 products available -
Switch disconnector AC 1 products available -
Small distribution board 3 products available -
Small equipped distribution board 4 products available
Complete your system
-
JF806DK
Large Extension Box Door Kit
£451.45 / piece* -
JF805DK
Small Spreader Box Door Kit
£431.15 / piece*
-
JF884BD
800A 4 Pole Dirct Connect Incomer Kit
£308.65 / piece*
-
JF003BP
3 Pole Blanking Plate 250A Frame
£24.48 / piece*
-
JAB410B
Enclosed Switch Disconnector TPSN 100A
£700.06 / piece*
-
JF803E
large DIN Rail Box Plain
£426.76 / piece* -
JF801E
Small DIN Rail Box Plain
£350.12 / piece* -
JF12504SM6/8 Way Side Extension Encl DIN 96 x 4
£890.70 / piece*
-
JAB402B
Enclosed Switch Disconnector TPSN 20A
£244.95 / piece* -
JAB403B
Enclosed Switch Disconnector TPSN 32A
£294.84 / piece* -
JAB406B
-
JAC412B
Enclosed Switch Disconnector TPSN 125A
£804.78 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current800 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,250 mm
-
Width900 mm
-
Depth220 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeBarrel lock, Key lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

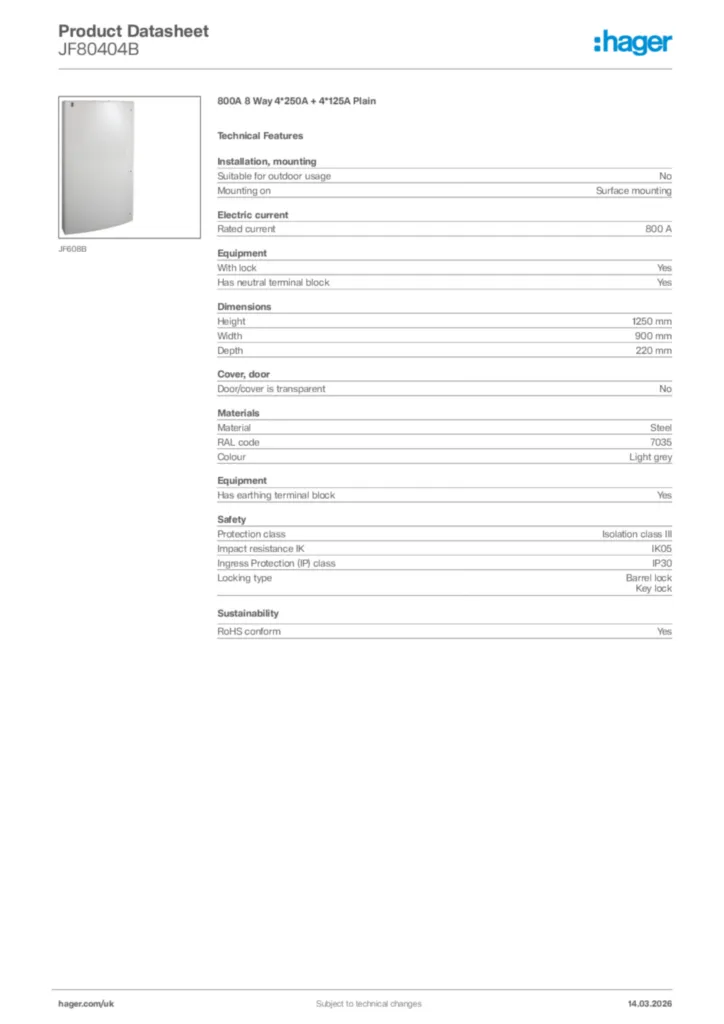

Hager Product data sheet JF80404B
800A 8 Way 4*250A + 4*125A Plain
PDF -
Installation manual
UK_HAGER_INS_ZD0741
Installation manual en-GB 2023-01-25
PDF3,15 MB -
BIM Revit objects
Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,13 MB
Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,12 MB
Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,14 MB
Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,13 MB -
Product data sheet
UK_CD_TDS_Invicta3Panelboards
Technical data sheet including characteristics for Invicta 3 Panelboards 250A - 800A
PDF45,13 kB
UK_CD_TDS_Invicta3400-800Adimensions
Technical data sheet including dimension for 400A-800A rated Invicta 3 Panelboards.
PDF90,67 kB
UK_INVICTA_630A_800A_Panelboard.pdf
Product data sheet en-GB 2018-08-20
PDF183,92 kB -
Declaration of conformity
Declaration of conformity en-GB 2025-07-07
PDF246,50 kB
Declaration of conformity en-GB 2025-07-07
PDF244,86 kB
