            HNF981H - Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI
            HNF981H - Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI

            Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI

            HNF981H

            HNF981H - Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI
            HNF981H - Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI
            • Higher Power & Switching

            Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI HNF981H

            EAN-Nr.
            3250613349912
            Packaging
            1 piece
            Price
            £5,301.80
            / piece *
            £5,301.80
            / piece *

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical characteristics
            • Environmental value
            • Documentations
            • More products

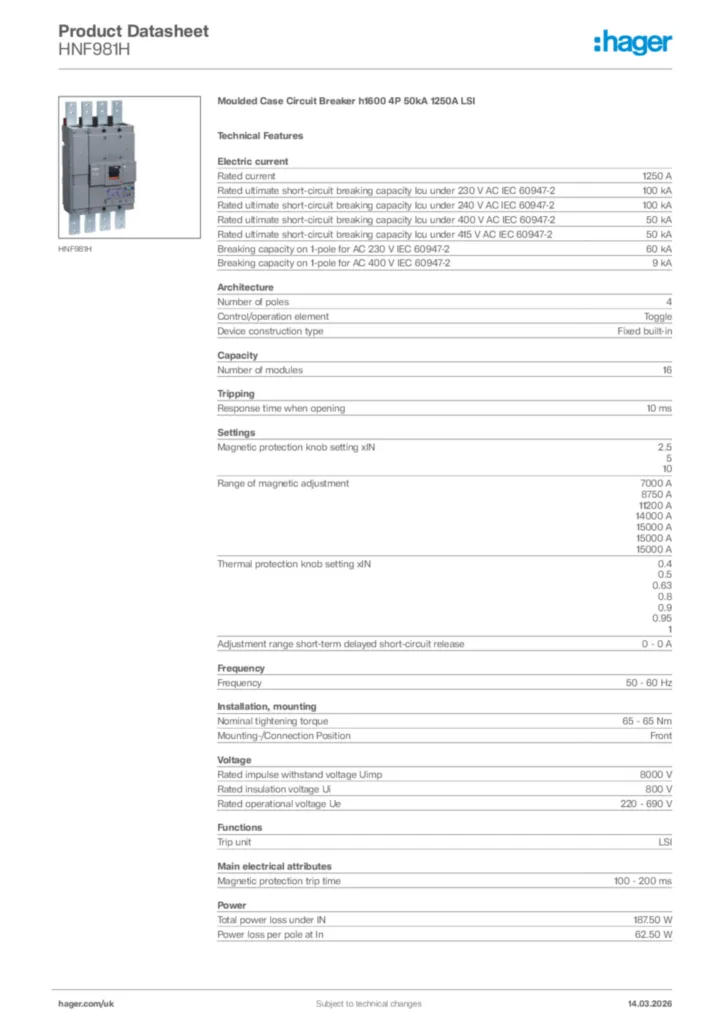

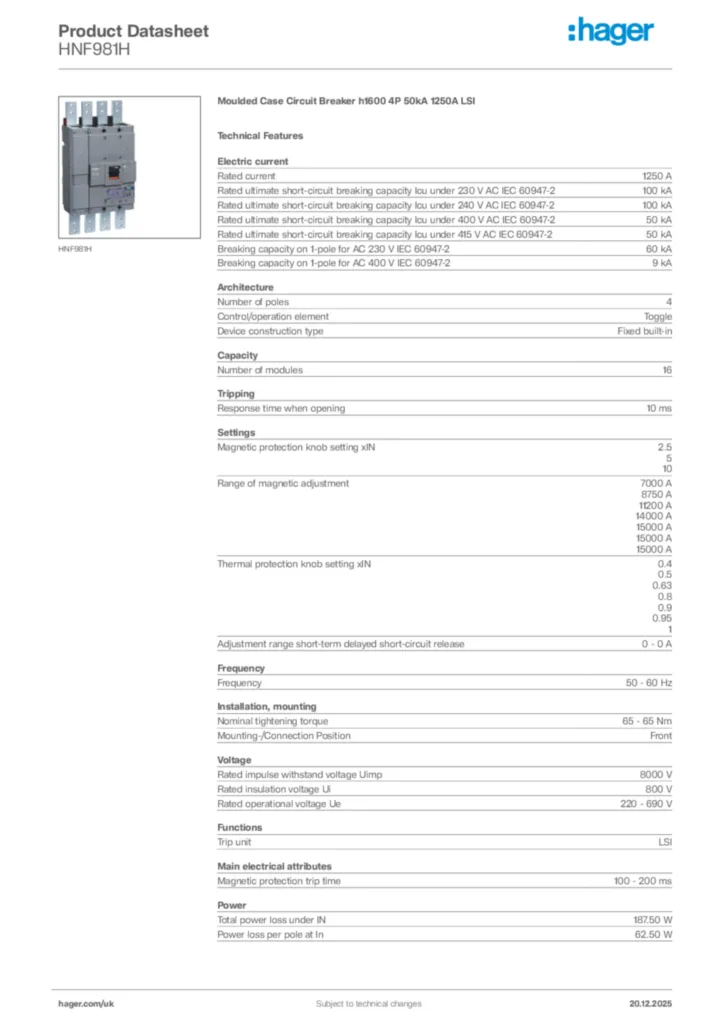

            Download the sheet

            Complete your system

            Optional accessories

            • Auxil­i­aries inter­locking cable 1 products available
            • Auxil­i­aries contact block 4 products available
            • Under voltage coil 8 products available
            • Handle for power circuit breaker 2 products available
            • Padlock barrier for switch 1 products available
            • See more 3 other products available

            Complete your system

            • Auxil­i­aries inter­locking cable
            • Auxil­i­aries contact block
            • Under voltage coil
            • Handle for power circuit breaker
            • Padlock barrier for switch
            • Motor oper­ator
            • Auxil­i­aries cable adaptor
            • HXB069H

              Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)

              £87.40  / piece*
              Add to a list
              Add to a list
            • HXC021H

              Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)

              £102.83  / piece*
              Add to a list
              Add to a list
            • HXC024H

              Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)

              £122.72  / piece*
              Add to a list
              Add to a list
            • HXC025H

              Auxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)

              £148.92  / piece*
              Add to a list
              Add to a list
            • HXC026H

              Alarm contact low level 1NO+1NC (h250-h400-h630-h800-h1000-h1600)

              £148.92  / piece*
              Add to a list
              Add to a list
            • HXE011H

              UVR 24V DC (h800-h1000-h1600)

              £409.85  / piece*
              Add to a list
              Add to a list
            • HXE013H

              UVR 110-120V AC (h800-h1000-h1600)

              £409.85  / piece*
              Add to a list
              Add to a list
            • HXE014H

              UVR 220-240V AC (h800-h1000-h1600)

              £409.85  / piece*
              Add to a list
              Add to a list
            • HXE015H

              UVR 380-415V AC (h800-h1000-h1600)

              £409.85  / piece*
              Add to a list
              Add to a list
            • HXF051H

              Undervoltage Release delayed h800-h1600 4P 24VDC

              £941.82  / piece*
              Add to a list
              Add to a list
            • HXF053H

              Undervoltage Release delayed h800-h1600 4P 110-120VAC

              £941.82  / piece*
              Add to a list
              Add to a list
            • HXF054H

              Undervoltage Release delayed h1600 4P 220-240VAC

              £941.82  / piece*
              Add to a list
              Add to a list
            • HXF055H

              Undervoltage Release delayed h800-h1600 4P 380-415VAC

              £882.94  / piece*
              Add to a list
              Add to a list
            • HXF030H

              Direct rotary handle H1250-H1600

              £272.76  / piece*
              Add to a list
              Add to a list
            • HXF031H

              Extended rotary handle H1250-H1600

              £369.39  / piece*
              Add to a list
              Add to a list
            • HXF039H

              Padlock H1250-H1600

              £129.73  / piece*
              Add to a list
              Add to a list
            • HXF040H

              Motor operator h1250-h1600 24V DC

              £3,903.42  / piece*
              Add to a list
              Add to a list
            • HXF042H

              Motor operator H1250-H1600 200-230VAC

              £3,903.42  / piece*
              Add to a list
              Add to a list
            • HYA035H

              Connecting kit 3P/4P

              £32.36  / piece*
              Add to a list
              Add to a list

            Technical characteristics

            Elec­tric current
            • Rated current
              1,250 A
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
              100 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
              100 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
              50 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
              50 kA
            • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
              60 kA
            • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
              9 kA
            Archi­tec­ture
            • Number of poles
              4
            • Control/­op­er­a­tion element
              Toggle
            • Device construc­tion type
              Fixed built-in
            Capa­city
            • Number of modules
              16
            Trip­ping
            • Response time when opening
              10 ms
            Settings
            • Magnetic protec­tion knob setting xIN
              2.5, 5, 10
            • Range of magnetic adjust­ment
              7000 A, 8750 A, 11200 A, 14000 A, 15000 A, 15000 A, 15000 A
            • Thermal protec­tion knob setting xIN
              0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
            • Adjust­ment range short-term delayed short-­cir­cuit release
              0 - 0 A
            Frequency
            • Frequency
              50 - 60 Hz
            Install­a­tion, mounting
            • Nominal tight­ening torque
              65 - 65 Nm
            • Mount­ing-/­Con­nec­tion Posi­tion
              Front
            Voltage
            • Rated impulse with­stand voltage Uimp
              8,000 V
            • Rated insu­la­tion voltage Ui
              800 V
            • Rated oper­a­tional voltage Ue
              220 - 690 V
            Func­tions
            • Trip unit
              LSI
            Main elec­trical attrib­utes
            • Magnetic protec­tion trip time
              100 - 200 ms
            Power
            • Total power loss under IN
              187.50 W
            • Power loss per pole at In
              62.50 W
            Endur­ance
            • Elec­tric endur­ance in number of cycles
              1,000
            • Number of mech­an­ical oper­a­tions
              4,000
            Equip­ment
            • Number of auxil­iary contacts as change-over contact
              0
            • Number of auxil­iary contacts as normally closed contact
              0
            • Number of auxil­iary contacts as normally open contact
              0
            Safety
            • Ingress Protec­tion (IP) class
              IP4X
            Use condi­tions
            • Oper­ating temper­ature
              -25 - 70 °C
            Connec­tion
            • Cross-sec­tion flex­ible conductor
              3x 240 mm²
            • Cross-sec­tion rigid conductor
              3x 240 mm²
            • Connect­or/plug type
              Terminal
            Controls and indic­ators
            • Motor drive integ­rated
              No
            Compat­ib­ility
            • Suit­able for DIN Rail
              No
            Power supply
            • Posi­tion power supply
              Bidirec­tional

            Environmental value

            We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

            Certifications and documents

            REACH declaration HNF981H (english)
            PDF
            103,10 kB
            RoHS declaration HNF981H (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image HNF981H  | Hager

              Product Image HNF981H

            • Installation manual

              Image Installation manual International 2021-06-07  | Hager

              Installation manual International 2021-06-07

              PDF
              3,62 MB
            • Declaration of conformity

              Image Declaration  | Hager

              Declaration

              Declaration of conformity International 2022-06-23

              PDF
              287,24 kB
            More documentation

            Discover our other products of this range

              5
            • 1
              HDA014E - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  16A 18kA CTC
              HDA014E
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 18kA CTC
              Price
              £185.76
              / piece *
              £185.76
              / piece *
            • 2
              HDA014Z - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  16A 18kA CTC
              HDA014Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 18kA CTC
              Price
              £176.91
              / piece *
              £176.91
              / piece *
            • 3
              HDA016Z - Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D  16A 18kA CTC
              HDA016Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D 16A 18kA CTC
              Price
              £261.87
              / piece *
              £261.87
              / piece *
            • 4
              HDA017Z - Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D  16A 18kA CTC
              HDA017Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 16A 18kA CTC
              Price
              £221.75
              / piece *
              £221.75
              / piece *
            • 5
              HDA018E - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  20A 18kA CTC
              HDA018E
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 18kA CTC
              Price
              £189.47
              / piece *
              £189.47
              / piece *

            Products

              • Catalogues and brochures
              • Commercial & residential distribution boards
              • Non-British Standard Orion Enclosures
              • Higher Power Switching
              • Circuit Protection & Modular Switches
              • Energy Metering
              • Wiring accessories
              • Lighting Connection & Control



              • Accessibility: partially compliant

            Digital tools

            • BIM
            • ETIM
            • hagercad.pro

            Support

            • Contact us
            • Training
            • FAQs
            • Marketing support
            • Career

            Newsletter

            Want to receive all the latest in Hager news and product launches?

            Fol­low us

            • Policies and certificates
            • About us
            • Privacy
            • Cookies
            • Report a vulnerability

            Hager Ltd, Hortonwood 50, Telford, Shropshire, TF1 7FT
            Registered in England, No: 01551990
            VAT Number: GB 713 2273 68
