HMF480T - MCB 4P 10kA C-80A 6M
HMF480T - MCB 4P 10kA C-80A 6M

MCB 4P 10kA C-80A 6M HMF480T

EAN-Nr.
3250613231187
Packaging
1 Prt.
£349.01
/ piece *

Technical characteristics

Architecture
  • Number of poles
    4 P
  • Curve
    C
Main electrical features
  • Rated operational voltage Ue
    415 V
  • Frequency
    50/60 Hz
  • Type of supply voltage
    AC
Voltage
  • Rated insulation voltage
    500 V
  • Rated impulse withstand voltage
    6000 V
Electric current
  • Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
    10 kA
Electric current / temperature
  • Rating current 30°C
    80 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    90 mm
  • Width of installed product
    106 mm
Power
  • Total power loss under IN
    25.71 W
Endurance
  • Electric endurance in number of cycles
    4000
  • Number of mechanical operations
    20000
Installation, mounting
  • Tightening torque
    3,5 to 5Nm
Connection
  • Type of connection
    terminal with tightening compensation system
Standards
  • Standard text
    EN 60898-1 ; IEC 60947-2
Safety
  • Protection index IP
    IP20

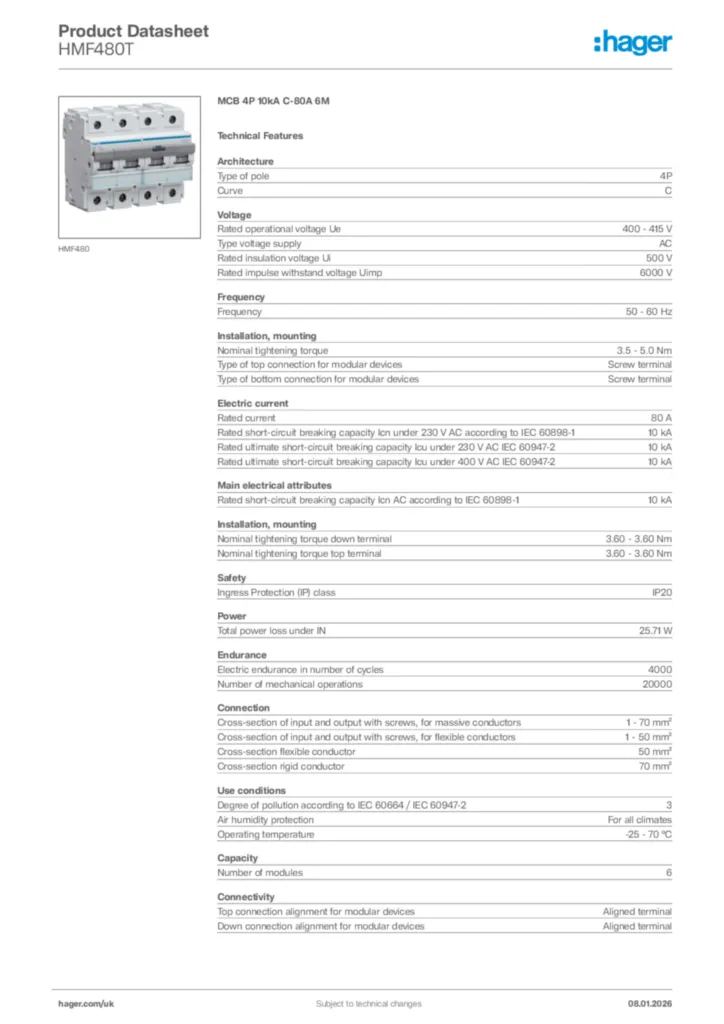

Downloads

More documentation
*Data is subject to errors and technical modifications. Prices are trade price, exclusive of VAT.
