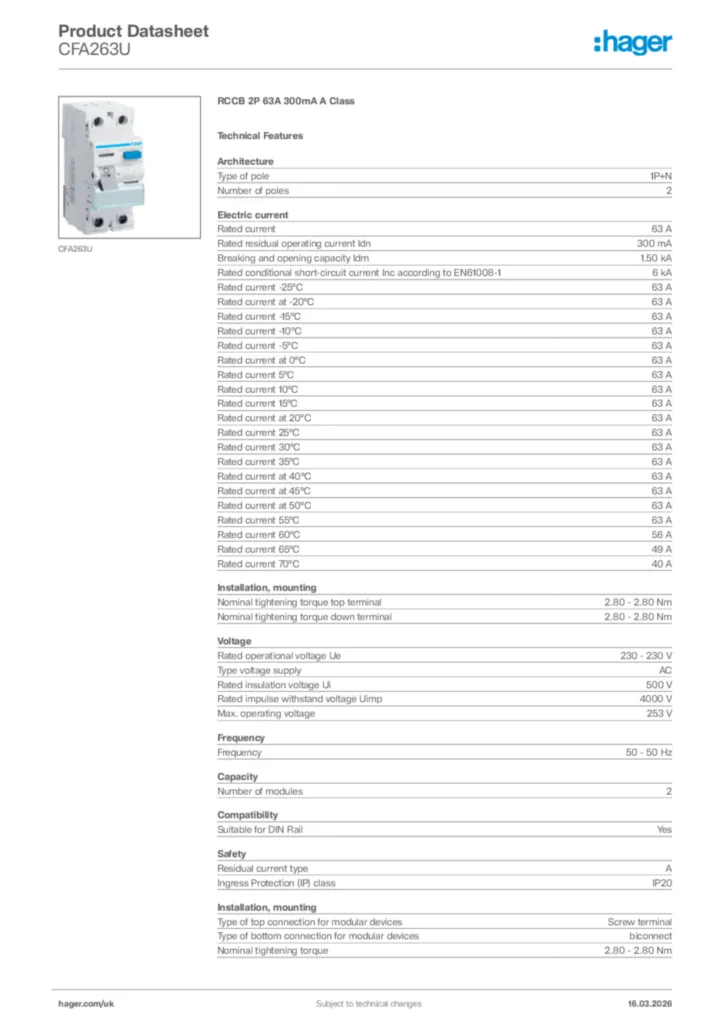

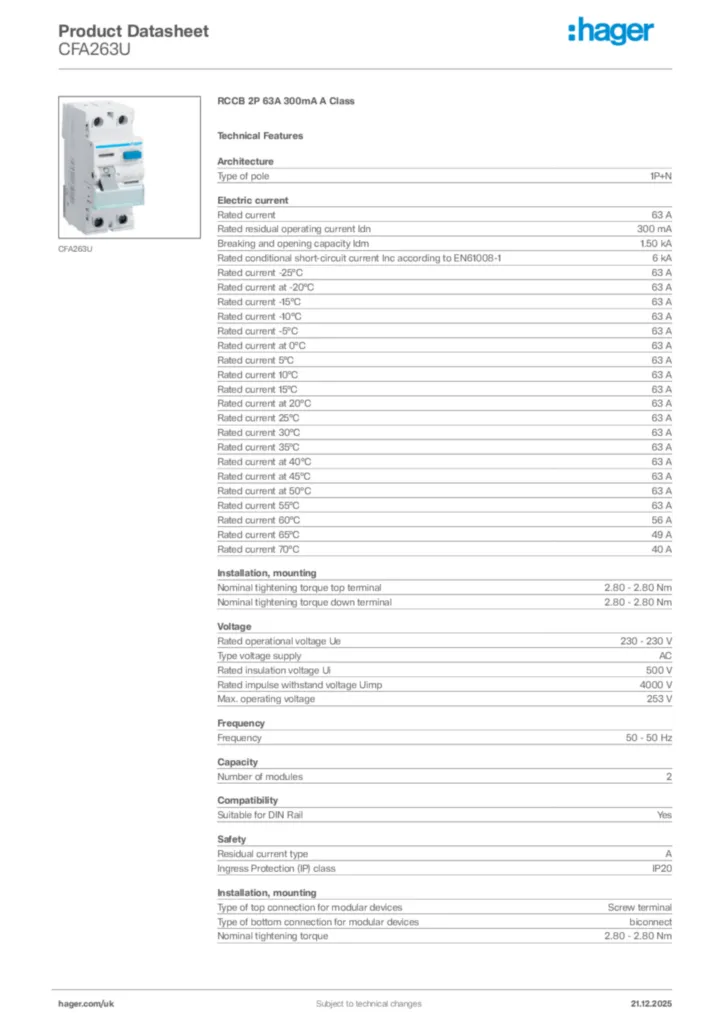

CFA263U

RCCB 2P 63A 300mA A Class
EAN
3250611614678
Quantity
1
Trade price*
£146.26 *
  • Architecture
    • Neutral position
      right
    • Number of poles
      2 P
    • Fixing mode
      DIN rail type O (symmetrical)
  • Main electrical features
    • Rated operational voltage Ue
      230 V
    • Frequency
      50 Hz
    • Rated current
      63 A
  • Voltage
    • Rated insulation voltage
      500 V
    • Rated impulse withstand voltage
      4000 V
  • Electric current
    • Rated residual operating current
      300 mA
    • Breaking and opening capacity
      1500 A
    • Rated conditional short-circuit current Inc according to EN 61008-1
      6 kA
  • Electric current / temperature
    • Rating current 30°C
      63 A
  • Dimensions
    • Depth of installed product
      70 mm
    • Height of installed product
      83 mm
    • Width of installed product
      35 mm
  • Power
    • Total power loss under IN
      8.7 W
  • Tripping
    • Short-time delayed tripping
      No
    • Residual current trip mode
      Undelayed
  • Endurance
    • Electric endurance in number of cycles
      2000
    • Number of mechanical operations
      4000
  • Capacity
    • Number of modules
      2
  • Installation, mounting
    • Tightening torque
      2,8Nm
  • Connection
    • Connection cross-sect. flexible conductor
      1 ; 16mm²
    • Connection cross-sect. rigid cable
      1 ; 25mm²
    • Type of connection
      with screw
  • Standards
    • Standard text
      BS 61008-1 ; EN 61008-1
    • European directive WEEE
      concerned
  • Safety
    • Protection index IP
      IP20
    • Residual current type
      A
  • Use conditions
    • Operating temperature
      -25/40 °C
    • Storage temperature
      -55/70 °C
  • Temperature
    • Operating temperature
      -25/40 °C
Documentations
Product environmental profile for CFA263U 425 kbpdfDownload
Instruction manuals for CFA263U 708 kbpdfDownload
Commercial Distribution Catalogue 13011 kbpdfDownload
Residential Distribution Catalogue 6109 kbpdfDownload
