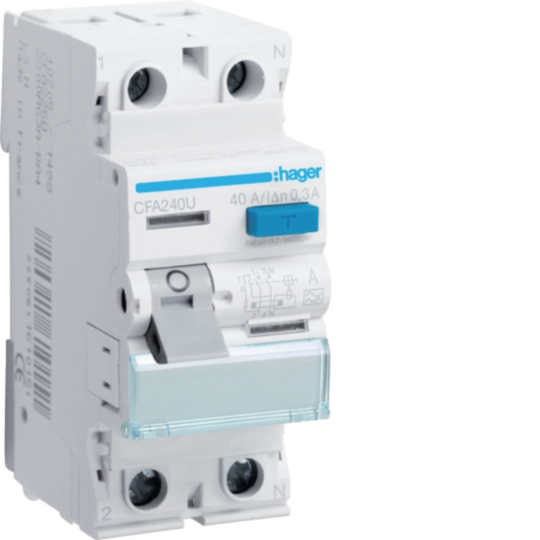

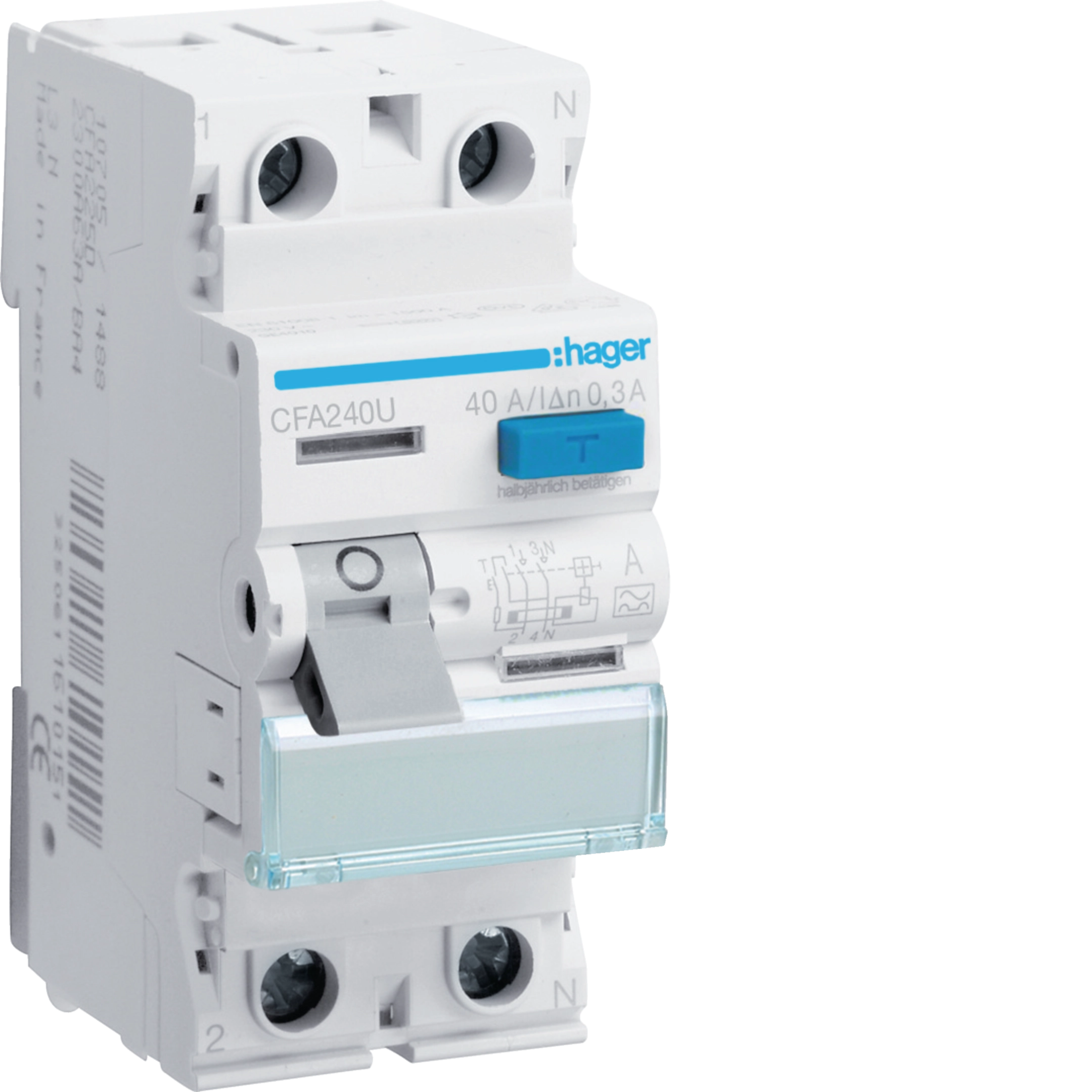

CFA240U

RCCB 2P 40A 300mA A Class
EAN
3250611614579
Quantity
1
Trade price*
£144.20 /prt.*
Architecture
Neutral positionright
Number of poles2 P
Fixing modeDIN rail type O (symmetrical)
Main electrical features
Rated operational voltage Ue230 V
Frequency50 Hz
Rated current40 A
Voltage
Rated insulation voltage500 V
Rated impulse withstand voltage4000 V
Electric current
Rated residual operating current300 mA
Breaking and opening capacity1500 A
Rated conditional short-circuit current Inc according to EN 61008-16 kA
Electric current / temperature
Rating current 30°C40 A
Dimensions
Depth of installed product70 mm
Height of installed product83 mm
Width of installed product35 mm
Power
Total power loss under IN3.2 W
Tripping
Short-time delayed trippingNo
Residual current trip modeUndelayed
Endurance
Electric endurance in number of cycles2000
Number of mechanical operations4000
Capacity
Number of modules2
Installation, mounting
Tightening torque2,8Nm
Connection
Connection cross-sect. flexible conductor1 ; 16mm²
Connection cross-sect. rigid cable1 ; 25mm²
Type of connectionwith screw
Standards
Standard textBS 61008-1 ; EN 61008-1
European directive WEEEconcerned
Safety
Protection index IPIP20
Residual current typeA
Use conditions
Operating temperature-25/40 °C
Storage temperature-55/70 °C
Temperature
Operating temperature-25/40 °C
See more features
