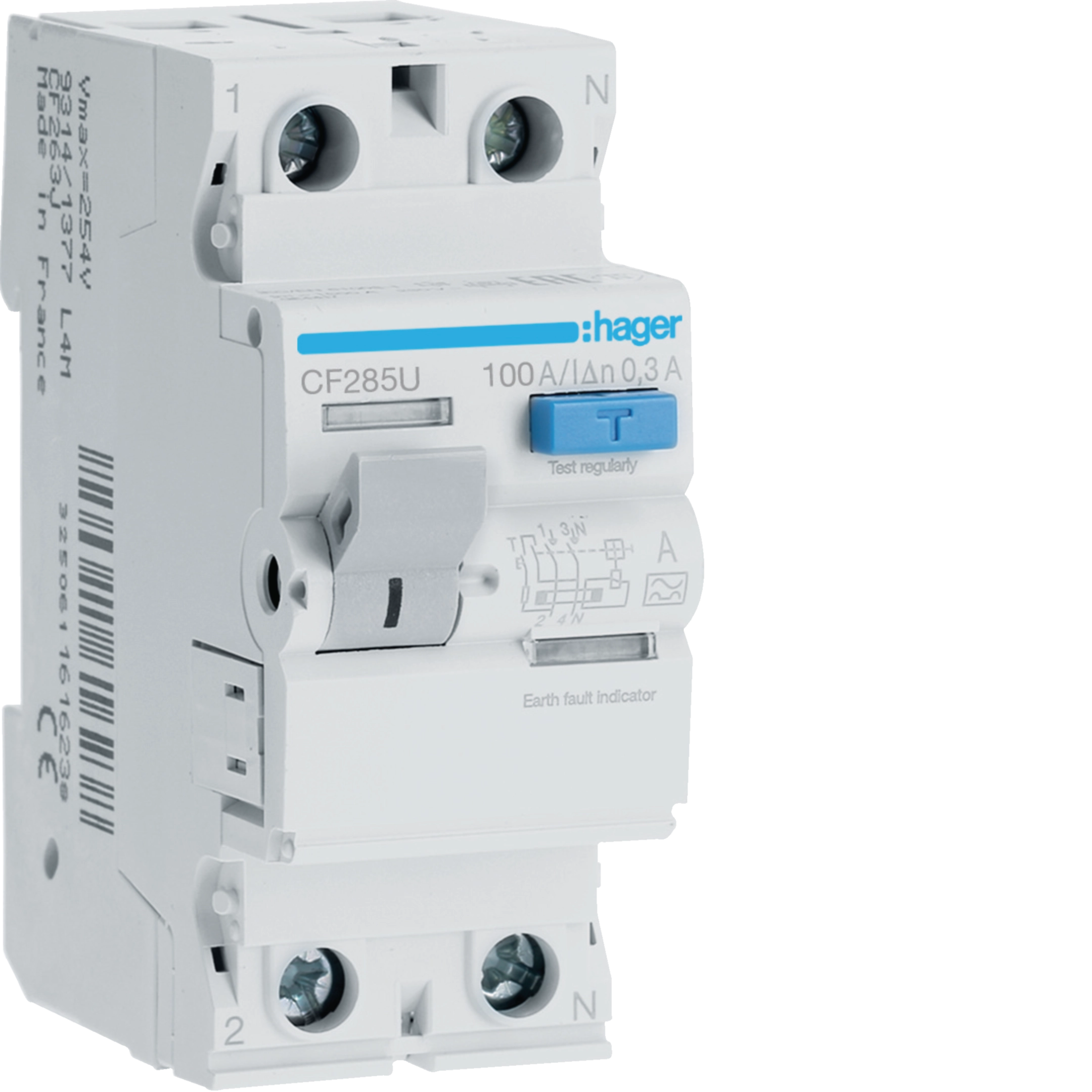

RCCB 2P 100A 300mA A CF285U
EAN-Nr.
3250611615293
Packaging
1 piece
Price
£276.39
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles2 P
-
Type of pole1P+N
Main electrical features
-
Frequency50 Hz
-
Type of supply voltageAC
Voltage
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated residual operating current300 mA
-
Rated conditional short-circuit current Inc according to EN 61008-16 kA
Electric current / temperature
-
Rating current 30°C100 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product83 mm
-
Width of installed product35 mm
Power
-
Total power loss under IN14.3 W
Tripping
-
Short-time delayed trippingNo
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations4000
Installation, mounting
-
Tightening torque3,3Nm
Connection
-
Type of connectionwith screw
Equipment
-
Can be accessorizedYes
Standards
-
Standard textEN 61008-1
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…40 °C
