The Hager 400A 12 Way 125A Outgoers Glazed distribution board provides reliable indoor power distribution. With 400A incomer and 12 outgoing ways up to 125A, it suits commercial loads. Steel IP30 IK05 enclosure in RAL7035 with transparent glazed door for easy inspection and barrel/key lock security. Includes neutral and earth bars. Surface mounted, 1400×900×220 mm, Class III insulation.

EAN-Nr.

3250611037507

Packaging

1 piece

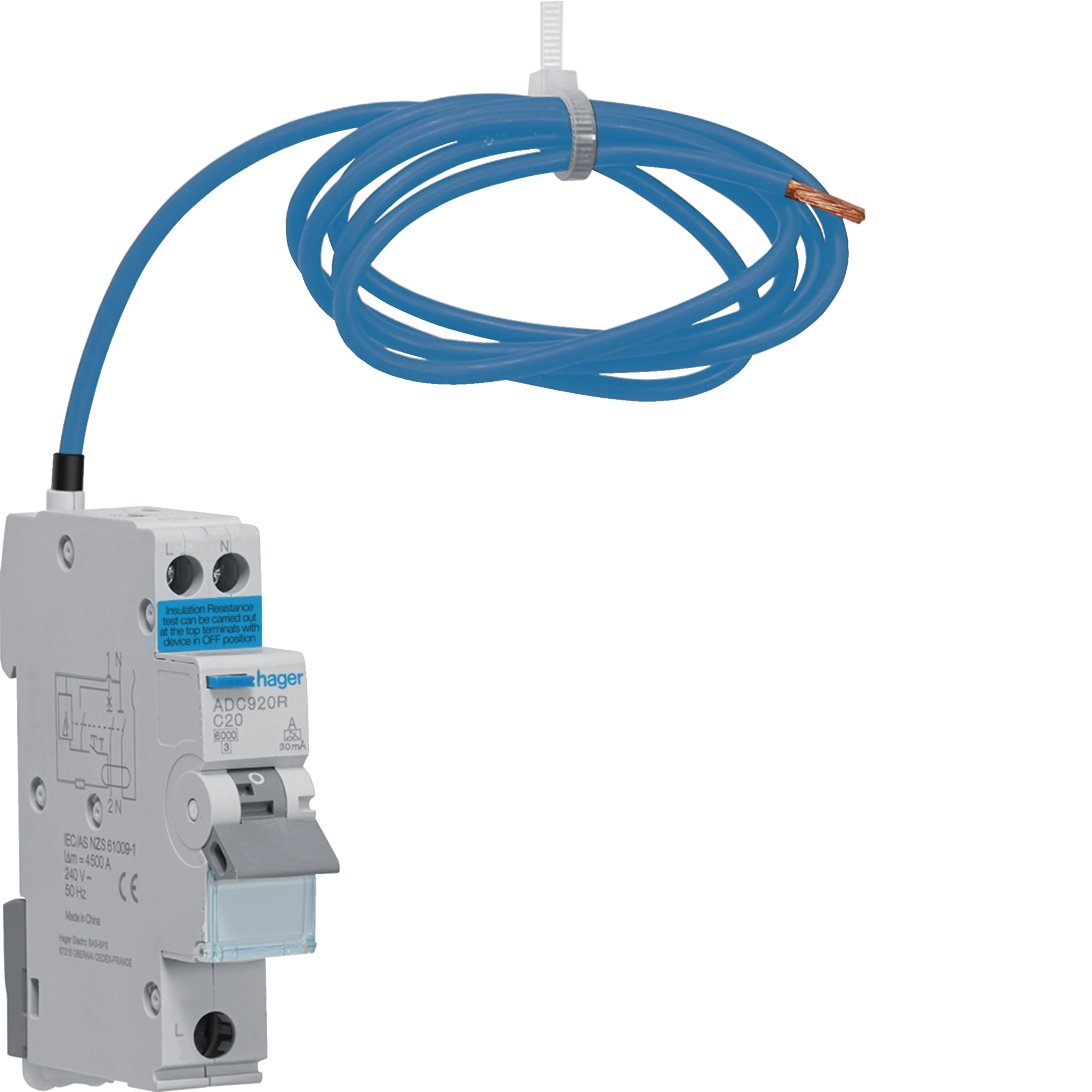

Residual current circuit breakers with overcurrent protection (RCBO)

Panelboard 400A 12-way 125A outgoers glazed door IP30 IK05 surface mount ADC920R

Name: ADC920R
Brand: Hager
SKU: ADC920R1
Price: 44.38 GBP

Price

£44.38

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

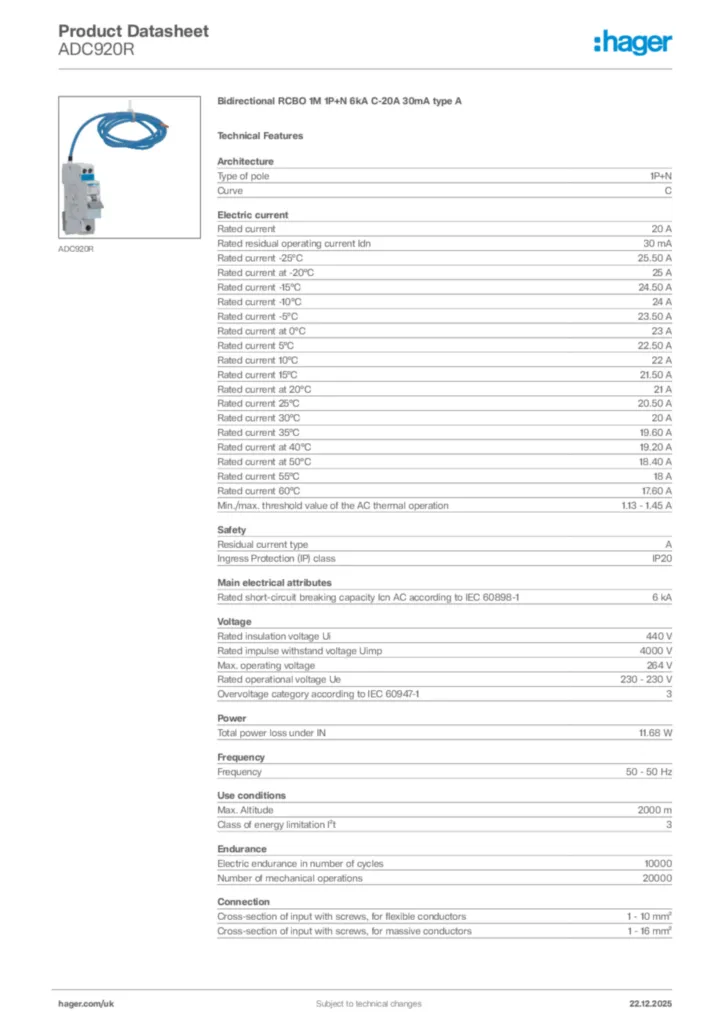

Download the sheet

Complete your system

Locking interlocking functions 1 products available

Technical characteristics

Type of pole

1P+N
Number of protected poles

1
Curve

C

Rated current

20 A
Rated residual operating current Idn

30 mA
Rated current -25°C

25.50 A
Rated current at -20°C

25 A
Rated current -15°C

24.50 A
Rated current -10°C

24 A
Rated current -5°C

23.50 A
Rated current at 0°C

23 A
Rated current 5°C

22.50 A
Rated current 10°C

22 A
Rated current 15°C

21.50 A
Rated current at 20°C

21 A
Rated current 25°C

20.50 A
Rated current 30°C

20 A
Rated current 35°C

19.60 A
Rated current at 40°C

19.20 A
Rated current at 50°C

18.40 A
Rated current 55°C

18 A
Rated current 60°C

17.60 A
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

264 V
Rated operational voltage Ue

230 - 230 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

11.68 W

Frequency

50 - 50 Hz

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

10,000
Number of mechanical operations

20,000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 10 mm²
Cross-section of input and output with screws, for massive conductors

1 - 16 mm²
Cross-section of output with screws, for flexible conductors

1 - 10 mm²
Cross-section of output with screws, for massive conductors

1 - 16 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

85 mm
Width

17.70 mm
Depth

70 mm

Suitable for DIN Rail

Yes
