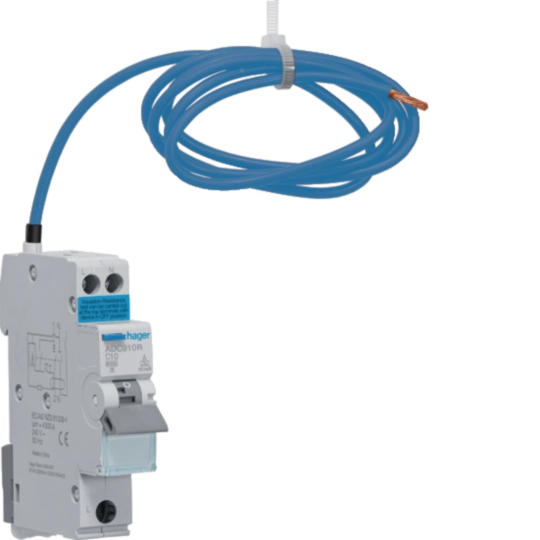

Bidirectional RCBO 1M 1P+N 6kA C-10A 30mA type A ADC910R
EAN-Nr.
3250611037477
Packaging
1 piece
Price
£127.76
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles2 P
-
Type of pole1P+N
-
CurveC
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50 Hz
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage440 V
-
Max operating voltage264 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated residual operating current30 mA
Electric current / temperature
-
Rating current 30°C10 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product85 mm
-
Width of installed product17.7 mm
Power
-
Total power loss under IN4.04 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Equipment
-
Quick connectno
-
Can be accessorizedNo
Standards
-
Standard textIEC 61009-2-2 ; BS 61009-2-2
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…70 °C
Downloads
-
Product image
-
Instruction manual
Instruction manuals for ADC910R
PDF1 MBInstruction manuals for ADC910R
PDF1 MBInstruction manuals for ADC910R
PDF1 MB -
Catalogue
Residential Distribution Catalogue
PDF4 MB -
PEP document
Product environmental profile for ADC910R
PDF327 KB -
RoHS report
Pollutant guidelines for ADC910R
REACH-declaration 2023-10-20 (english)
PDF33 KBPollutant guidelines for ADC910R
RoHS declaration ADC910R (english)
PDF33 KB
More documentation
