RCBO 1P+N 4.5kA C-6A 30mA AC Class ADC806F

Name: ADC806F
Brand: Hager
SKU: ADC806F1
Price: 198.82 GBP

EAN-Nr.

3250611062721

Packaging

1 piece

Price

£198.82

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

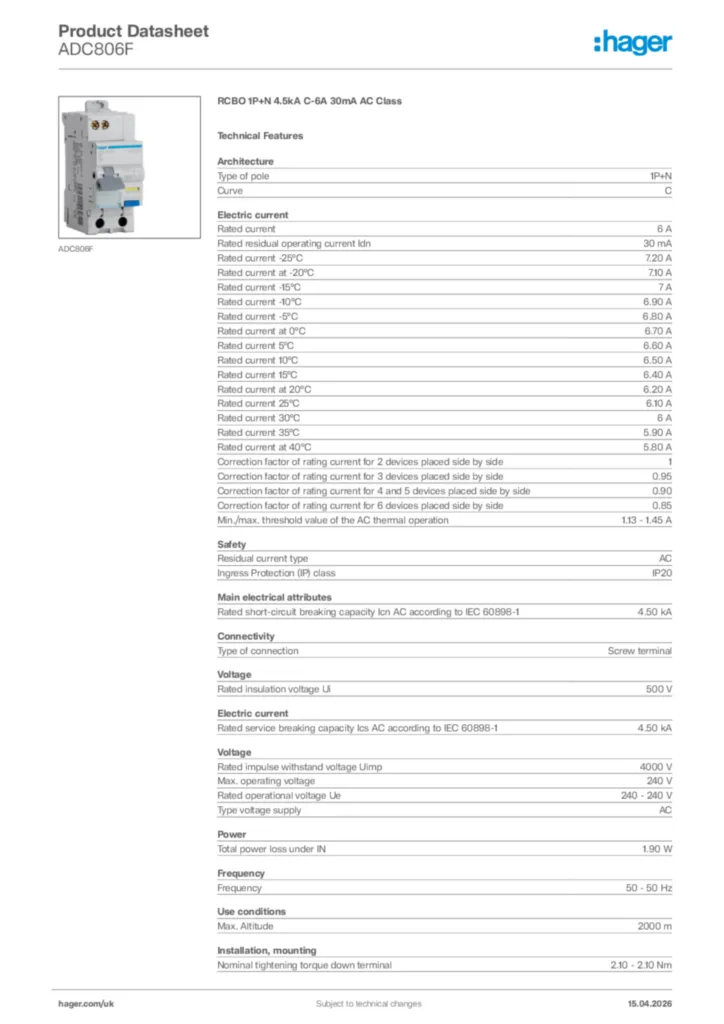

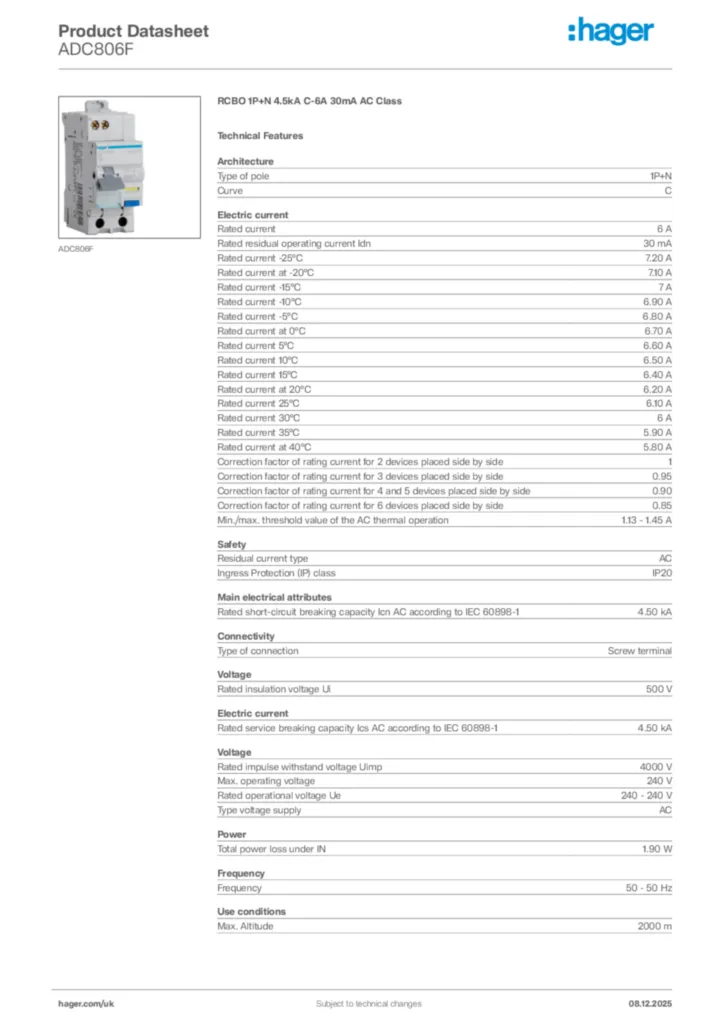

Download the sheet

Complete your system

Optional accessories

Auxiliaries contact block 2 products available
Shunt release 2 products available
Under voltage coil 1 products available
Locking interlocking functions 1 products available
Modular phase busbar 2 products available
See more 1 other products available

Technical characteristics

Type of pole

1P+N
Curve

C

Residual current type

AC
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

4.50 kA
Nominal tightening torque down terminal

2.10 - 2.10 Nm
Nominal tightening torque top terminal

2.10 - 2.10 Nm

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Type voltage supply

AC

Rated current

6 A
Rated residual operating current Idn

30 mA
Rated current -25°C

7.20 A
Rated current at -20°C

7.10 A
Rated current -15°C

7 A
Rated current -10°C

6.90 A
Rated current -5°C

6.80 A
Rated current at 0°C

6.70 A
Rated current 5°C

6.60 A
Rated current 10°C

6.50 A
Rated current 15°C

6.40 A
Rated current at 20°C

6.20 A
Rated current 25°C

6.10 A
Rated current 30°C

6 A
Rated current 35°C

5.90 A
Rated current at 40°C

5.80 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated service breaking capacity Ics AC according to IEC 60898-1

4.50 kA

Total power loss under IN

1.90 W

Frequency

50 - 50 Hz

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2,000
Number of mechanical operations

2,000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

2.10 - 2.10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
