Hager Power setup software

For a succ­e­s­sful comm­iss­io­ning, the software guides you to follow the recom­me­nd­at­ions from the calc­u­lation report and to set circuit brea­kers simply, quickly and safely.

From confi­guration to comm­iss­io­ning of a
circuit breaker

What­ever your instal­lation, two rules apply:

zéro un, Hager Comm­iss­io­ning must be carried out in line with the prot­ection sett­ings defined during the design of the instal­lation,

zéro deux, Hager And it must be as simple and as fast as poss­ible.

Our software and comm­iss­io­ning tools help you do this quickly and reli­ably,f rom the web confi­gurator to Hage­rcad, through to the Hager Power setup comm­iss­io­ning software for hw+ open circuit brea­kers and h3+ moulded-case circuit brea­kers.



Download Hager Power Setup

Hager Power setup:
it’s simple

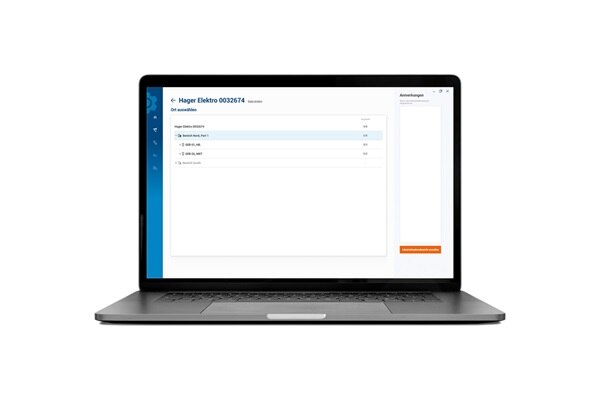

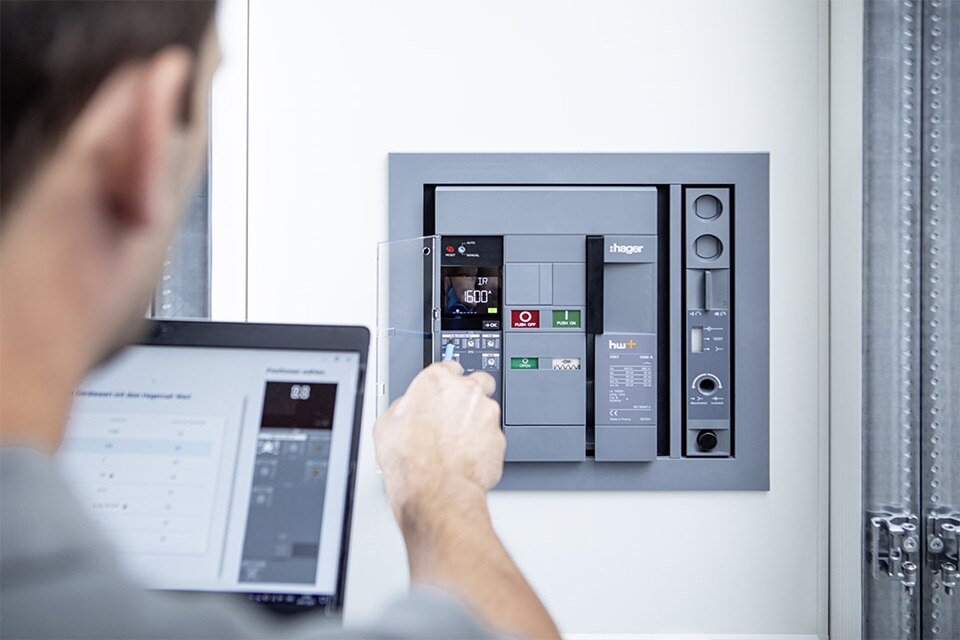

Comm­iss­io­ning assistance

The software shows, step by step, the setting values to enter, in acco­rdance with the calc­u­lation note. This helps reduce the risk of errors and speeds up comm­iss­io­ning.

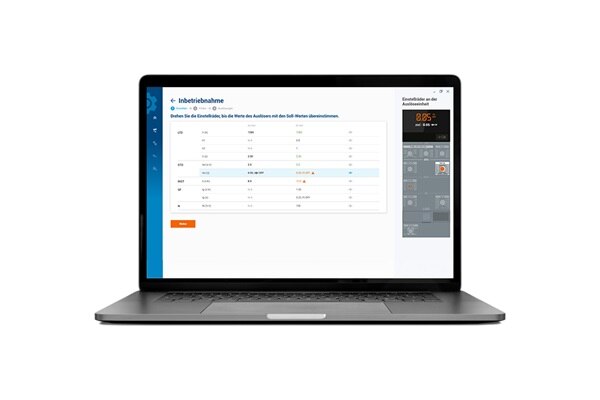

Sett­ings support

Prot­ection sett­ings can be expo­rted from Hage­rcad. Hager Power setup imports the elect­rical schematic structure and the setting values of the diffe­rent devices. It helps you enter the prot­ection param­eters so hw+ and h3+ circuit brea­kers can be comm­iss­ioned.

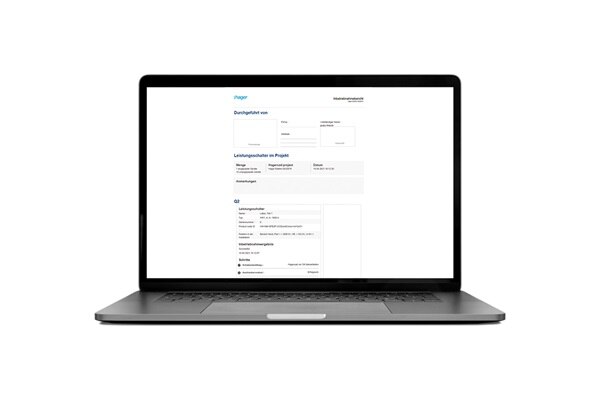

Comm­iss­io­ning report

With Hager Power setup, you can provide proof at any time that the ACBs have been correctly set and that mainte­n­ance is perfo­rmed.

of

Want to know more?

Hage­rcad software

The Hage­rcad software supp­orts you through desi­gning elect­rical schematics, encl­osure/layout and costing, and creating a comp­lete project file. Desi­gning an elect­rical instal­lation has never been easier.

Je découvre

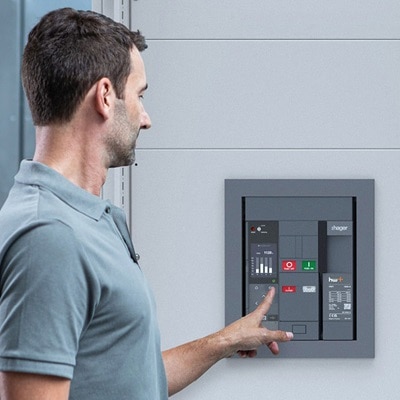

hw+ open circuit brea­kers

hw+ open circuit brea­kers, inte­g­rated into the quadro evo switc­hb­oard system up to 4,000 A, combine maximum power with minimal foot­p­rint. A wide range of options ensures greater flex­i­bility in instal­lation design.
