NCN101A

MCB 1P 10kA/15kA C-1A 1M
EAN
3250614615450
Quantity
1
Trade price*
£19.25 /prt.*
  • Architecture
    • Neutral position
      • without neutral
    • Number of poles
      • 1 P
    • Type of pole
      • 1 P
    • Fixing mode
      • Din-Rail
    • Curve
      • C
  • Main electrical features
    • Rated operational voltage Ue
      • 230 / 400 V
    • Rated current
      • 1 A
    • Type of supply voltage
      • AC
  • Voltage
    • Rated insulation voltage
      • 500 V
    • Rated impulse withstand voltage
      • 6000 V
  • Electric current
    • Rated service breaking capacity Ics AC according IEC 60898-1
      • 7.5 kA
  • Electric current / temperature
    • Rating current 30°C
      • 1 A
  • Dimensions
    • Depth of installed product
      • 70 mm
    • Height of installed product
      • 83 mm
    • Width of installed product
      • 17.5 mm
  • Power
    • Total power loss under IN
      • 0.13 W
  • Endurance
    • Electric endurance in number of cycles
      • 4000
    • Number of mechanical operations
      • 20000
  • Capacity
    • Number of modules
      • 1
  • Installation, mounting
    • Tightening torque
      • 2,8Nm
  • Equipment
    • Can be accessorized
      • Yes
  • Standards
    • Standard text
      • EN 60898-1
      • IEC 60947-2
    • European directive WEEE
      • concerned
  • Safety
    • Protection index IP
      • IP20
Documentations

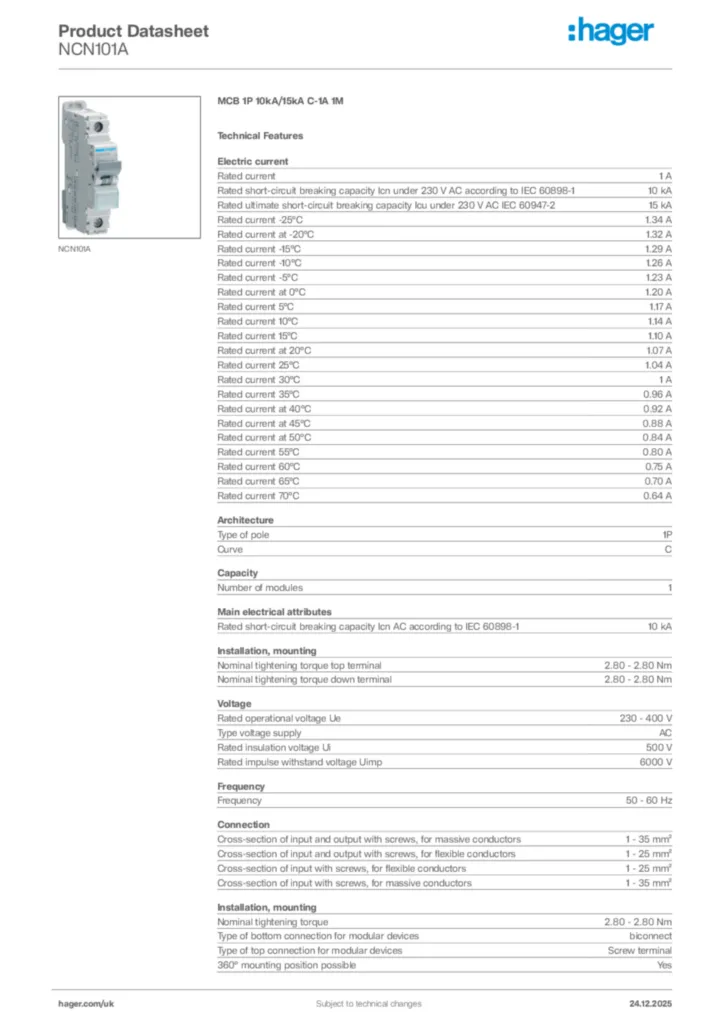

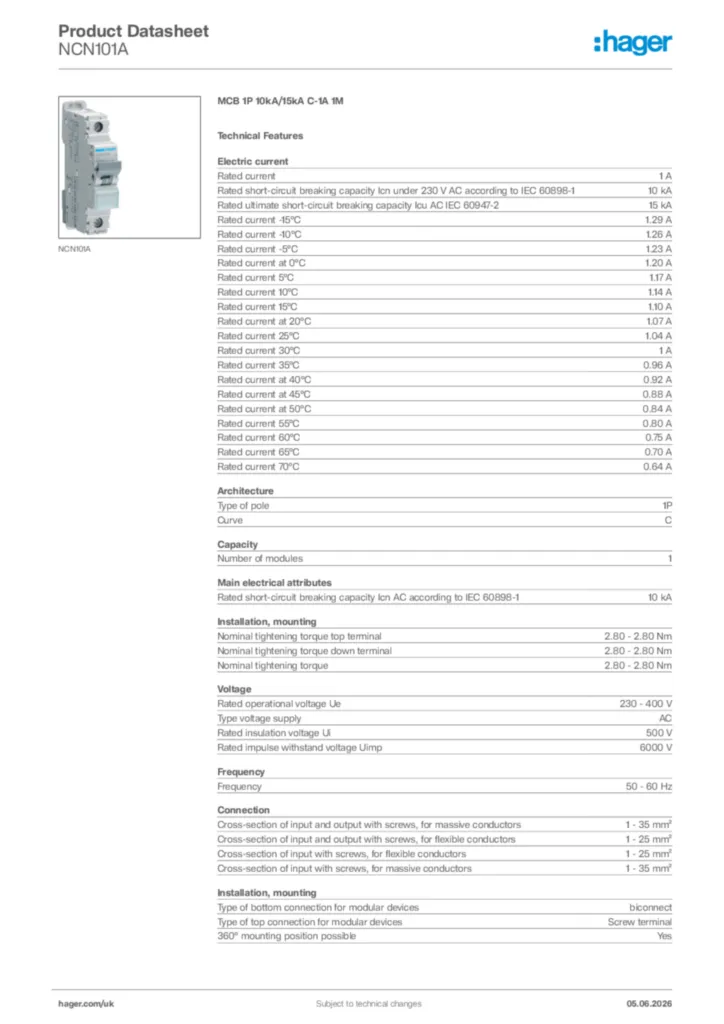

Product data sheets for NCN101A 204 KBPDFDownload
Product environmental profile for NCN101A 432 KBPDFDownload
Commercial Distribution Catalogue 13 MBPDFDownload
