Motor protection circuit breaker 3P 4-6.3A ; 1.1/2.2 kW at 230/415V MM509N
EAN-Nr.
3250614435225
Packaging
1 piece
Price
£186.43
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Emergency stop complete 1 products available -
Empty enclosure for switchgear 1 products available -
Under voltage coil 2 products available -
Auxiliaries contact block 2 products available
Complete your system
-
MZ530N
External emergency stop button
£55.26 / piece*
-
MZ521N
Surface mounting enclosure IP55 for motor starter
£71.29 / piece*
-
MZ529N
Under voltage release for motor starter 400V AC
£50.47 / piece* -
MZ528NUnder voltage release for motor starter 230V AC
£55.28 / piece*
-
MZ527N
Alarm contact for motor starter 2C
£34.83 / piece* -
MZ520NAuxiliary contact for motor starter 1C+1O 230/400V AC
£44.57 / piece*
Technical characteristics
Electric current
-
Rated current6.30 A
Dimensions
-
Height140 mm
-
Width45 mm
-
Depth75 mm
Architecture
-
Control/operation elementShort rotary handle
-
Number of poles3
Voltage
-
Rated impulse withstand voltage Uimp6,000 V
-
Overvoltage category according to IEC 60947-13
-
Type voltage supplyAC
Connectivity
-
Connection type control and aux contactScrew terminal
Equipment
-
SealableNo
-
With auxiliary contactNo
-
With thermal protectionYes
Safety
-
Ingress Protection (IP) classIP20
Installation, mounting
-
Mounting onDIN rail
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

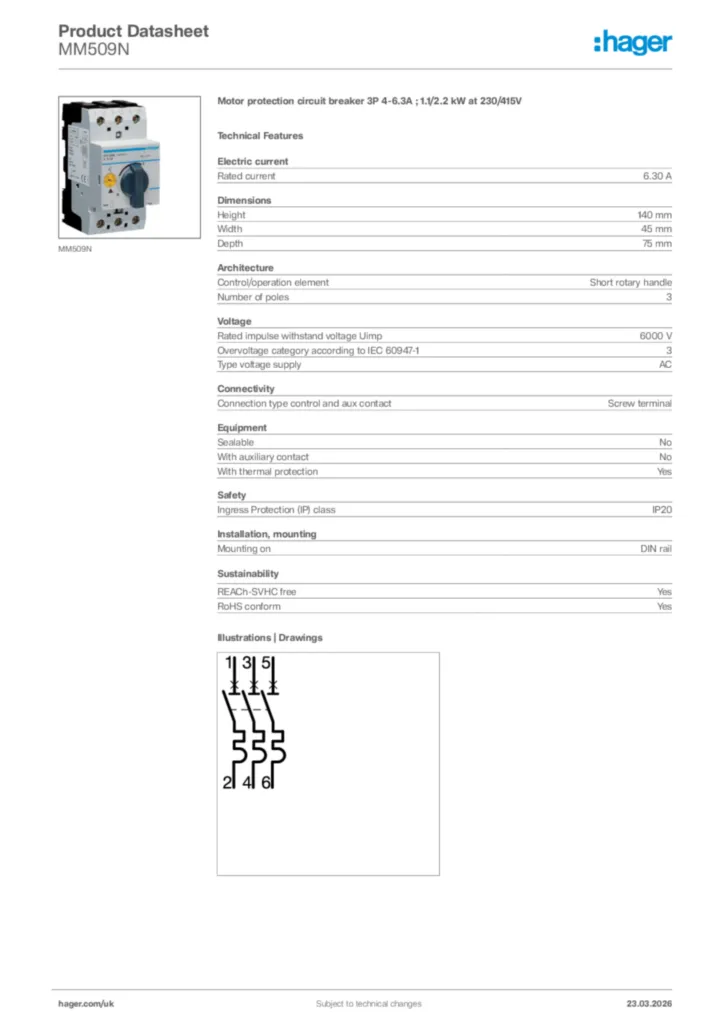

Hager Product data sheet MM509N
Motor protection circuit breaker 3P 4-6.3A ; 1.1/2.2 kW at 230/415V
PDF -
Manual
Manual en-GB 2025-04-10
PDF4,12 MB -
Declaration of conformity
Declaration Of Conformity
Declaration of conformity en-GB 2023-11-07
PDF442,34 kB
Declaration Of Conformity
Declaration of conformity en-GB 2023-11-07
PDF426,64 kB
