Auxiliary contact for motor starter 1C+1O 230/400V AC MZ520N
EAN-Nr.
3250614565106
Packaging
1 piece
Price
£44.57
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 4 products available
Referenced by
-
MM510NMotor protection circuit breaker 3P 6.3-10A ; 2.2/4 kW at 230/415V
£188.20 / piece* -
MM509NMotor protection circuit breaker 3P 4-6.3A ; 1.1/2.2 kW at 230/415V
£186.43 / piece* -
MM508NMotor protection circuit breaker 3P 2.5-4A ; 0.75/1.5 kW at 230/415V
£175.89 / piece* -
MM501NMotor protection circuit breaker 3P 0.1-0.16A ; 0.02/0.03 kW at 230/415V
£174.61 / piece*
Technical characteristics
Electric current
-
Rated current1 A
-
Rated current 230 V AC153.50 A
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeDIN rail adapter
Capacity
-
Number of modules0.50
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor2.5 mm²
-
Cross-section rigid conductor2.5 mm²
Voltage
-
Rated insulation voltage Ui690 V
-
Rated impulse withstand voltage Uimp6,000 V
-
Type voltage supplyAC
Frequency
-
Frequency40 - 60 Hz
Endurance
-
Number of mechanical operations100,000
-
Electric endurance in number of cycles50,000
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 80 °C
Power
-
Total power loss under IN0.04 W
Dimensions
-
Width9 mm
-
Depth68 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

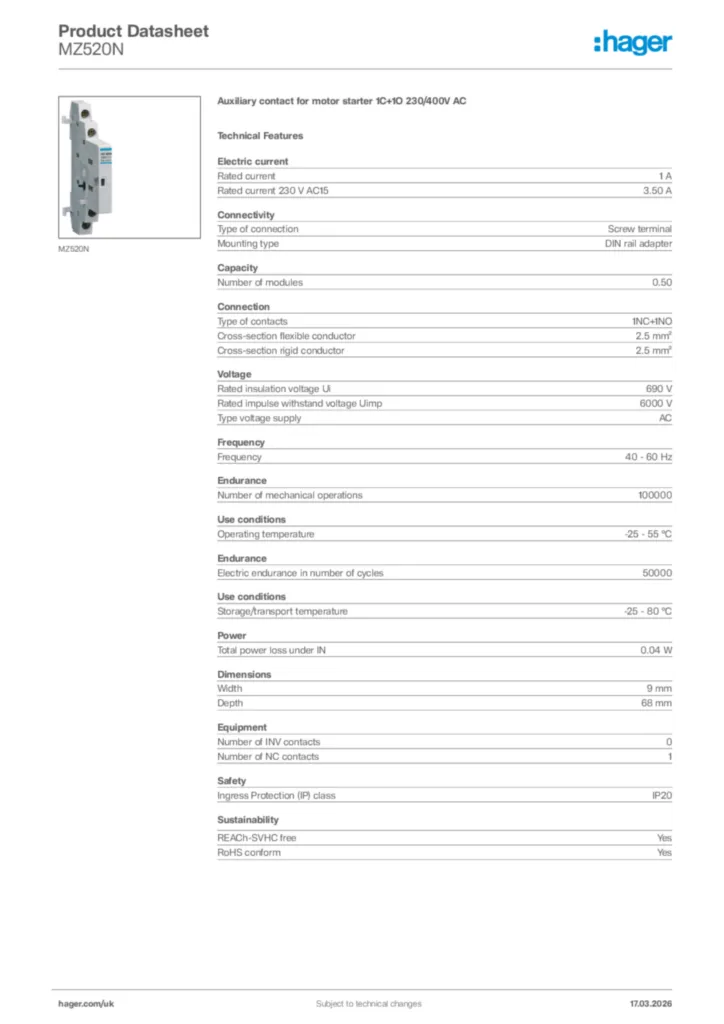

Hager Product data sheet MZ520N
Auxiliary contact for motor starter 1C+1O 230/400V AC
PDF -
Manual
Manual en-GB 2025-04-10
PDF4,12 MB -
Declaration of conformity
Declaration Of Conformity
Declaration of conformity en-GB 2023-11-07
PDF442,34 kB
Declaration Of Conformity
Declaration of conformity en-GB 2023-11-07
PDF426,64 kB
