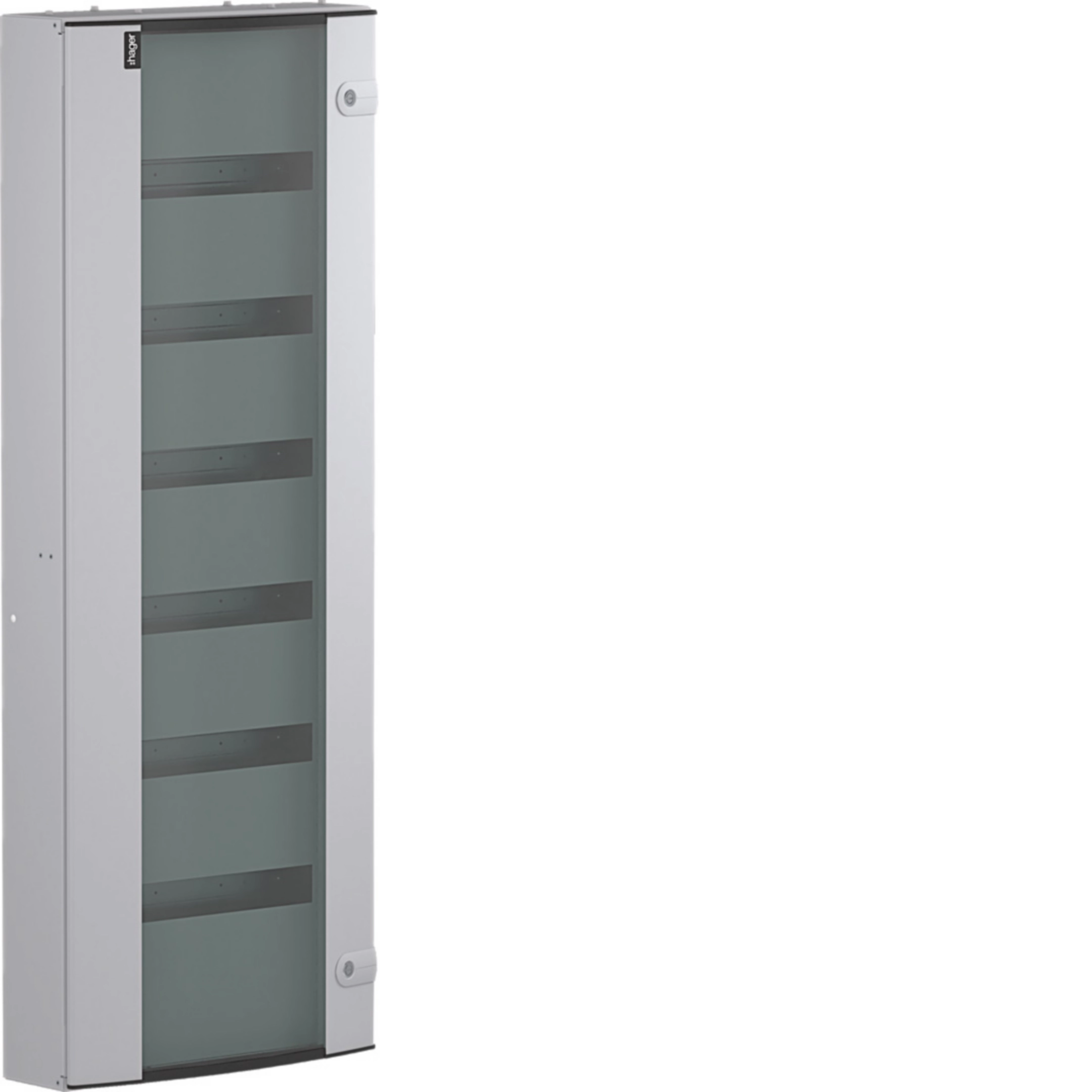

JK216 96 Module Side DIN Box Glazed JK216BDFG
EAN-Nr.
5015652258049
Packaging
1 piece
Price
£551.55
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Transition cover section for installation duct 2 products available
Complete your system
-
JK06TK
Trunking Kit for TPN 6"
£158.72 / piece* -
JK04TKTrunking Kit for TPN 4"
£111.70 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
Number of rows6
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Capacity
-
Number of modules96
Dimensions
-
Height1,250 mm
-
Width465 mm
-
Depth165.50 mm
-
Number of width units96
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP3X
-
Locking typeKey lock, Quarter turn lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

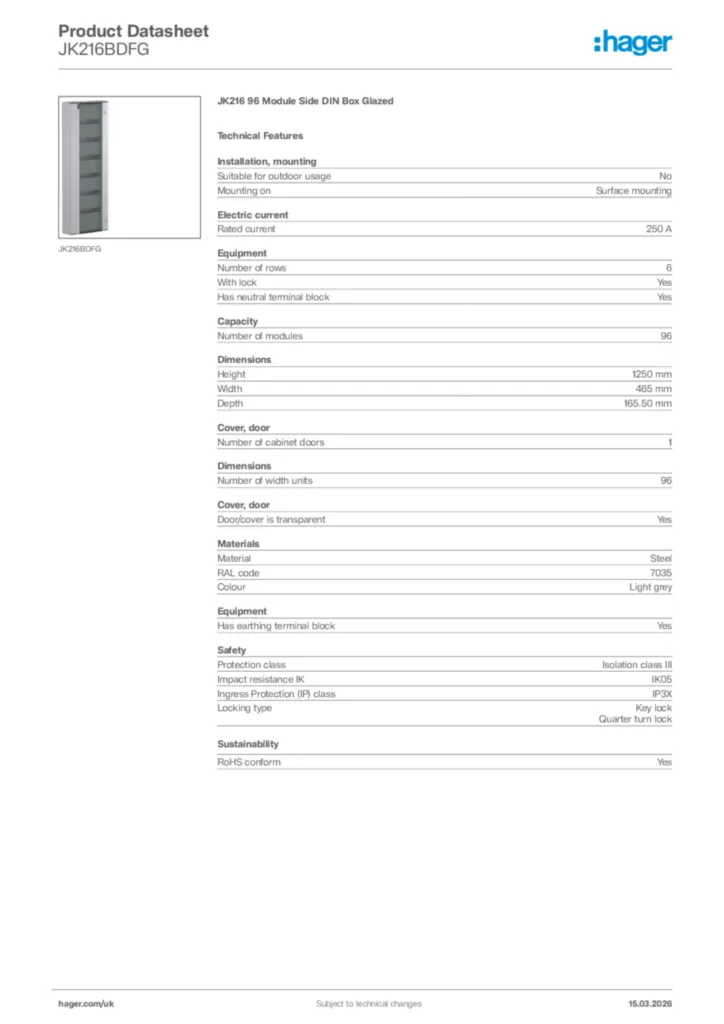

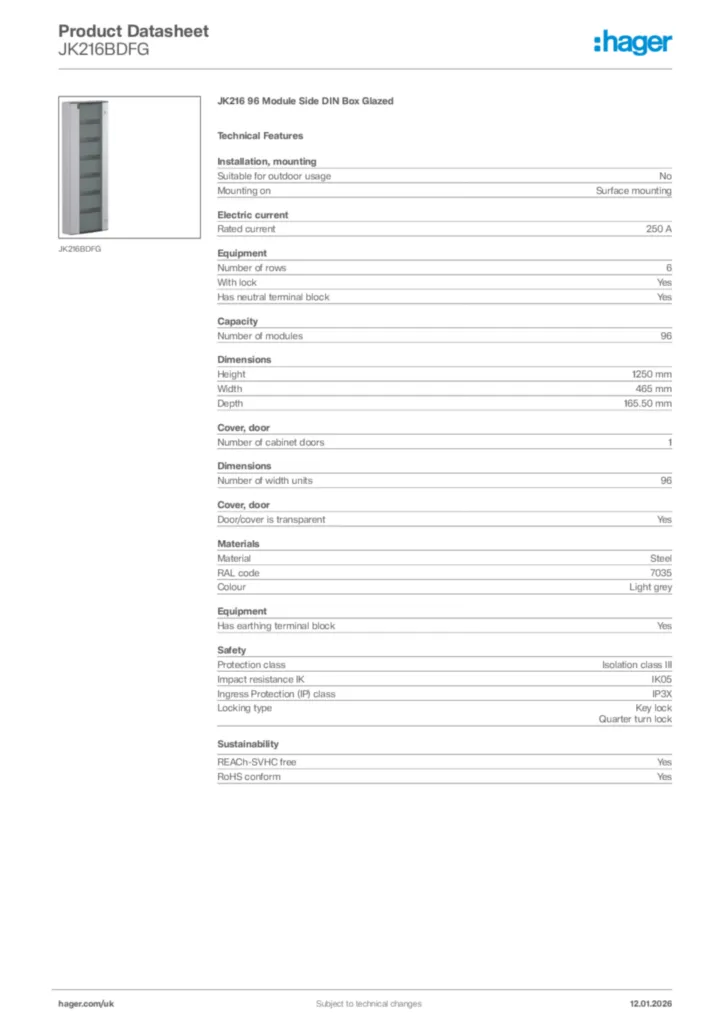

Hager Product data sheet JK216BDFG
JK216 96 Module Side DIN Box Glazed
PDF -
BIM Revit objects
Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,30 MB
Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,28 MB
Range Typ.B TP&N 250A Side DIN Enclosures -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,29 MB
Range Typ.B TP&N 250A Side DIN Enclosures -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,27 MB -
Product data sheet
UK_CD_TDS_PrimaryBoardSideDINboxes.pdf
Technical data sheet including dimensions for primary boards and side DIN boxes.
PDF104,42 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB
Declaration of conformity International 2023-12-20
PDF278,56 kB
Declaration of conformity International 2023-12-20
PDF288,18 kB
Declaration of conformity International 2023-12-20
PDF248,06 kB
Declaration of conformity International 2023-12-20
PDF253,91 kB
