JK108BD - 125A 8 Way IP65 Metal TPN Board

JK108BD - 125A 8 Way IP65 Metal TPN Board

125A 8 Way IP65 Metal TPN Board JK108BD

EAN-Nr.

5015652251620

Packaging

1 piece

£890.32

/ piece *

Technical characteristics
Documentations
More products

Download the sheet

Technical characteristics

Fixing mode

surface-mounting

Depth of installed product

300 mm
Height of installed product

800 mm
Width of installed product

600 mm

Type of door closing

Quarter turn lock
Door locking

with key

Colour

RAL 7035
Colour

beige
RAL colour

RAL 7035 - Light grey
Material

Steel

European directive WEEE

concerned

Downloads

Product image

Product Image JK108BD
Installation handbook

Installation handbooks for JK108BD

JK1**BF/BD

PDF

1 MB
BIM models

BIM models for JK108BD

UK_CD_BIM_TPN.zip

ZIP

1 MB

BIM models for JK108BD

Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 hosted-V2021

RFA

1 MB

BIM models for JK108BD

Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 no hosted-V2021

RFA

1 MB

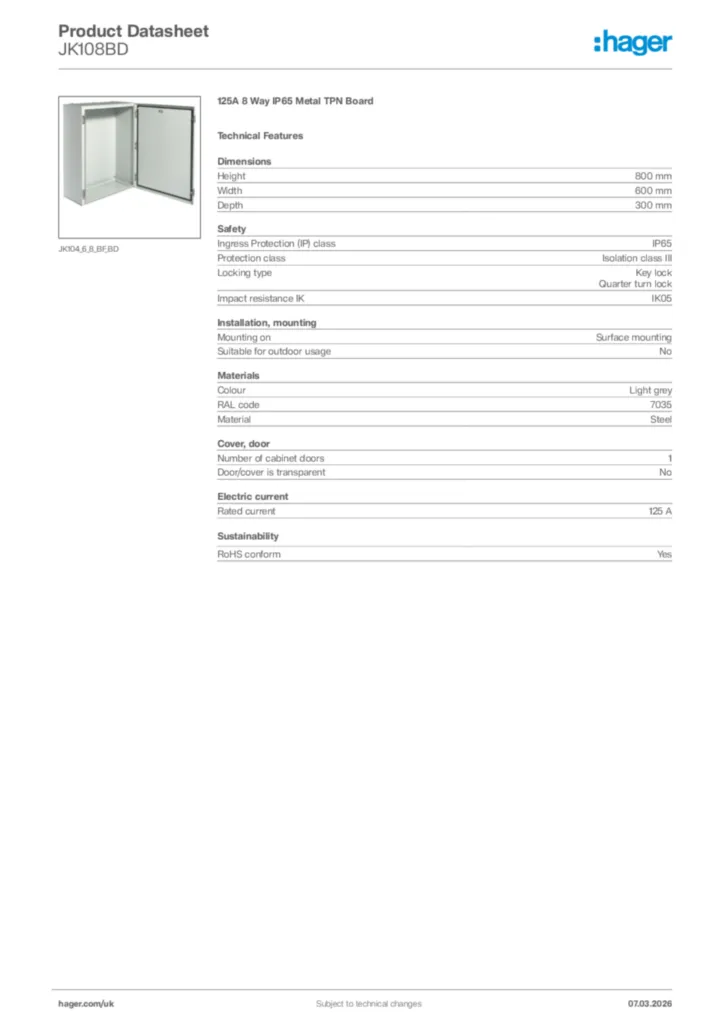

Product datasheet

Product data sheets for JK108BD

PDF

1 MB
Product declaration

EU Declaration of conformity for JK108BD

Declaration

PDF

158 KB

EU Declaration of conformity for JK108BD

Declaration

PDF

152 KB
Product ROHS

Pollutant guidelines for JK108BD

REACH-declaration 2023-10-20 (english)

PDF

32 KB

More documentation
