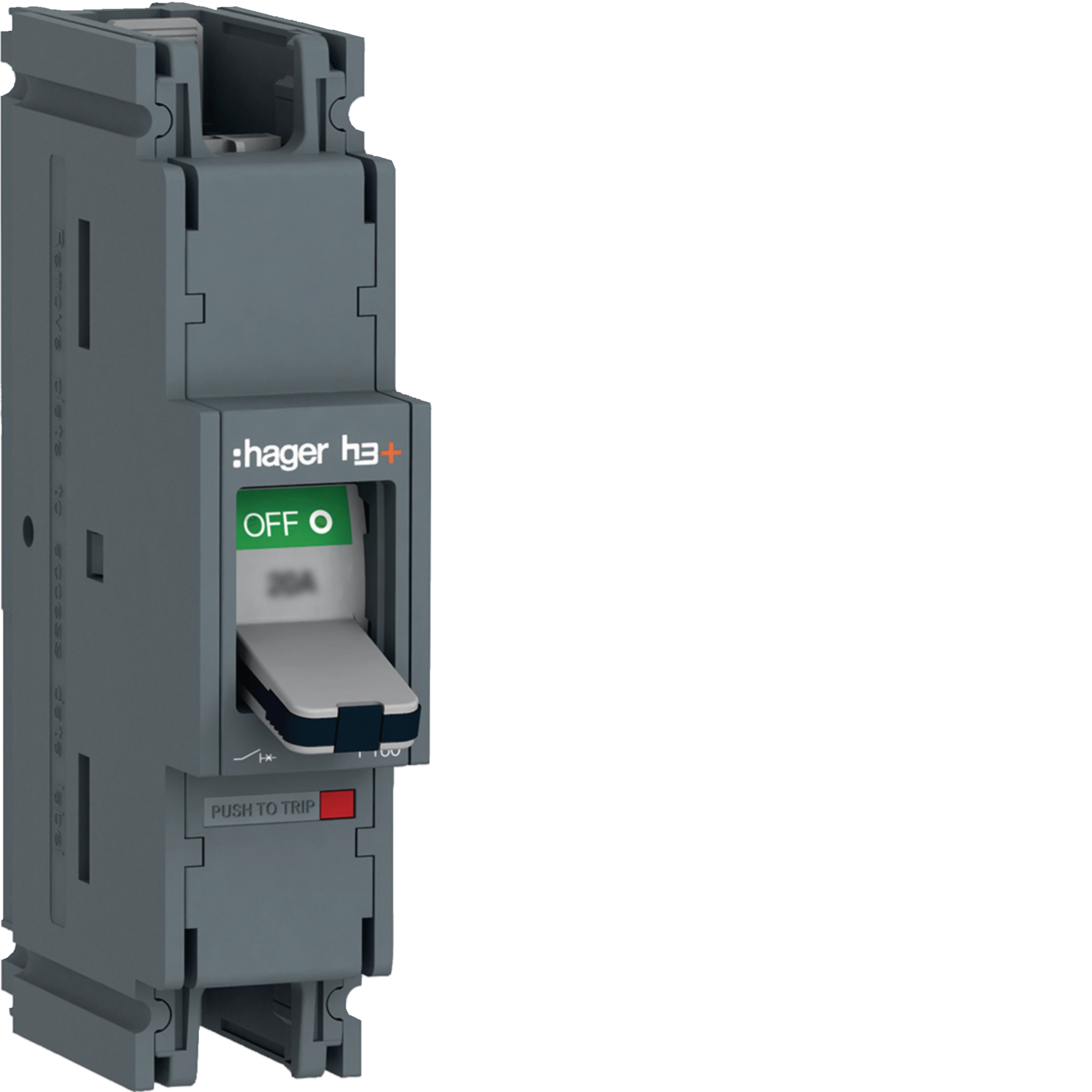

Moulded Case Circuit Breaker h3+ P160 TM FIX 1P1D 63A 25kA CTC HHS061EC
EAN-Nr.
3250613187996
Packaging
1 piece
Price
£232.58
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available
Technical characteristics
Electric current
-
Rated current63 A
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-225 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-220 kA
-
Rated current 10°C according to IEC 6094776.80 A
-
Rated current 15°C according to IEC 6094775.20 A
-
Rated current 20°C according to IEC 6094773.60 A
-
Rated current 25°C according to IEC 6094771.90 A
-
Rated current 30°C according to IEC 6094770.20 A
-
Rated current at 35°C according to IEC 6094768.50 A
-
Rated current at 40°C according to IEC 6094766.70 A
-
Rated current 45°C according to IEC 6094764.80 A
-
Rated current 50°C according to IEC 6094763 A
-
Rated current 55°C according to IEC 6094761 A
-
Rated current at 60°C according to IEC 6094759 A
-
Rated current 65°C according to IEC 6094756.90 A
-
Rated current 70°C according to IEC 6094754.70 A
Architecture
-
Number of poles1
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN5.10 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Safety
-
Ingress Protection (IP) classIP4X
Connectivity
-
Type of connectionScrew terminal
Cover, door
-
InterlockableNo
Settings
-
Thermal protection knob setting xIN1, 1
Dimensions
-
Height130 mm
-
Width30 mm
-
Depth68 mm
Compatibility
-
Compatible with RDC AOBNo
-
Suitable for DIN RailNo
Installation, mounting
-
Mounting-/Connection PositionFront
