Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 18kA CTC HDA014Z
EAN-Nr.
3250613135843
Packaging
1 piece
£168.49
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionwithout neutral
-
Number of poles1 P
-
Type of pole1P1D
Main electrical features
-
Rated operational voltage Ue220 / 240 V
-
Frequency50/60 Hz
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage690 V
-
Rated impulse withstand voltage8 kV
Dimensions
-
Depth of installed product68 mm
-
Height of installed product130 mm
-
Width of installed product25 mm
Power
-
Total power loss under IN1.8 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Installation, mounting
-
Tightening torque6Nm
Connection
-
Connection cross-sect. flexible conductor6 / 70mm²
-
Connection cross-sect. rigid cable6 / 95mm²
-
Type of connectionwith screw
Cable
-
Cable MaterialCu
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Can be accessorizedYes
Standards
-
Standard textIEC 60947-2
Downloads
-
Product image
-
Instruction manual

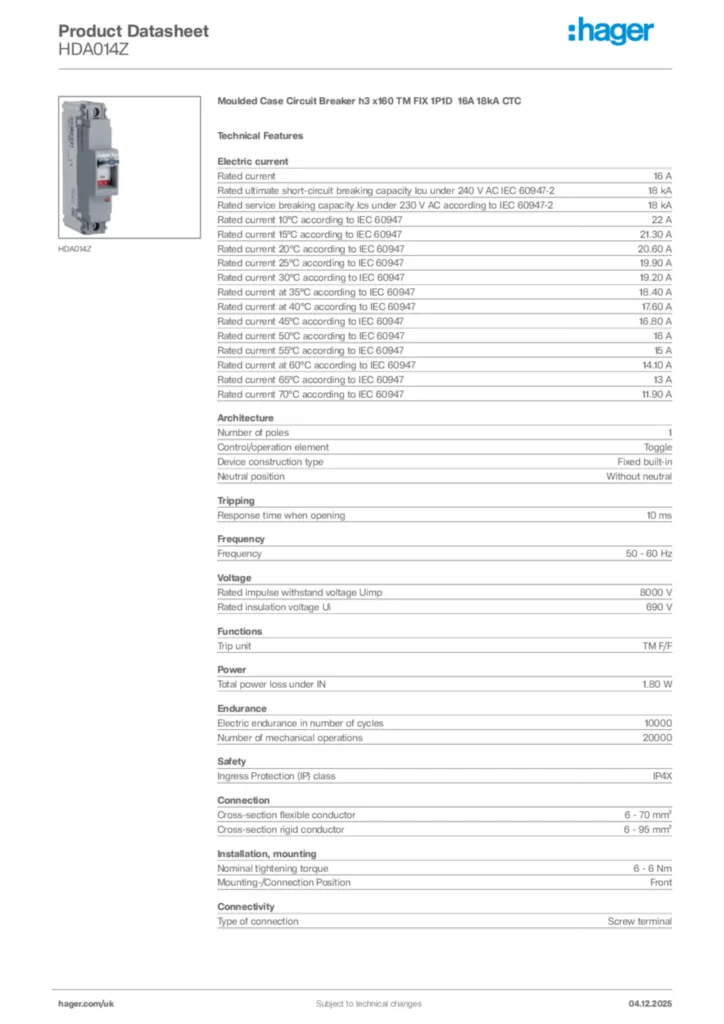

Instruction manuals for HDA014Z
