| EAN | 3250612369522 |
|---|---|
| Unit | PCE |
| Sales status | 3C |
| Device family | EP |
| Rated current | 16 A |
| Height of installed product | 83 mm |
| Rated operational voltage Ue | 250 V |
| With slide for manual switch | Yes |
| Frequency | 50;60 Hz |
| Rated insulation voltage | 250 V |
| Electrical durability at nominal load in AC21in operating cycles | 150000 |
| Frequency (range for ETIM) | 50/60 Hz |
| Command voltage AC | 12 V |
| Total power loss under IN | 2.4 W |
| Pulse duration | 50 ms |
| Inrush power absorbed | 25 VA |
| Winding resistance | 3.1 Ω |
| Rating | 16 A |
| DC control voltage | 0 V |
| Protection index IP | IP20 |
| Storage temperature | -40/80 °C |
| Connection cross-sect. rigid cable | 1,5 ; 10mm² |
| Depth of installed product | 63 mm |
| Quiescent current | 6 mA |
| Number of mechanical operations | 500000 |
| Operating temperature | -5/40 °C |
| Connection cross-sect. flexible conductor | 1 ; 6mm² |
| Quantity of half modules of 17,7mm | 2 |
| European directive WEEE | concerned |
| Type of contacts | 2NO |
| Width of installed product | 17.5 mm |
| Type of connection | with screw |
| Number of modules | 1 |
| Search words | Remote switch;Impulse switch;Pulse switch;Impulse switch for installation in luminaires;Mechanical impulse switch;Rail mounted device;Relay;Impulse relay;Impulse switch for installation in luminaires |
| Type of latching relay | electromechanic |
| Number of contacts | 2 |
| Tightening torque | 1,6Nm |
See more features
Complete your system
- 1
Documentations

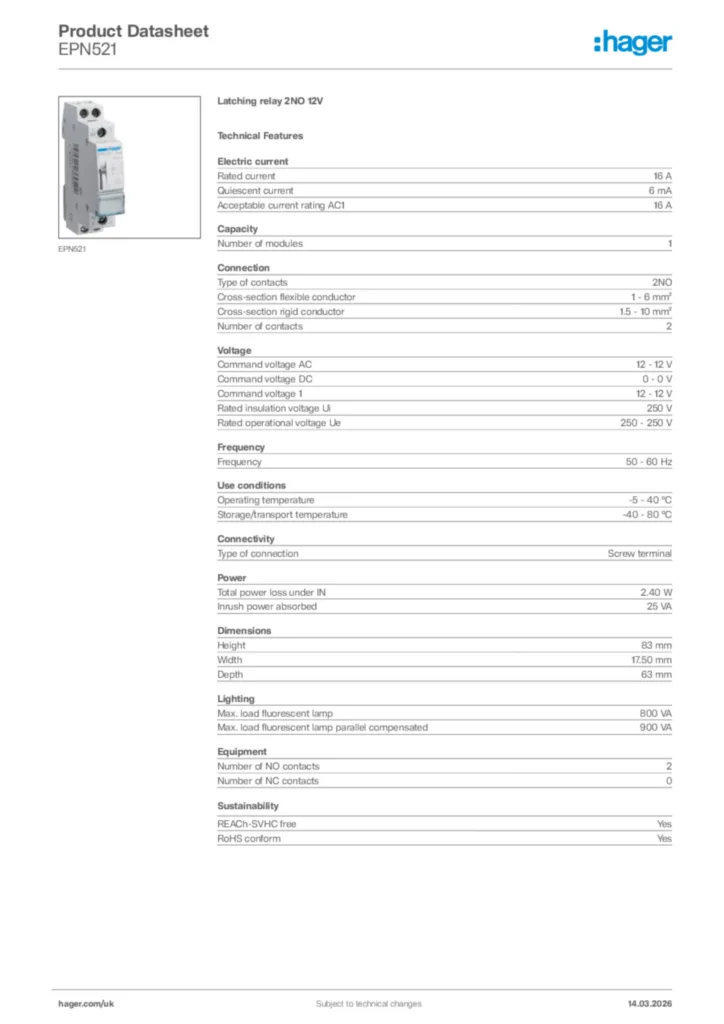

| Product data sheets for EPN521 | 121 kb | Download |
