Auxiliary contact 1NC+1NO EPN051
EAN-Nr.
3250612360550
Packaging
1 piece
Price
£44.92
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 11 products available
Referenced by
-
EPN525Latching relay 2NC+2NO 230V
£144.14 / piece* -
EPN521Latching relay 2NO 12V
£83.92 / piece* -
EPN520Latching relay 2NO 230V
£70.85 / piece* -
EPN524Latching relay 2NO 24V
£68.54 / piece* -
EPN510Latching relay 1NO 230V
£53.11 / piece* -
EPN513Latching relay 1NO 24V
£75.97 / piece* -
EPN515Latching relay 1NC+1NO 230V
£72.72 / piece* -
EPN518Latching relay 1NC+1NO 24V
£77.89 / piece* -
EPN528Latching relay 2NC+2NO 24V
£175.06 / piece* -
EPN540Latching relay 4NO 230V
£116.47 / piece* -
EPN519Latching relay 1NC+1NO 12V
£78.35 / piece*
Technical characteristics
Electric current
-
Rated current2 A
Voltage
-
Rated insulation voltage Ui250 V
Capacity
-
Number of modules0.50
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Type of contacts1NC+1NO
Power
-
Total power loss under IN0.10 W
Dimensions
-
Height83 mm
-
Width8.75 mm
-
Depth58 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

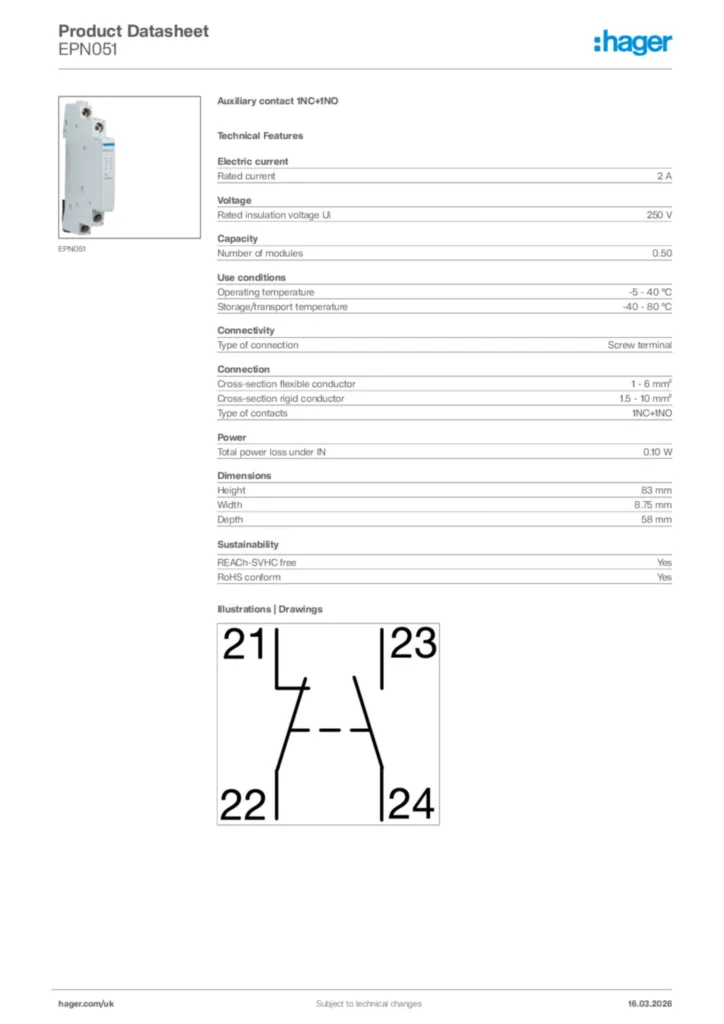

Hager Product data sheet EPN051
Auxiliary contact 1NC+1NO
PDF -
Installation manual
Auxiliaire telerupteur EPN051, EPN053
Installation manual da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
PDF104,04 kB -
Product data sheet
UK_MD_TDS_LatchingRelays.pdf
Technical data sheet including characteristics for latching relays.
PDF121,37 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-07
PDF315,24 kB
Declaration
Declaration of conformity International 2022-11-07
PDF331,38 kB
