1 channel digital time switch weekly cycle EGN103
EAN-Nr.
3250618502435
Packaging
1 piece
Price
£115.81
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Fixing modeDIN rail type O (symmetrical)
Main electrical features
-
Rated operational voltage Ue230 V AC
-
Frequency50/60 Hz
-
Nominal voltage230 V
-
Type of supply voltageAC
Dimensions
-
Depth of installed product61.6 mm
-
Height of installed product90 mm
-
Width of installed product35.8 mm
Power
-
Power consumed0.39 VA
-
Power consumption (operation)350 mW
Fluorescent bulbs control
-
Max. power with fluorescent parallel lamps400 W
-
Max. power fluo. duo lamp comp. series1000 W
Incandescent bulbs control
-
Max. power with incandescent lamps2300 W
Installation, mounting
-
Tightening torque1,2Nm
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1,5 / 10mm²
-
Type of connectionwith screw
-
Number of contacts1
-
Type of contacts1 changeover
-
Type of connectionwith screw terminal
Settings
-
Shortest switching time1 mn
Equipment
-
Type of programmable thermostatDigital
-
Number of channels1
-
Supply failure reserve5 years
Safety
-
Protection index IPIP20
Use conditions
-
Working accuracy± 1,5 s / 24H
Downloads
-

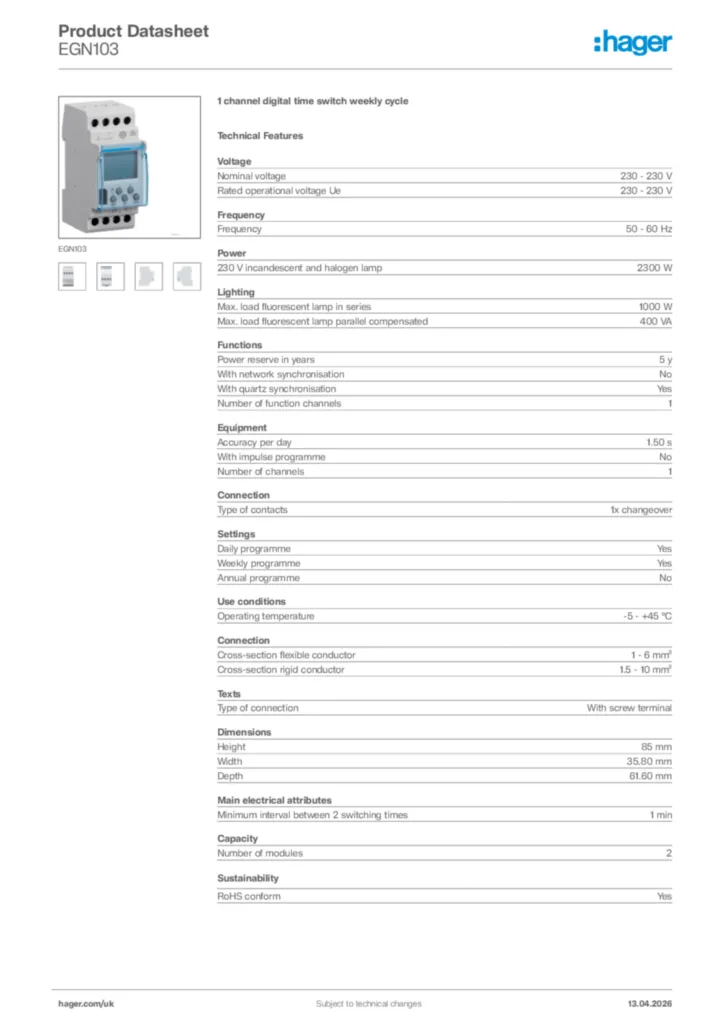

Product image
-
