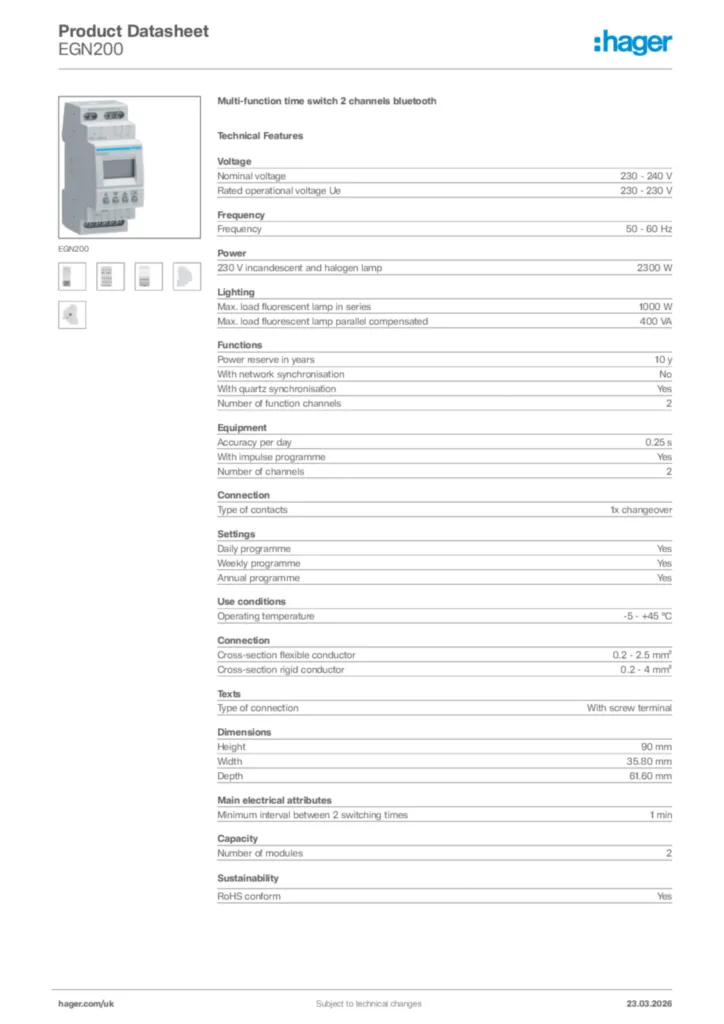

EGN200

Multi-function time switch 2 channels bluetooth
EAN
3250617579919
Quantity
1
Trade price*
£163.98 /prt.*
  • Architecture
    • Fixing mode
      • DIN rail type O (symmetrical)
  • Main electrical features
    • Rated operational voltage Ue
      • 230 V
    • Frequency
      • 50/60 Hz
    • Nominal voltage
      • 230 V
    • Type of supply voltage
      • AC
  • Voltage
    • Operating voltage
      • 230 V AC
  • Dimensions
    • Depth of installed product
      • 61.6 mm
    • Height of installed product
      • 90 mm
    • Width of installed product
      • 35.8 mm
  • Power
    • Power consumed
      • 0.6 VA
    • Power consumption (operation)
      • 350 mW
  • Capacity
    • Breaking capacity
      • 16A 230V AC1
  • Capacity
    • Number of modules
      • 2
  • Battery
    • Power reserve [years]
      • ≈ 10 a
  • Lighting control
    • Brightness measurement range
      • 1 / 2000 Lux
  • Fluorescent bulbs control
    • Max. power with fluorescent parallel lamps
      • 400 W
    • Max. power fluo. duo lamp comp. series
      • 1000 W
  • Incandescent bulbs control
    • Max. power with incandescent lamps
      • 2300 W
  • Installation, mounting
    • Tightening torque
      • 0.5Nm
  • Connection
    • Connection cross-sect. flexible conductor
      • 0.2 / 2.5mm²
    • Connection cross-sect. rigid cable
      • 0,2 / 4mm²
    • Type of load
      • 2362
    • Type of connection
      • with screw
    • Type of contacts
      • 1 changeover
    • Type of connection
      • with screw terminal
  • Settings
    • Shortest switching time
      • 1 mn
  • Equipment
    • Type of programmable thermostat
      • Digital
    • Number of channels
      • 2
    • Supply failure reserve
      • 10 years
    • With holidays program
      • No
    • DCF
      • No
  • Safety
    • Protection index IP
      • IP20
  • Use conditions
    • Operating temperature
      • -5…45 °C
    • Working accuracy
      • 60
Documentations
Product environmental profile for EGN200 439 KBPDFDownload
Instruction manuals for EGN200 6 MBPDFDownload
Instruction manuals for EGN200 1 MBPDFDownload
Instruction manuals for EGN200 2 MBPDFDownload
Instruction manuals for EGN200 1 MBPDFDownload
Instruction manuals for EGN200 1005 KBPDFDownload
Product Attachment for EGN200 1 MBPDFDownload
