Multi-function time switch 1 channel bluetooth EGN100

EAN-Nr.
3250617579902
Packaging
1 piece
Price
£174.61
/ piece *
£174.61
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Multi-function time switch 1 channel bluetooth

EGN100

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

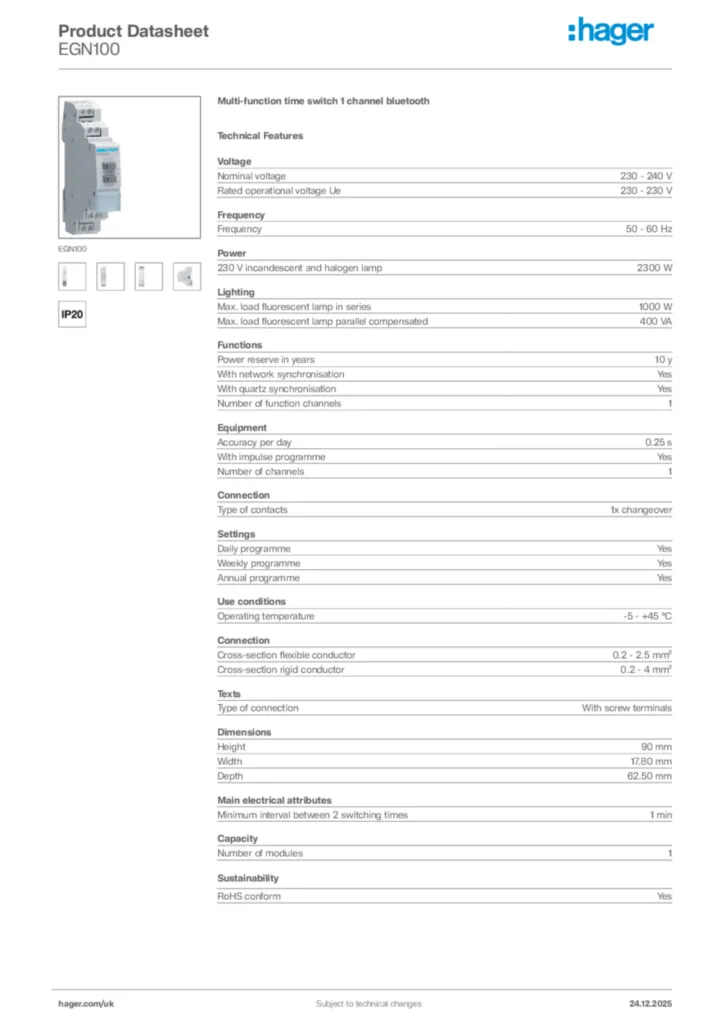

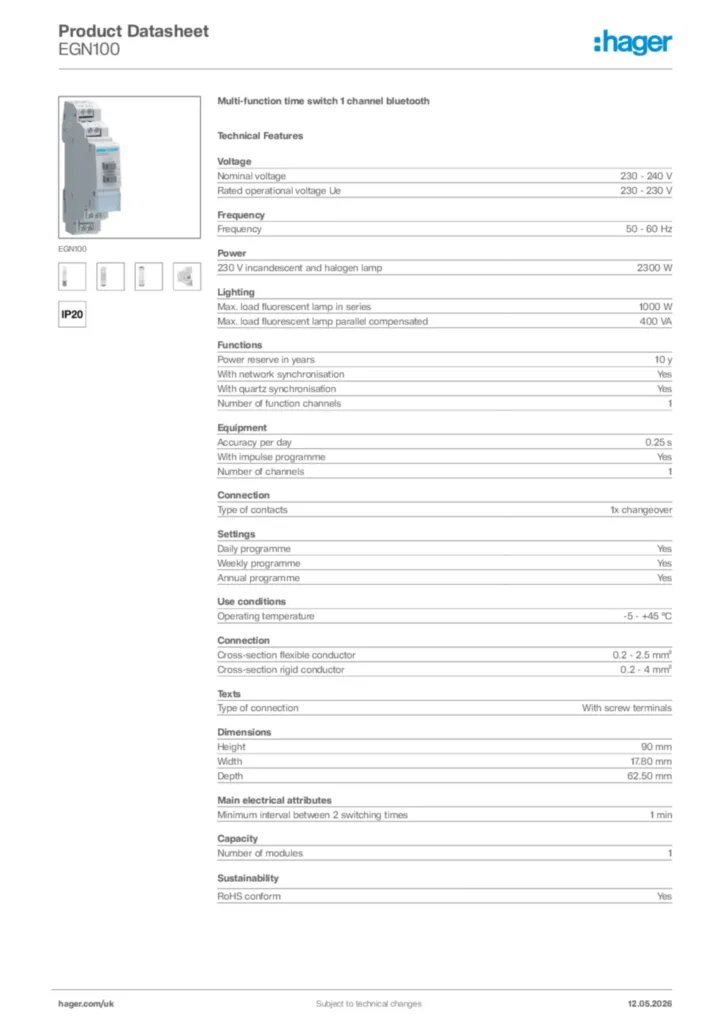

Technical characteristics

Voltage
  • Nominal voltage
    230 - 240 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Frequency
  • Frequency
    50 - 60 Hz
Power
  • 230 V incan­des­cent and halogen lamp
    2,300 W
Lighting
  • Max. load fluor­es­cent lamp in series
    1,000 W
  • Max. load fluor­es­cent lamp parallel compensated
    400 VA
Func­tions
  • Power reserve in years
    10 y
  • With network synchron­isa­tion
    Yes
  • With quartz synchron­isa­tion
    Yes
  • Number of func­tion chan­nels
    1
Equip­ment
  • Accuracy per day
    0.25 s
  • With impulse programme
    Yes
  • Number of chan­nels
    1
Connec­tion
  • Type of contacts
    1x changeover
  • Cross-sec­tion flex­ible conductor
    0.2 - 2.5 mm²
  • Cross-sec­tion rigid conductor
    0.2 - 4 mm²
Settings
  • Daily programme
    Yes
  • Weekly programme
    Yes
  • Annual programme
    Yes
Use condi­tions
  • Oper­ating temper­ature
    -5 - +45 °C
Texts
  • Type of connec­tion
    With screw terminals
Dimen­sions
  • Height
    90 mm
  • Width
    17.80 mm
  • Depth
    62.50 mm
Capa­city
  • Number of modules
    1
Main elec­trical attrib­utes
  • Minimum interval between 2 switching times
    1 min

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration EGN100
PDF
RoHS report EGN100
PDF

Downloads

  • Product image

    Image EGN100 | Hager

    Product Image EGN100

  • Installation manual

    Image Installation manual en-GB 2020-11-24 | Hager

    Installation manual en-GB 2020-11-24

    PDF
    1,13 MB

  • Product attachment

    Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

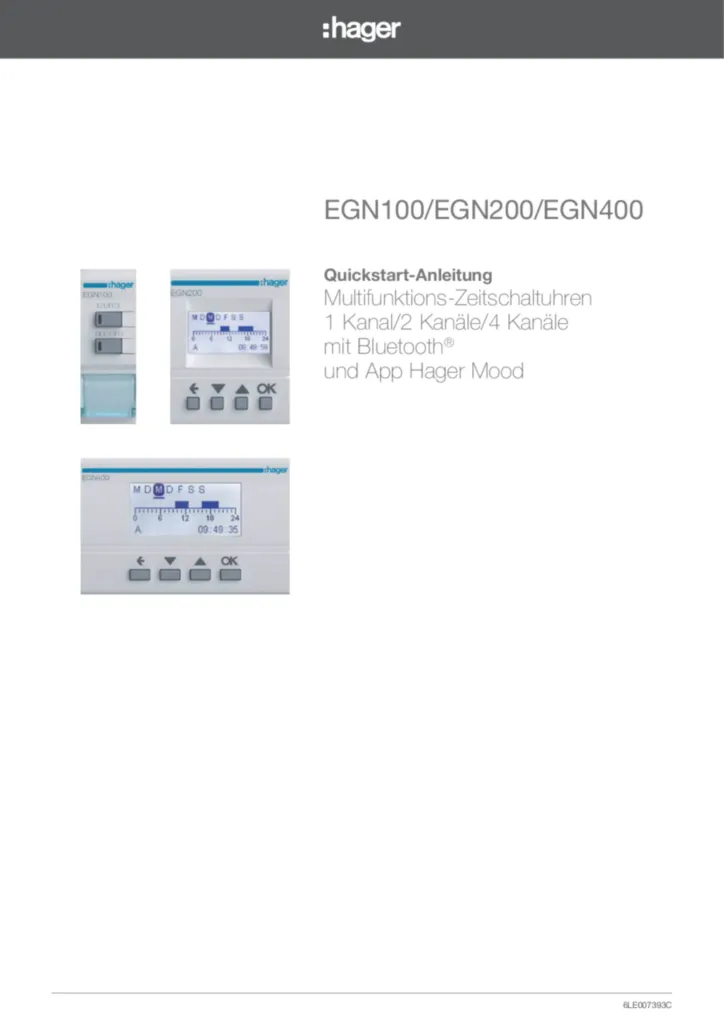

    Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

    Product attachment International 2020-01-01

    PDF
    1,18 MB

  • Manual

    Image Manual en-GB 2020-11-24 | Hager

    Manual en-GB 2020-11-24

    PDF
    1,13 MB
    Image Manual en-GB 2022-06-24 | Hager

    Manual en-GB 2022-06-24

    PDF
    7,29 MB
    Image Manual fr-FR 2022-06-28 | Hager

    Manual fr-FR 2022-06-28

    PDF
    7,52 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-04-01

    PDF
    122,35 kB
    Image Declaration of conformity International 2023-04-19 | Hager

    Declaration of conformity International 2023-04-19

    PDF
    270,51 kB
    Image Declaration of conformity International 2023-04-19 | Hager

    Declaration of conformity International 2023-04-19

    PDF
    316,29 kB
