IP55 Motion Detector Comfort 220/360° White EE870
EAN-Nr.
3250612258703
Packaging
1 piece
Price
£121.38
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Bus systemWithout
Functions
-
FunctionPresence simulation ; can be used as a single unit, main device or extension unit
Main electrical features
-
Frequency50/60 Hz
Dimensions
-
Height of installed product2.5 m
Power
-
Incandescent bulb power2300 W
Power supply
-
Supply voltage230 V AC
Detection
-
Detection angle220 / 360 °
-
Detection angle360 °
Materials
-
Colourwhite
Lighting control
-
Brightness measurement range5 / 1000 Lux
Installation, mounting
-
Maximum Mounting Height4 m
Connection
-
Connection typequick connect
-
Type of contactscontact floating
-
Type of connectionwith screw terminals
Settings
-
Time delayed range5s to 30 min
-
Settingwith potentiometers for fine adjustment of the response brightness, sensitivity and delay time
Scope of delivery
-
Componentwith fitting material
Safety
-
Protection classisol.class II
-
Protectionwith crawl-under protection
Use conditions
-
Operating temperature-20…55 °C
Downloads
-
Product image
-
Instruction manual
Instruction manuals for EE870
PDF1 MB
Instruction manuals for EE870
Détecteur de mouvement confort 220° 360°
PDF2 MB -
Catalogue
Lighting & Controls
Lighting & Controls Brochure
PDF3 MB -

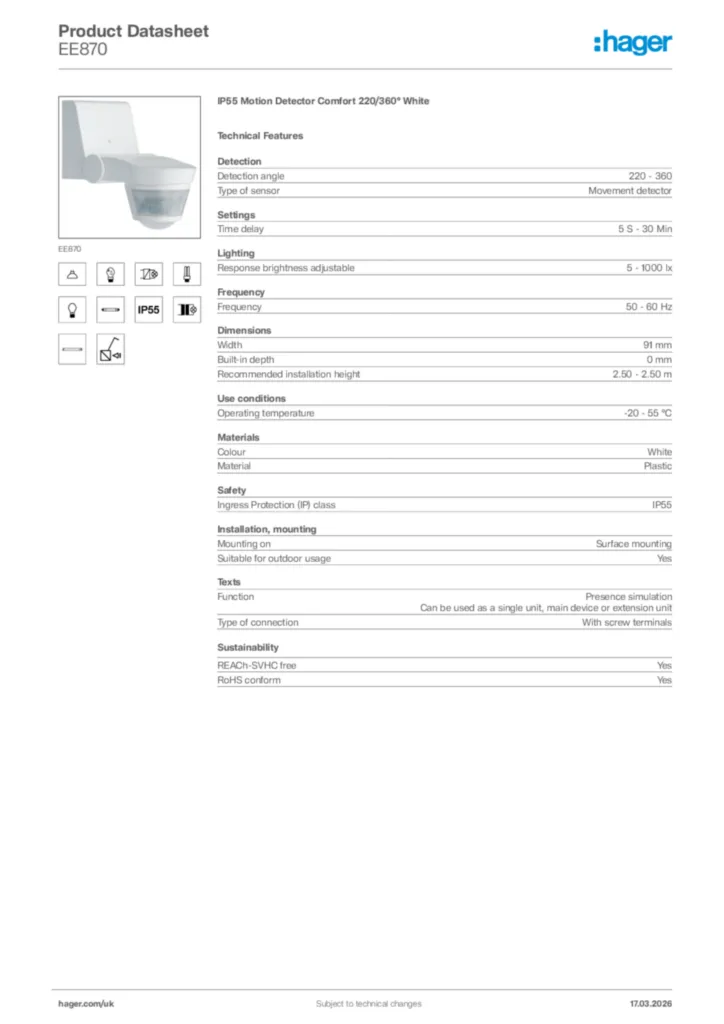

Product data sheet
Product data sheets for EE870
Technical data sheet for motion detector comfort 220º/360º
PDF426 KB -
Declaration of conformity
EU Declaration of conformity for EE870
*
PDF154 KB -
RoHS report
Pollutant guidelines for EE870
REACH-declaration 2023-10-20 (english)
PDF32 KB
Pollutant guidelines for EE870
RoHS-declaration 2023-10-20 (english)
PDF33 KB
More documentation
