Motion detector comfort 220°, IP55, wall mounted, blanc EE860
EAN-Nr.
3250612258604
Packaging
1 piece
£114.24
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Bus systemWithout
Functions
-
FunctionPresence simulation ; can be used as a single unit, main device or extension unit
Main electrical features
-
Frequency50/60 Hz
Dimensions
-
Height of installed product2.5 m
Power supply
-
Supply voltage230 V +10% / -15%
Detection
-
Detection angle220 °
Materials
-
Colourwhite
-
RAL colourRAL 9010 - Pure white
-
Materialplastic
Lighting control
-
Brightness measurement range5 / 1000 Lux
Installation, mounting
-
Maximum Mounting Height4 m
Connection
-
Type of connectionwith screw terminals
Settings
-
Settingwith potentiometers for setting the response brightness and delay time without dismantling
Scope of delivery
-
Componentwith fitting material
Equipment
-
Remote controllableEE806
-
Angle of horizontal detection220 °
Use conditions
-
Operating temperature-20…55 °C
Downloads
-
Product image
-
Instruction manual
Instruction manuals for EE860
PDF1 MB -
Catalogue
Lighting & Controls
Lighting & Controls Brochure
PDF3 MB -

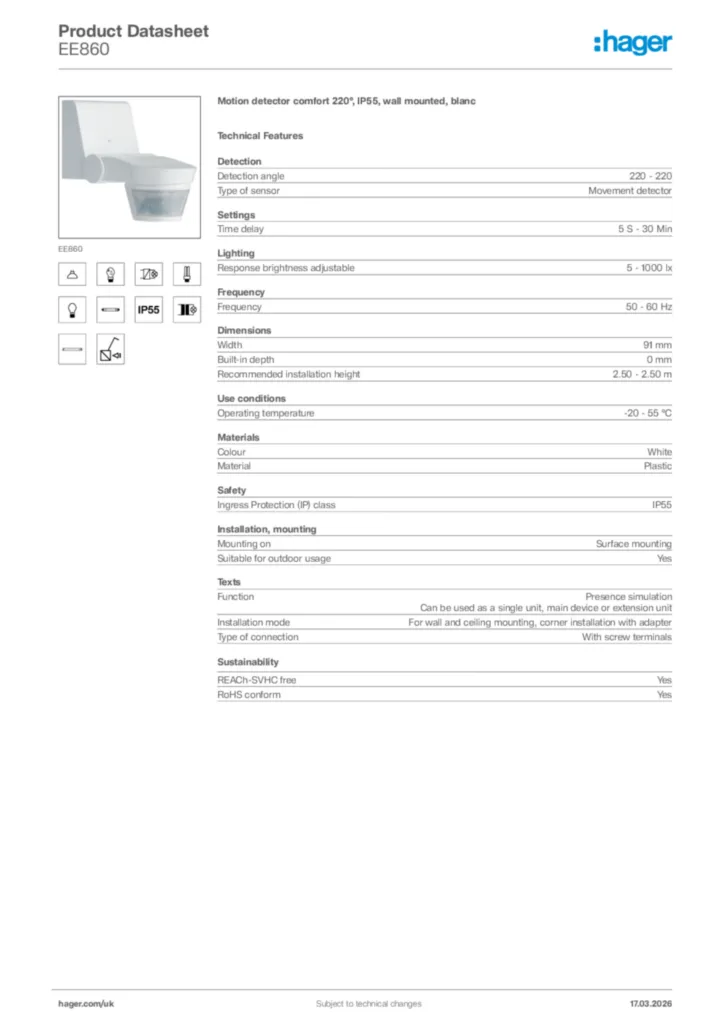

Product data sheet
Product data sheets for EE860
Technical data sheet for IP55 motion detectors comfort 220º
PDF398 KB -
Declaration of conformity
EU Declaration of conformity for EE860
*
PDF135 KB -
RoHS report
Pollutant guidelines for EE860
REACH-declaration 2023-10-20 (english)
PDF32 KB
Pollutant guidelines for EE860
RoHS-declaration 2023-10-20 (english)
PDF33 KB
