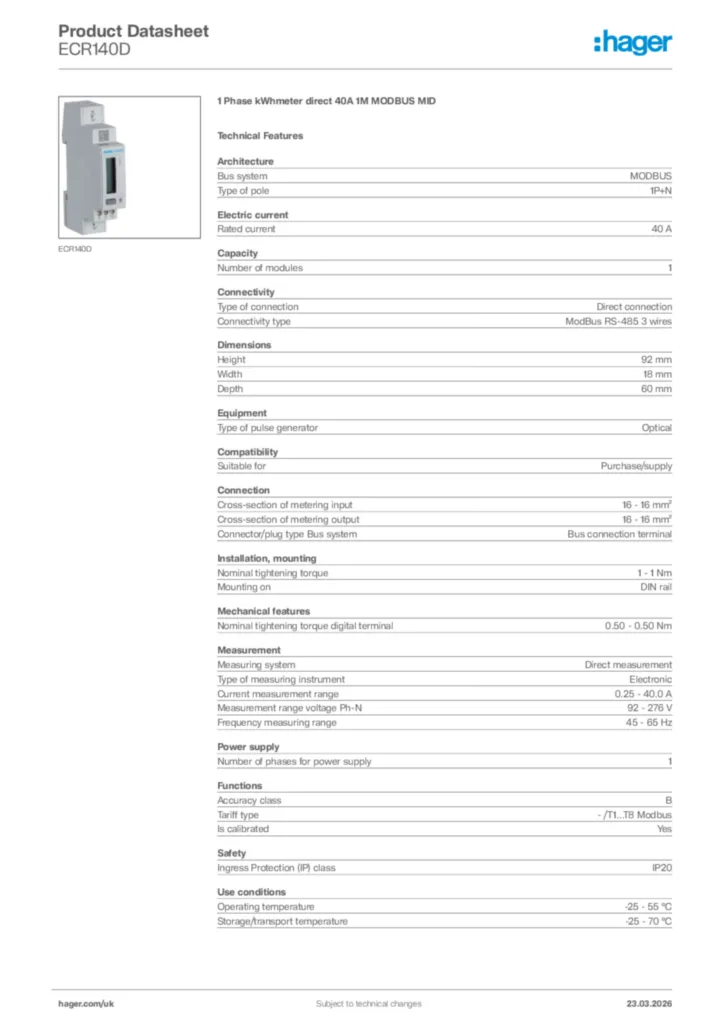

ECR140D

1 Phase kWhmeter direct 40A 1M MODBUS MID
EAN
3250612231423
Quantity
1
Trade price*
£130.38 /prt.*
More Information
Precision classB
Protection classisol.class II
Max. measurement circuit current40 A
Four-quadrants measuring typeNo
Altitude2000 m
Supply voltage 230 V ± 20%
Measurement range of the current (Min, Max)0.25 / 40 A
Power consumed2 VA
Rated current40 A
BackstopYes
Minimum operating current0.02 A
Operating current0.02 / 40 A
calibrated mesure functionYes
CE marking on labelAI2_B5_CE_01.JPG
Width of installed product18 mm
Height of installed product92 mm
Tightening torque1Nm
Compatible with IR communication interfaceNo
Frequency measuring range45/65 Hz
Frequency50 Hz
Overvoltage category according to IEC 60947-13
Display featuresactive energy : 5+2 (0.01....99999.99)
Degree of pollution according to IEC 60664 / IEC 60947-22
Protection index IPIP20
Measured quantitiesV, A, kWh, PF, Hz, kW
Rated operational voltage Ue92 / 276 V
Total power loss under IN1 W
Max temporary current1200 A (10 ms)
Storage temperature-25/70 °C
Operating temperature-25/55 °C
Four-quadrants measuring typeYes
Suitable only for indoor installationYes
Storage/transport temperature-25/70 °C
Wire cross section of metering outgoing wire16 mm²
Wire cross section of metering entrance wire16 mm²
Classification of the product (residential or commercial)Commercial product
Reference voltage P-N230 V AC
Reference frequency50 Hz
Reference current5 A
Depth of installed product60 mm
European directive WEEEconcerned
Precision class reactive power (accord. to IEC 62053-21)2
Precision class reactive energy (accord. to IEC 62053-23)2
Precision class active power (accord. to IEC 62053-21 and IEC 61557-12)1
Max permanent voltage Ph-N276 V AC
Max permanent current40 A
Optical metrological LED5000 Imp/kWh
Operating temperature-25/55 °C
Number of poles2 P
Number of modules1
Fixing modeDIN rail type O (symmetrical)
Mesure voltage range P-N92 / 276 V
Measurement range of frequency45 / 65 Hz
Max permanent voltage Ph-N (1s)300 V AC
Supply voltage P-N92 / 276 V AC
Name and address of the manufacturerHager Electro SAS-BP3-67215 OBERNAI CEDEX-FRANCE
Type of displayLCD
Tarif type- ; T1...T8 Modbus
Type of supply voltageAC
Type of pole1P+N
Type of pulse generatoroptical
Transmission ratio selectableNo
Mounting typedin-Rail
Type of countersingle-phase counter
Max operating voltage300 V
Suitable forPurchase ; supply
Standard textEN 50470-1 ; 3 ; IEC 62053-21 ; 23 ; IEC 61557-12
Product categories described in the W3E directive 2012/19/EUCategory 5
Adjustable parity parameters (odd , even, none)Yes
Adjustable stop bit ( 1 ; 2 )Yes
S0 impulse interfacewithout
Internal termination resistor Modbus (120Ω)No
Principle of measurementDirect measurement
Type of measuring instrumentelectronical
Rated impulse withstand voltage6 kV
EAN3250612231423
UnitPCE
Sales status3C
See more features
