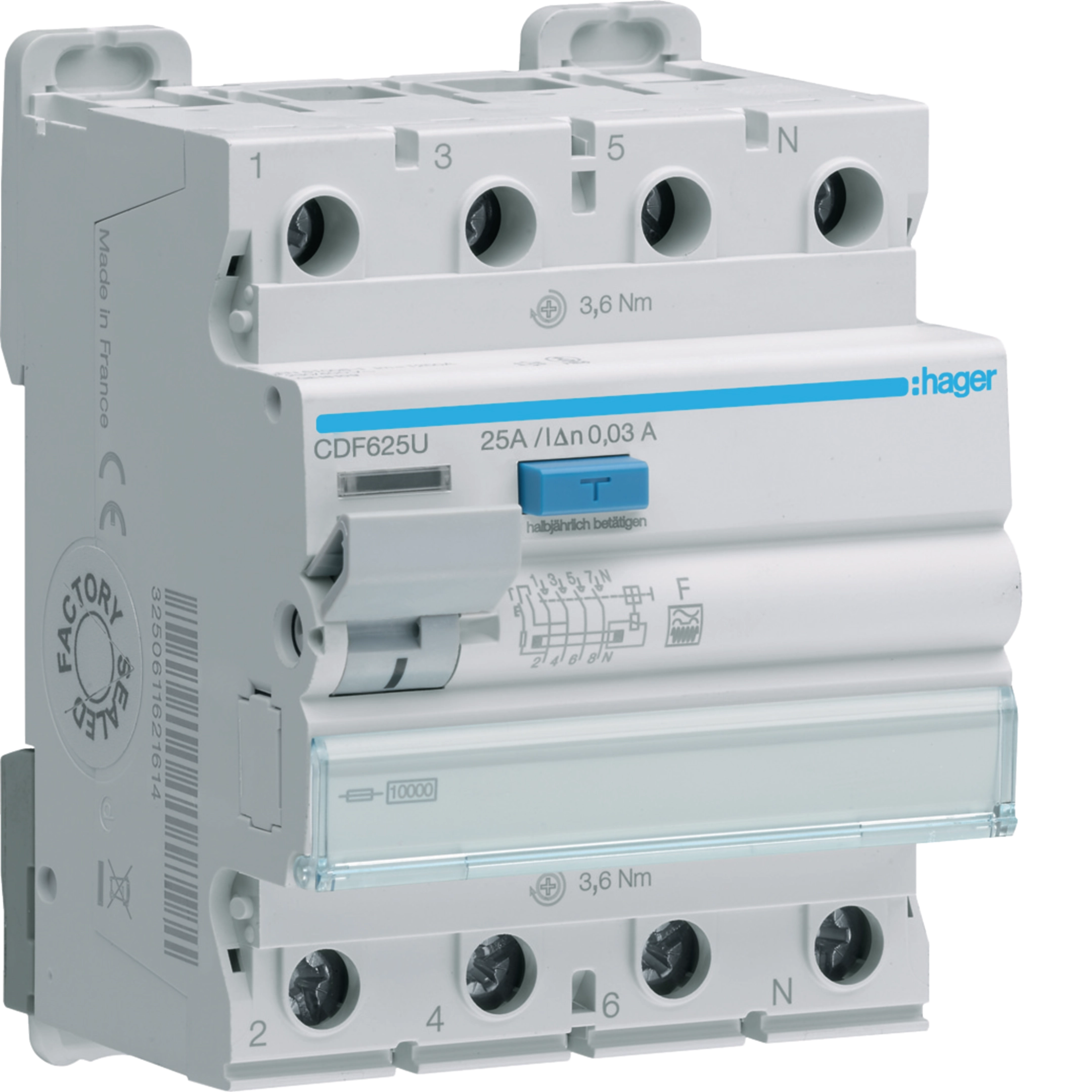

RCCB 3P+N 25A 30mA F CDF625U
EAN-Nr.
3250611623984
Packaging
1 piece
Price
£350.87
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Phase separation functions 1 products available -
See more 2 other products available
Complete your system
-
LZ060
Heat dissipation insert
£9.96 / piece*
-
MZ201
Auxiliary contact 1C+1O 6A 240V AC
£68.07 / piece* -
MZ202Alarm contact 1C+1O 6A 240V AC
£92.10 / piece*
-
MZ203
Shunt trip 230-415V AC 110-130V DC
£68.72 / piece* -
MZ204Shunt trip 24-48V AC 12-48V DC
£68.07 / piece*
-
MZ206
Under voltage release 230V AC
£68.72 / piece*
-
MZN121
1 set of 3 inter-pole barriers for MCB
£45.14 / piece*
-
MZN175Padlockable locking kit for MCB, RCCB and RCBO
£9.58 / piece* -
MZN176Locking wire for modular product
£9.24 / piece*
Technical characteristics
Architecture
-
Type of pole3P+N
Electric current
-
Rated current25 A
-
Rated residual operating current Idn30 mA
-
Breaking and opening capacity Idm1.25 kA
-
Rated conditional short-circuit current Inc according to EN61008-110 kA
-
Rated current -25°C25 A
-
Rated current at -20°C25 A
-
Rated current -15°C25 A
-
Rated current -10°C25 A
-
Rated current -5°C25 A
-
Rated current at 0°C25 A
-
Rated current 5°C25 A
-
Rated current 10°C25 A
-
Rated current 15°C25 A
-
Rated current at 20°C25 A
-
Rated current 25°C25 A
-
Rated current 30°C25 A
-
Rated current 35°C25 A
-
Rated current at 40°C25 A
-
Rated current at 45°C25 A
-
Rated current at 50°C25 A
-
Rated current 55°C25 A
-
Rated current 60°C25 A
-
Rated current 65°C25 A
-
Rated current 70°C25 A
Installation, mounting
-
Nominal tightening torque top terminal3.60 - 3.60 Nm
-
Nominal tightening torque down terminal3.60 - 3.60 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Dielectric strength value of power frequency2 kV
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated impulse withstand voltage Uimp IEC 60947-36,000 V
-
Max. operating voltage440 V
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules4
Compatibility
-
Suitable for DIN RailYes
Safety
-
Residual current typeF
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of output with screws, for massive conductors1 - 25 mm²
-
Cross-section of output with screws, for flexible conductors1 - 16 mm²
Power
-
Total power loss under IN1.98 W
Use conditions
-
Max. Altitude2,000 m
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations20,000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height85 mm
-
Width72 mm
-
Depth70 mm
