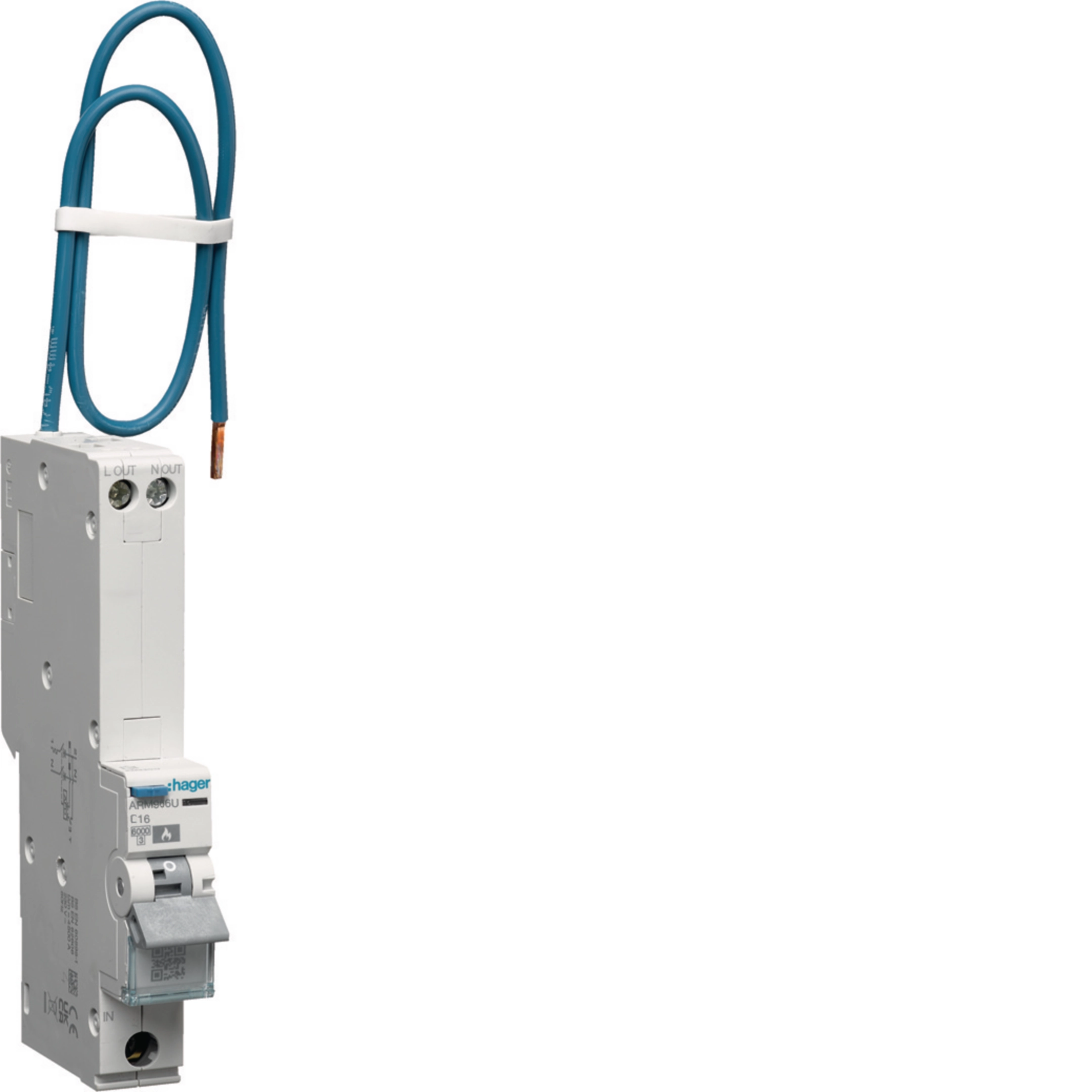

MCB with dangerous arc detection 1M 16A C curve 6kA ARM966U

Name: ARM966U
Brand: Hager
SKU: ARM966U1
Price: 173.5 GBP

EAN-Nr.

3250611048138

Packaging

1 piece

Price

£173.50

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

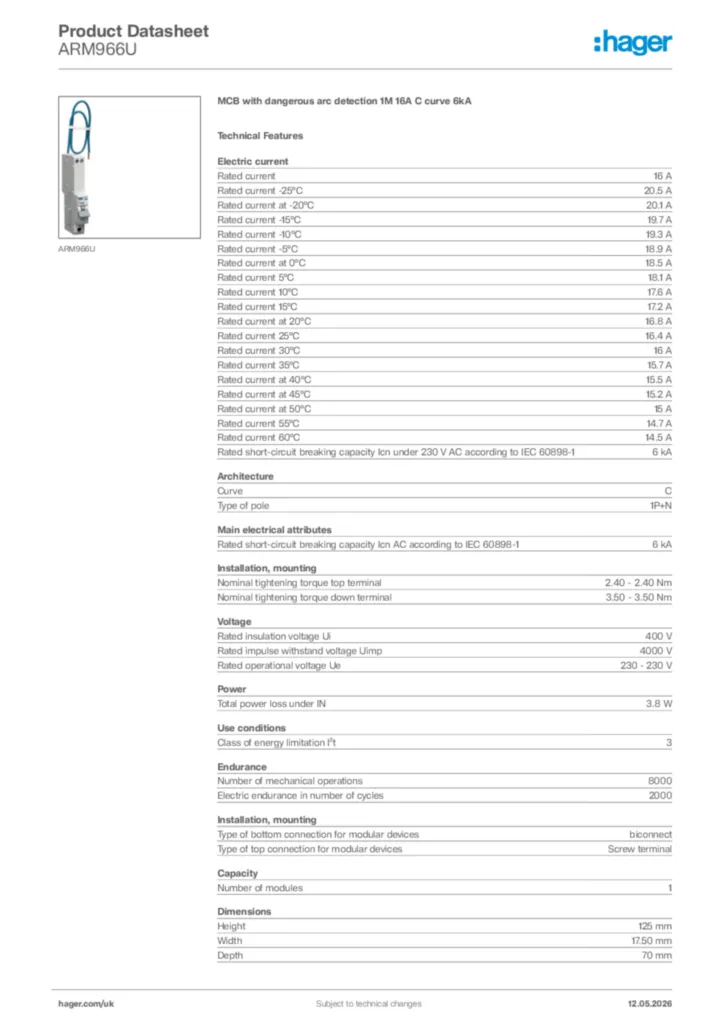

Download the sheet

Complete your system

Locking interlocking functions 2 products available

Technical characteristics

Rated current

16 A
Rated current -25°C

20.5 A
Rated current at -20°C

20.1 A
Rated current -15°C

19.7 A
Rated current -10°C

19.3 A
Rated current -5°C

18.9 A
Rated current at 0°C

18.5 A
Rated current 5°C

18.1 A
Rated current 10°C

17.6 A
Rated current 15°C

17.2 A
Rated current at 20°C

16.8 A
Rated current 25°C

16.4 A
Rated current 30°C

16 A
Rated current 35°C

15.7 A
Rated current at 40°C

15.5 A
Rated current at 45°C

15.2 A
Rated current at 50°C

15 A
Rated current 55°C

14.7 A
Rated current 60°C

14.5 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA

Curve

C
Type of pole

1P+N

Nominal tightening torque top terminal

2.40 - 2.40 Nm
Nominal tightening torque down terminal

3.50 - 3.50 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

400 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 230 V

Total power loss under IN

3.8 W

Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Number of mechanical operations

8,000
Electric endurance in number of cycles

2,000

Number of modules

1

Height

125 mm
Width

17.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
