The Hager Vector IP65 surface-mount enclosure, 2x12 modules (24M), provides robust outdoor distribution for residential and commercial circuits. UV-stable PC (RAL7035) with IK08 impact and Class II insulation ensures durability. Transparent single door, snap-on closure, no lock. 12 conduit inlets, supplied without cable entry glands. Rated 63 A, up to 400 V AC/1000 V DC. Ideal for wet, dusty or sunny sites.
EAN
3250616450455
VPE
1 piece
Enclosure Vector Surface IP65 1x12M Transparent Door Outdoor UV IK08 VE212SN
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Accessories/spare parts for terminals 9 product.page.accessories.products-available -
Push-in terminal 20 product.page.accessories.products-available -
Cleaning product 1 product.page.accessories.products-available -
Cable gland 5 product.page.accessories.products-available -
Cable gland shroud 2 product.page.accessories.products-available -
Cross-connector for terminal block 2 product.page.accessories.products-available
product.page.accessories.title-modal
-
VZ711
Temrinal base, volta, for distributor size 12M, golf, vector, accessory
-
VZ461Terminal support, Volta, QuickConnect, equipped, 1R
-
VZ462Terminal support, Volta, QuickConnect, equipped, 2R
-
VZ463Terminal support, Volta, QuickConnect, equipped, 3R
-
VZ464Terminal support, Volta, QuickConnect, equipped, 4R
-
VZ521PE/N-Terminal support, Volta, with brass Terminals 13 connections
-
VZ522PE/N-Terminal support, Volta, with brass Terminals 17 connections
-
VZ523PE/N-Terminal support, Volta, with brass Terminals 22 connections
-
VZ524PE/N-Terminal support, Volta, with brass Terminals 25 connections
-
KN10ETerminal, QuickConnect, earth, 10 connections
-
KN06PTerminal, QucikConnect, phase, 6 connections
-
KN10PTerminal, QuickConnect, phase, 10 connections
-
KN14PTerminal, QuickConnect, phase, 14 connections
-
KN18PTerminal, QuickConnect, phase, 18 connections
-
KN22PTerminal, QuickConnect, phase, 22 connections
-
KN26PTerminal, QuickConnect, phase, 26 connections
-
KN99PTerminal, QC, phase, jumper, 1 Set=10piece
-
KN06ETerminal, QC, earth, 6 connections
-
KN06NTerminal, QuickConnect, neutral, 6 connections
-
KN99E
Terminal, QC, earth, jumper, 1 Set=10piece
-
KN10NTerminal, QuickConnect, neutral, 10 connections
-
KN14ETerminal, QuickConnect, earth, 14 connections
-
KN14NTerminal, QuickConnect, neutral, 14 connections
-
KN18ETerminal, QuickConnect, earth, 18 connections
-
KN18NTerminal, QuickConnect, neutral, 18 connections
-
KN22ETerminal, QuickConnect, earth, 22 connections
-
KN22NTerminal, QuickConnect, neutral, 22 connections
-
KN26ETerminal, QuickConnect, earth, 26 connections
-
KN26NTerminal, QuickConnect, neutral, 26 connections
Technical characteristics
Connection
-
Number of conduit inlets12
Voltage
-
Nominal voltage400 - 400 V
-
Rated operational voltage in DC1000 - 1000 V
Installation, mounting
-
Suitable for outdoor usageYes
-
Mounting onSurface mounting
Electric current
-
Rated current IN63 A
Equipment
-
Number of rails2
-
Number of rows2
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules24
Functions
-
With conduit inletsYes
Dimensions
-
Height427 mm
-
Width310 mm
-
Depth151 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPolycarbonate (PC)
-
RAL code7035
-
ColourLight grey
-
Ultraviolet-resistantYes
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP65
-
Locking typeSnap on lock, Without lock
-
Glow wire test850 °C
-
Protection class with doorIP65
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

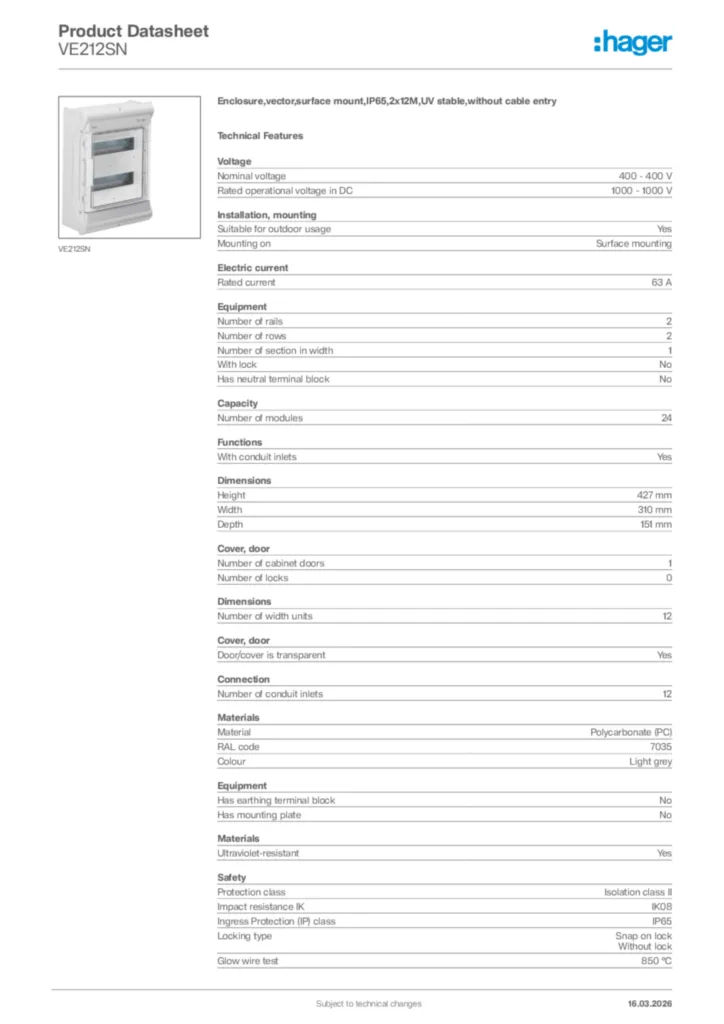

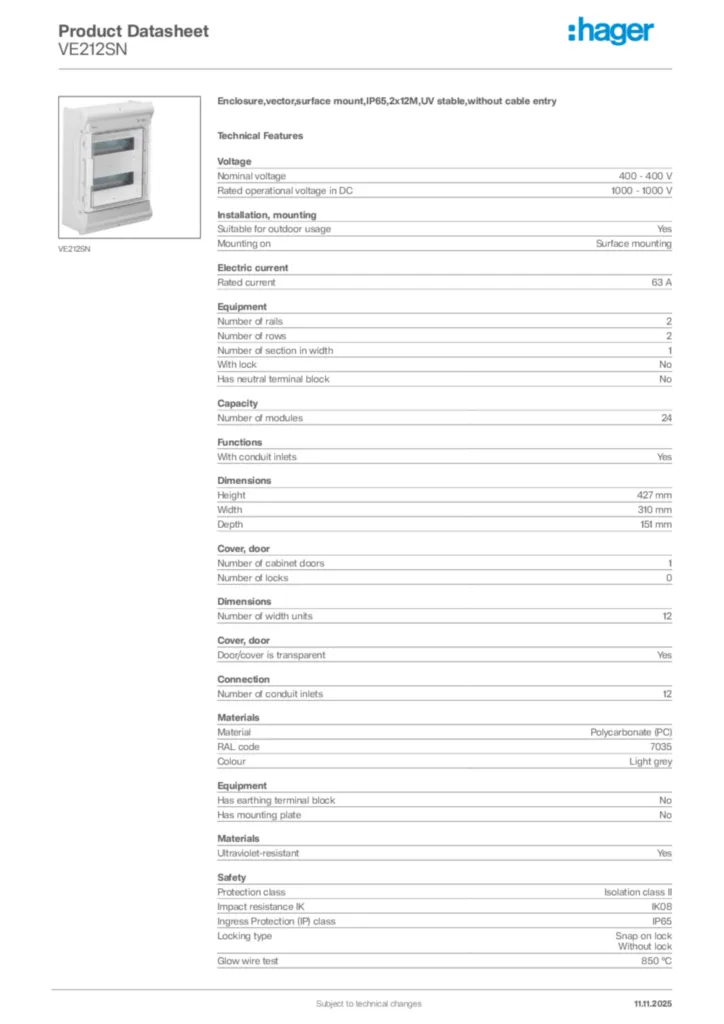

GeneratedProductDatasheet
