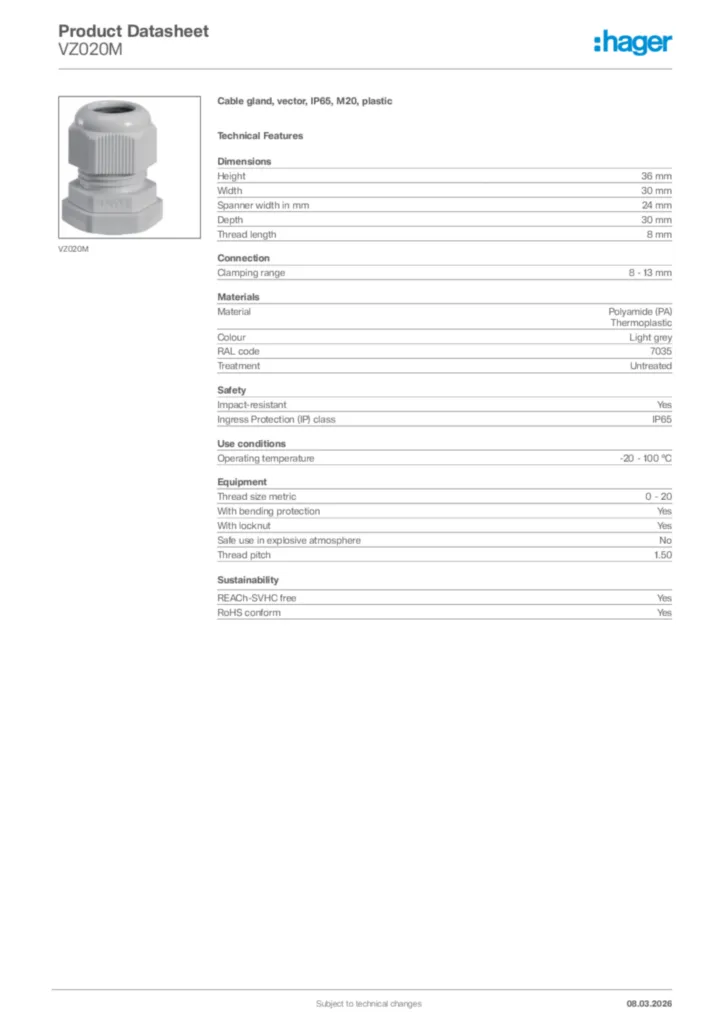

Cable gland, vector, IP65, M20, plastic VZ020M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 63 products available
Referenced by
-
VE110PNEnclosure, vector, flush mounted, IP65, 10M, UV-stable, with metric cable entry
-
VE312LEnclosure, vector, IP5x, 36Modules, Austria
-
VE318FEnclosure, vector, IP5x, 54M
-
VE118FEnclosure, vector, IP5x, 18M
-
VE318LEnclosure, vector, IP5x, 54Modules, version Austria
-
VE118PNEnclosure, vector, surface mounted, IP65, 18M, UV stable, with metric cable entry
-
VE412PNEnclosure, vector, surface mounted, IP65, 48M, UV stable, with metric cable entry
-
VE312PNEnclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry
-
VE212PNEnclosure vector, surface mounted, IP65, 2x12M, UV-stable, with metric cable entry
-
VE112PNEnclosure, vector, surface mounted, IP65, 1x12M, UV stable, with metric cable entry
-
VE218PNEnclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry
-
VE106PNEnclocure, vector, flush mounted, IP65, 6M, UV stable, with metric cable entry
-
VE103PNEnclocure, vector, flush mounted, IP65, 3M, UV stable, with metric cable entry
-
VE318SNEnclosure, vector, surface mounted, IP65, 54M, UV stable, without cable entry
-
VE218SNEnclosure, vector, surface mounted, IP65, 36M, UV stable, without cable entry
-
VE118SNEnclosure, vector, surface mounted, IP65, 1x18M, UV-stable, without cable entry
-
VE412SNEnclosure, vector, surface mounted, IP65, 48M, UV-stable, without cable entry
-
VE312SNEnclosure, vector, surface mounted, IP65, 36M, UV stable, without cable entry
-
VE212SNEnclosure, vector, surface mount, IP65, 2x12M, UV stable, without cable entry
-
VE112SNEnclosure, vector, surface mounted, IP65, 1x12M, UV stable, without cable entry
Technical properties
Dimensions
-
Height36 mm
-
Width30 mm
-
Spanner width in mm24 mm
-
Depth30 mm
-
Thread length8 mm
Connection
-
Clamping range8 - 13 mm
Materials
-
MaterialPolyamide (PA), Thermoplastic
-
ColourLight grey
-
RAL code7035
-
TreatmentUntreated
Safety
-
Impact-resistantYes
-
Ingress Protection (IP) classIP65
Use conditions
-
Operating temperature-20 - 100 °C
Equipment
-
Thread size metric0 - 20
-
With bending protectionYes
-
With locknutYes
-
Safe use in explosive atmosphereNo
-
Thread pitch1.50
